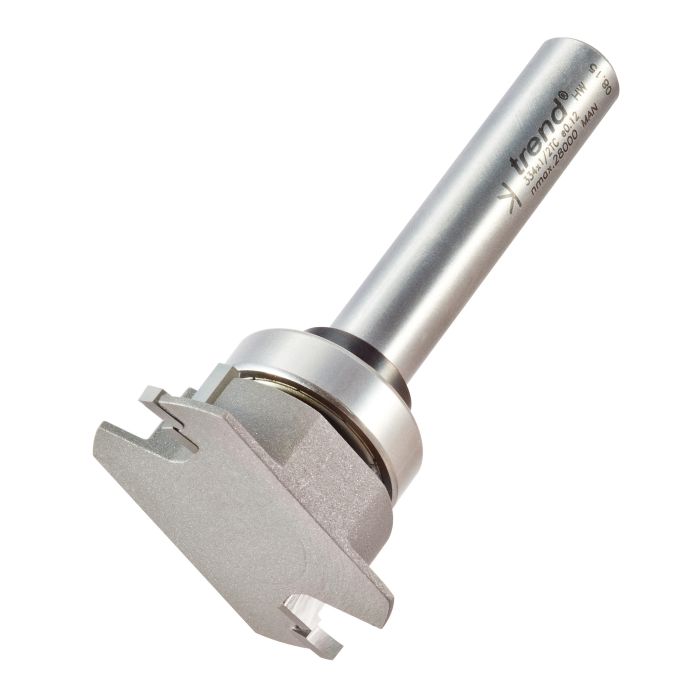

334X1/2TC - Aquamac 21 recesser 46.3mm diameter x 10.3mm cut
334X1/2TC
Recessing cutter will accommodate the Schlegel Aquamac 21 or Exitex Aquatex A10 seal.
- The cutter is designed for use with the seal in a wiping mode and comes complete with a guide bearing to reduce setting-up time and simplify machining operations.
- Ref. 334 is MEC mechanical feed only.
- D
- 46.3 mm
- D2
- 34.3 mm
- C
- 10.3 mm
- C2
- 2.7 mm
- OL
- 90 mm
- B
- 28.6 mm
- Shank Diameter
- 1/2 inch
For stationary machines at max. recommended speed 18,000 RPM
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
B29C | Bearings are shielded to prevent penetration of dust and grease packed for life.
|
£14.45 | ||
|
COLL/12 | Collar Packs are used for cutters with shank mounted bearings.
|
£3.28 |
Videos
Bearing Guided Cutter Video
Our video guide on how to use your bearing guided cutters, the different types and applications.
Instructions
Safety Sheets
Product Questions
B35C is the bearing required.
