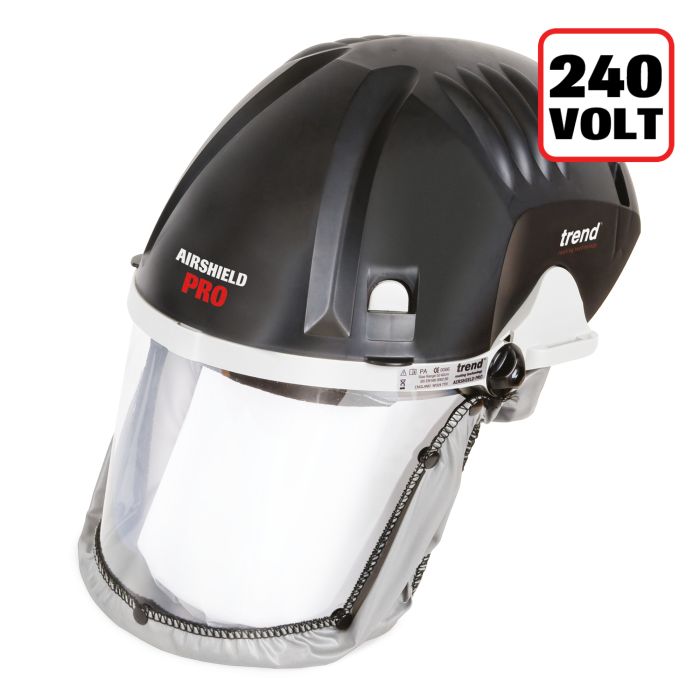

AIR/PRO - Airshield Pro PAPR APF 20 Powered Respirator 230V - UK & Eire Sale only
AIR/PRO
Battery powered respirator for use with all woodworking applications. UK plug version for UK & Eire sale only.
- Assigned Protection Factor APF20, offering greater protection over APF10.
- Suitable for use when machining MDF.
- Approved to standard BS EN 12941 TH2P-S.
- Approved to EN166.
- Optical class 1B3 for high speed particles - medium energy impact, liquid droplets and splashes.
- Features include:
- Combination face-seal and hood to improve protection.
- Motor positioned away from the sensitive area of the forehead to reduce noise and irritation.
- Audible low battery warning.
- Removable 8 hour Ni-MH battery.
- For UK & Eire sale only.
- Twin filters with efficiency of 98%.
- Click Here to download our respiratory protection selection guide
- COSHH Maintenance & Examination Record included - for additional documents please download below
All-In-One Battery Powered Respirator
APF40 Safety helmet for industrial rated head, eye and respiratory protection
Features
All in one powered respirator giving eye and respiratory protection with no trailing leads for safer operation when moving around the workplace.
For use in environments where fine airborne particles are present, dangers of flying debris or excessive noise levels.
No problems with misting, fogging or steaming up ensuring crystal clear vision at all times. Suitable for users with facial hair or spectacle wearers.
8 hour Ni-MH battery for all day use with audible low battery warning and on board battery charging.
Twin THP2 fine filter with 98% efficiency, suitable for use when machining MDF.
Rated to Optical class 1B3 for high speed particles - medium energy impact, liquid droplets and splashes.
Details
- Assigned Protection Factor APF20, offering greater protection over APF10.
- Suitable for use when machining MDF.
- Approved to standard BS EN 12941 TH2P-S.
- Approved to EN166.
- Optical class 1B3 for high speed particles - medium energy impact, liquid droplets and splashes.
- Combination face-seal and hood to improve protection.
- Motor positioned away from the sensitive area of the forehead to reduce noise and irritation.
- Twin filters with efficiency of 98%.
- Audible low battery warning.
- Removable 8 hour Ni-MH battery.
- For UK & Eire sale only.
- COSHH Maintenance & Examination Record included.
Related Products
Accessory Ear Defenders Now Available
Click here for more information on the Trend Safety Mask Range
Click Here to download our detailed respiratory protection selection guide.
- Rating
- DIY/Craftsman/Prof
- Airflow min.
- 160 l/min
- Airflow fully charged
- 200 l/min
- Size headband
- 52cm-62cm
- Motor sound level
- 70dB
- Battery
- 8hrs
- Weight
- 995g
- Total weight with battery
- 1091g
- Voltage
- 230 volt
- Charger plug type
- UK 3 pin
- Eye protection
- BS EN 166:2002 (Medium Energy Impact)
- Optical class
- 1
- Mechanical strength
- B - High speed particles, medium energy impact
- Field of use
- 3 - Liquid droplets and splashes
- Respiratory protection (NPF50)
- BS EN 12941 TH2P-S
- Assigned Protection Factor
- APF20
Please refer to HSE website for information on Respiratory Protective Equipment (RPE).
- End of life
- See below for Environmental Policy link
AIR/PRO units manufactured before June 2020 will require the new clip design for ear defenders to fit.
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
AIR/P/1 | 19 | TH2P-S filter pack for the AIRSHIELD PRO.
|
1 | £36.87 |
|
AIR/P/3C | 20 | Trend AirPro Visor Overlays - pack of 10
|
1 | £27.41 |
|
AIR/P/4 | 21 | 8 hour battery for the AIRSHIELD PRO.
|
1 | £59.22 |
|
AIR/P/5/UK | 22 | Battery charger for the AIRSHIELD PRO.
|
1 | £49.78 |
|
WP-AIR/P/01 | 01 | Replacement fan motor for the AIR/PRO. |
1 | £110.87 |
|
WP-AIR/P/02 | 02 | Replacement airflow indicator for the AIR/PRO. |
1 | £22.84 |
|
WP-AIR/P/03 | 03 | Replacement headcover and face seal for the AIR/PRO. |
1 | £61.21 |
|
WP-AIR/P/05 | 05 | Replacement switch and contact for the AIR/PRO. |
1 | £61.21 |
|
WP-AIR/P/07 | 07 | Replacement visor for the AIR/PRO. |
1 | £34.34 |
|
WP-AIR/P/10 | 10 | Replacement headband comfort pad for the AIR/PRO. |
1 | £10.74 |
|
WP-AIR/P/11 | 11 | Replacement pivot pin body for the AIR/PRO. |
2 | £5.74 |
|
WP-AIR/P/12 | 12 | Replacement pivot pin bolt for the AIR/PRO. |
1 | £6.52 |
|
WP-AIR/P/17 | 17 | Headband crown comfort pad to suit the AIR/PRO respirator. |
1 | £7.99 |
|
WP-AIR/P/18 | 18 | Replacement new style headband for the AIR/PRO. |
1 | £53.84 |
Videos
Airshield Pro Respirator Video - Demonstration
A demonstration of the Trend Airshield Pro Respirator.
Trend Airshield Pro Overview
Video demonstrating the Airshield Pro powered respirator.
Instructions
Safety Sheets
Spares Diagrams
Product Questions
The Airflow indicator supplied with the Air/Pro mask is a great tool to show the efficiency of the filter. It depends on how contaminated the enviroment is that your working in. Discolouration of the filter is also a good indication that the filter needs changing.
Yes you can.
The AIR/PRO can be used with grain dust.
The AIR/PRO is suitable when grinding metal.
No the AIR/PRO cannot be used in mining.
The AIR/PRO unit will give the user protection against dust and mold spores. For the sweeping up we would recommend that the filters and head cover-face seal are both changed to stop any cross contamination afterwards.
Soot is burnt coal or coke (carbon) in particulate form and the AIR/PRO filters are suitable for this job.
No the Airshield cannot be used for paint spraying.
It will provide full eye and face protection from chemical splashes but does not provide respiratory protection from liquid partials and toxic fumes. The AIRSHIELD PRO only provides respiratory protection from solid partials (dust).
The Airshield can be used with brick dust and also MDF dust.
The Airshield can be used when cutting and grinding sandstone. The standard filters should be used. The visor overlays should also be fitted to the visor.
Yes, the Airshield can be used when routing fibre glass (GRP).
Definitely do not use white spirit or anything similar as this will result in degrading of polycarbonate and reduction of protection level. Suggest only Isopropyl alcohol or the patient use of your thumb nail to clean off any residual adhesive from the overlays.
The Airshield can be used when powder coating as long as no solvents are used and the level of protection does not exceed 50 parts per million.
Clean internally and externally daily, visual inspection daily, charge battery pack daily, functional test daily, weekly and monthly. Dust from wood, grain, and cement may suit more frequent replacement of the filters. No filter should be left in the AIR/PRO for more than one month if in daily use or three months if used infrequently. A COSHH maintenance and record card is available on our downloads page.
The visor is made from polycarbonate plastic.
The batteries used are nickel cadmium and providing the charge and discharge cycles are observed the batteries will have no memory effect.
The Airshield battery voltage is 3.6 volt. The battery has three 1.2 volt cells in series. Each cell has a milliampere rating of 950mAh. Spare batteries are available, the part number is AIR/P/4.
The battery charger for the Airshield is 230 volt AC/DC, with an output of 4.35v DC.|The charger is for indoor use only, and is splash protected to IP20. Spare UK chargers can be ordered on part number AIR/5/UK. European chargers are part number AIR/5/EURO.
The face seal should be pulled in towards the face and away from the visor. Do not be overly worried about this. The Airshield is a powered visor and therefore the pressure inside the visor is greater than the exterior so it is not possible for dust to leak into the breathing zone.
No filter should be left in the AIR/PRO for more than one month if in daily use or three months if used infrequently.
The Airshield has been designed so that the air flow passes over the face and over the inside of the visor and is exhaled through the vents rearwards. This ensures there is a flow of air over the face and prevents the visor from misting.
The Air/Pro will protect against Covid, but the air expelled is not filtered and will not protect the people around you.
