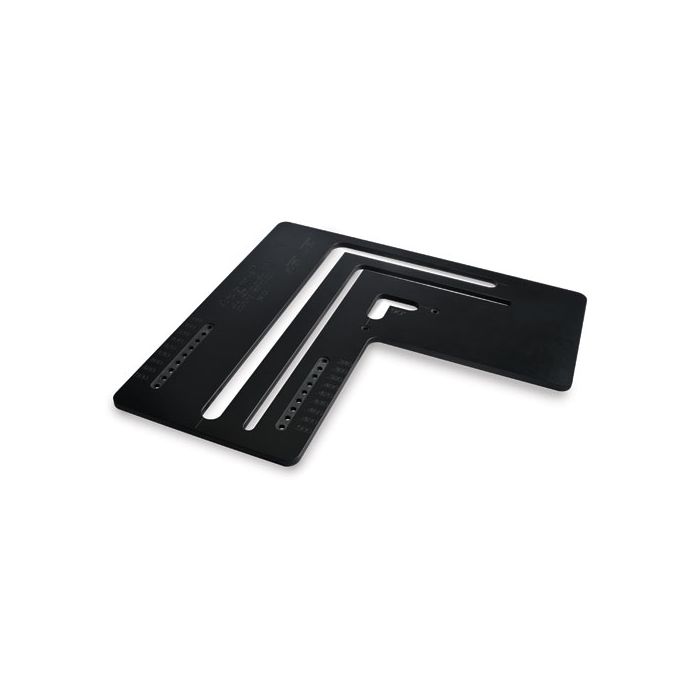

BS/JIG - Belfast sink jig

BS/JIG
£113.99
£94.99

For routing Belfast /Butler sinks.

  • Made from 12mm hardwearing CNC machined Compact Grade High Pressure Laminate.
  • Will also allow drip channel groove to be routed on the underside of the worktop.
  • Corner radius of 25mm. Maximum distance 630mm or 1030mm when overlapping slots.
  • For sinks 1050mm wide and 440mm to 515mm deep.
  • Twin pin location for stable and accurate lining up of jig. Preset holes for 340mm, 360mm, 380mm, 400mm, 420mm, 440mm, 480mm and 500mm width, a packing piece required for sizes in between.
  • Jig requires:
  • A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts.
  • A template guide bush with 30mm outside diameter for main recess and 16mm outside diameter for water drip groove.
  • A TCT router cutter with 12.7mm (1/2 inch) diameter and 50mm (2 inch) cut length for main recess and a radius cytter R2.5mm for the water drip groove.
  • Two 100mm (4 inch) throat clamps.
  • Supplied with clear & comprehensive instructions for use.
Length
625 mm
Width
590 mm
Thickness
12 mm
Weight
3.6kg
Product Image Product Ref Diagram No Description Quantity Required Price for 1
BSJ/PIN/4 - BS/JIG 10mm pin pack of 4 BSJ/PIN/4

Location pins for the BS/JIG belfast sink jig.

    £12.43
    WP-BS/01 - BS/JIG Line up block WP-BS/01

    Replacement line up datum block for BS/JIG.

      £22.07

      Videos

      Trend Belfast Sink Jig

      A jig for routing Belfast /Butler sinks. Ref: BS/JIG
