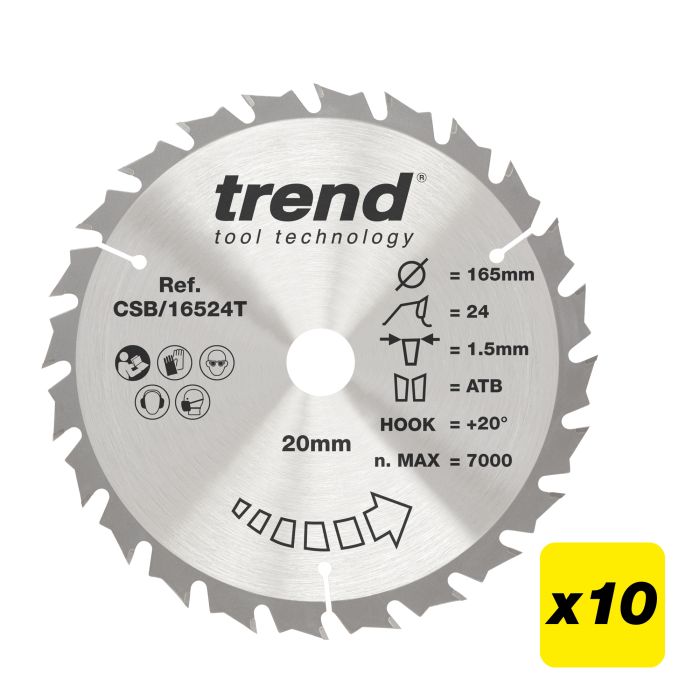

CSB/16524T/10 - Trend Wood Cordless Circular Saw Blade 165mm x 20mm x 24T, 10 Pack
A range of thin kerf tungsten carbide tipped blades for wood and wood-based materials. For use in cordless circular, plunge and table saws, and available in a range of finishes. Ideal for ripping and trimming softwood, hardwood, plywood, MDF and hardboard.
- Alternate top bevel (ATB) tooth form delivers a clean, safe and efficient cutting action in hand-held circular and table saws.
- Microgranular tungsten carbide tips (TCT) for optimum edge retention.
- Thin kerf reduces the amount of material cut to minimise dust and maximise cordless runtime.
- Precision ground alloy steel plate to maintain flatness.
- Body hardened and tempered to minimise deflection under load.
- Anti-kickback shoulders* limit feed-speeds to minimise kickback (low tooth count blades only).
- Expansion slots improve heat dissipation to minimise vibration, prevent kick-back and improve cut quality.
- Etched blade information to EN847 safety standard.
- Reamed bore ensures precise spindle fit.
- Compatible with Bosch Pro GKS 18V-57 G, Bosch Pro GKS 18V-57, Bosch Pro GKS 18V-57-2, Bosch Pro GKS 18V-57-2 L, Bosch Pro GKS 18V-LI, Bosch Pro GKS 55+ G, Bosch Pro GKS 55+ GCE, Bosch Pro GKS 165, Bosch Pro GKT 55 GCE, Dewalt DCS391, Dewalt DCS520, Dewalt DCS565, Dewalt DWE550, Dewalt DWS520, Einhell TE-CS 18/165-1 Li, Einhell TE-PS 165, Evolution F165CCSL, Evolution R165CCS-Li, Evolution R165CCSL, FLEX CS 62 18.0-EC C, Hikoki C18DBAL, Hikoki C1806DA, Hikoki C1806DB, Hikoki C3606DA, Hikoki C3606DB, Hikoki C3606DUM, Hyundai HY2183, Kress KUE12.9, Makita BSS611, Makita DHS660, Makita DHS661, Makita DHS680, Makita DSP600, Makita DSP601, Makita DSS610, Makita DSS611, Makita HS012G, Makita HS6601, Makita SP001G, Makita SP6000, Metabo KS 18 LTX 57, Metabo KS 18 LTX 66 BL, Metabo KT 18 LTX 66 BL, Metabo MKS 18 LTX 58, Milwaukee M18 FPS55
Cordless TCT Sawblades
A range of Tungsten Carbide Tipped blades for crosscutting & ripping wood and wood-based materials using cordless mitre and circular saws
Cordless Timber Universal Sawblades
Features
Microgranular Tungsten Carbide (TCT) Tips are silver-brazed and precision-ground for optimum edge retention and cut quality.
Alternate Top Bevel (ATB) Profile with Positive Hook delivers an efficient cutting action for fast stock removal.
Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection.
Expansion Slots reduce noise and vibration and assist with heat dissipation.
Reamed Bore ensures precise spindle fit.
Etched Blade Information to EN847 safety standard.
Detail
- Microgranular Tungsten Carbide (TCT) Tips silver-brazed and precision-ground for optimum edge retention and cut quality.
- Alternate Top Bevel (ATB) Profile with a positive hook delivers an efficient cutting action for fast stock removal. A combination variant with an Alternate Top Bevel +Raker (ATBR) Profile with a positive hook is also available.
- Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection under load for assured accuracy.
- Expansion Slots reduce noise and vibration, and assist with heat dissipation to prevent warping to maximise cut quality.
- Thin Kerf reduces the amount of material cut to minimise dust and maximise cordless runtime.
- Anti-Kickback Shoulders prevent deflection and limit the feed-speed to minimise kickback.
- Etched Blade Information to EN847 safety standard.
- Reamed Bore ensures precise spindle fit.
- D
- 6 1/2 inches
- D
- 165 mm
- Bore
- 20 mm
- Kerf
- 1.5 mm
- Plate thick
- 1.0 mm
- No. of Teeth
- 24
- Tooth form
- ATB
- Hook
- 15 degrees
- Quick Selector No.
- T8B.2
- Colour Code
- Red
- Type
- Combination
- Cut Finish
- Medium
Dewalt DC390, DWE007, DCS391, DCS391N
- Max rpm
- 7000
