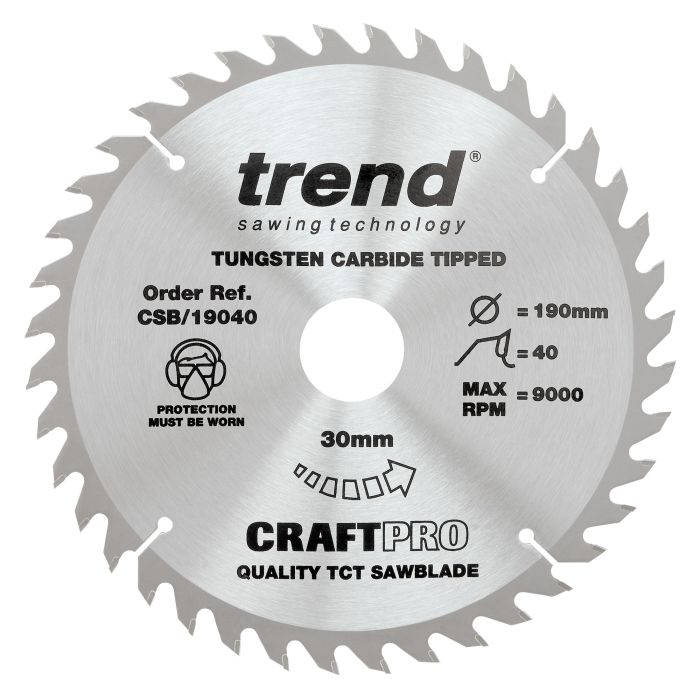

CSB/19040 - The Craft Pro 190mm diameter 30mm bore 40 tooth general purpose saw blade for hand held circular saws.

Name: CSB/19040 - The Craft Pro 190mm diameter 30mm bore 40 tooth general purpose saw blade for hand held circular saws.
SKU: CSB/19040
Price: 45.49 GBP
Availability: InStock

CSB/19040

£45.49

£37.91

Add to Wish List

Details

A range of Tungsten Carbide Tipped Circular Sawblades designed for a professional finish in soft wood, hard wood, plywood, soft fibre, plasterboard stone, fibre board, cement bonded board and particle board.

Reamed bore to ensure precise fit to spindle.
Silverbraze to ensure tip is bonded securely to body.
Body hardened and tempered to maintain trueness. Laser etched on reverse to European standard EN847-1/2.
The Trend name for traceability and a guarantee of quality.
High grade alloy steel plate body precision ground to maintain flatness.
Microgranular Tungsten Carbide Tipped to allow cutting of abrasive materials.

Detail

Wood TCT Sawblades

A range of Tungsten Carbide Tipped blades for wood and wood-based materials using circular, plunge and table saws. Ideal for ripping sheet material such as softwood, hardwood, plywood, MDF and hardboard.

Tungsten Carbide Tips

Precision Ground Alloy Steel Body

Hardened & Tempered for Optimum Accuracy

High Perfomance & Long Life

Precision Bore

Overview
Click the tabs below to see each product's details

Features

Microgranular Tungsten Carbide (TCT) Tips are silver-brazed and precision-ground for optimum edge retention and cut quality.

Alternate Top Bevel (ATB) Profile with Positive Hook delivers an efficient cutting action for fast stock removal.

Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection.

Expansion Slots reduce noise and vibration and assist with heat dissipation.

Reamed Bore ensures precise spindle fit.

Etched Blade Information to EN847 safety standard.

Detail
Click the tabs below to see each product's details

Microgranular Tungsten Carbide (TCT) Tips silver-brazed and precision-ground for optimum edge retention and cut quality.
Alternate Top Bevel (ATB) Profile with a positive hook delivers an efficient cutting action for fast stock removal.
Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection under load for assured accuracy.

Expansion Slots reduce noise and vibration, and assist with heat dissipation to prevent warping to maximise cut quality.
Etched Blade Information to EN847 safety standard.
Reamed Bore ensures precise spindle fit.

Microgranular Tungsten Carbide (TCT) Tips silver-brazed and precision-ground for optimum edge retention and cut quality.
Alternate Top Bevel (ATB) Profile with Positive Hook delivers an efficient cutting action for fast stock removal.
Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection under load for assured accuracy.
Expansion Slots reduce noise and vibration, and assist with heat dissipation to prevent warping to maximise cut quality.

Thin Kerf reduces the amount of material cut to minimise dust and maximise cordless runtime.
Anti-Kickback Shoulders prevent deflection and limit the feed-speed to minimise kickback.
Etched Blade Information to EN847 safety standard.
Reamed Bore ensures precise spindle fit.

Microgranular Tungsten Carbide (TCT) Tips silver-brazed and precision-ground for optimum edge retention and cut quality.
Alternate Top Bevel +Raker (ATBR) Profile with Positive Hook optimises cutting speed and cut finish for great performance in a variety of materials.
Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection under load for assured accuracy.
Expansion Slots reduce noise and vibration, and assist with heat dissipation to prevent warping to maximise cut quality.

Thin Kerf reduces the amount of material cut to minimise dust and maximise cordless runtime.
Anti-Kickback Shoulders prevent deflection and limit the feed-speed to minimise kickback.
Etched Blade Information to EN847 safety standard.
Reamed Bore ensures precise spindle fit.

Spec

D: 7 1/2 inches
D: 190 mm
Bore: 30 mm
Kerf: 2.6 mm
Plate thick: 1.7 mm
No. of Teeth: 40
Tooth form: ATB
Hook: 15 degrees
Quick Selector No.: 15
Colour Code: Red
Type: Combination
Cut Finish: Medium
Max rpm: 9000

Customer Review

Spares

Product Image

Product Ref

Diagram No

Description

Quantity Required

Price for 1

CSB/BW15A

Craft Pro 30mm to 20mm reducing bush - for saw blades

1.5mm thick 30mm outside diameter reducing washer with 20mm internal bore.
Allows 30mm bore blades with 1.5mm thick plates to be fitted to compatible saws with 20mm spindle fittings.
For use with 190 - 235mm diameter Craft Pro blades.
Precision reamed for maximum safety. Allows blades to be used on different tools as needed.
Maximises blade diversity across different working needs.

£3.18

CSB/BW45A

Craft Pro 30mm to 16mm reducing bush - for saw blades

1.5mm thick 30mm outside diameter reducing washer with 16mm internal bore.
Allows 30mm bore blades with 1.5mm thick plates to be fitted to compatible saws with 16mm spindle fittings.
For use with 190 - 235mm diameter Craft Pro blades.
Precision reamed for maximum safety. Allows blades to be used on different tools as needed.
Maximises blade diversity across different working needs.

£3.18

Videos & Downloads

Videos

Trend Craft Pro Saw Blade - CSB/19040

Tungsten Carbide Tipped Circular Sawblade designed for a professional finish in soft wood, hard wood, plywood, soft fibre, plasterboard stone, fibre board, cement bonded board and particle board.

Circular Sawblade Maintenance Guide Video

Trend Circular Saw Blade Maintenance Guide.

Trend Craft Pro Saw Blades - A Solution for Every Machine

A range of Tungsten Carbide Tipped Circular Saw Blades designed for a professional finish in soft wood, hard wood, plasterboard, stone fibre board and particle board.
