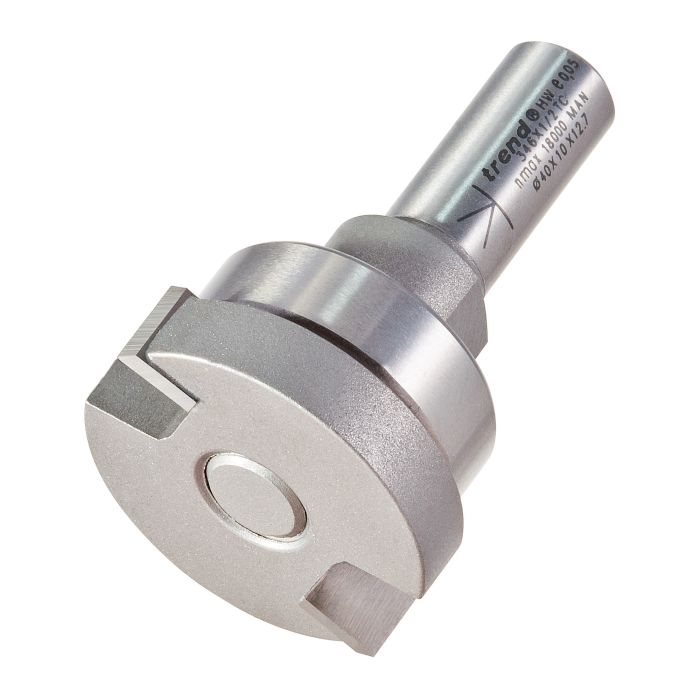

346X1/2TC - Intumescent cutter 10mm x 40mm

346X1/2TC
£132.96
£110.80

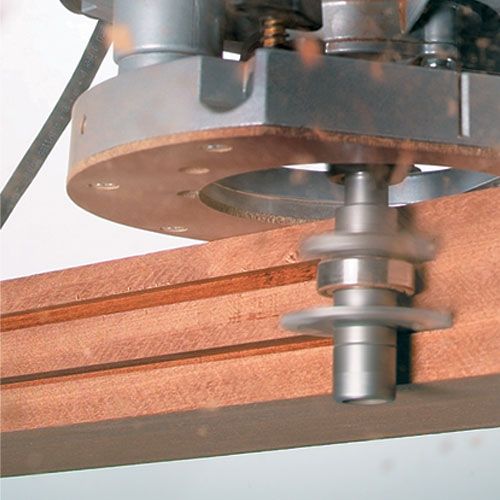

Bearing guided intumescent strip cutter for routing the groove for intumescent strip in a frame or door.

  • A range of sizes available to suit 4mm thick strip from 10mm to 25mm width.
  • Intumescent strip is used to create an effective barrier to both fire and smoke.
  • Choose alternative bearings to suit other thicknesses of intumescent strip.
D
40 mm
C
10 mm
B
32 mm
E
4 mm
OL
60 mm
L
41 mm
Shank Diameter
1/2 inch
Fire check
30 minutes
Product Image Product Ref Diagram No Description Quantity Required Price for 1
33/20X1/2 - Arbor for M12 bore groover 33/20X1/2 A

Slotters with M12x1.0 threaded bore enables flush recessing in the corner such as for weather proofing.

  • Spacers are supplied to ensure the minimal threaded arbor protrudes below the slotter. Arbor 33/20 enables 12mm bore guide bearings to be fitted above slotter for self-guiding work.
1 £20.90
34/15TC - Slotter 10mm kerf M12mm bore 34/15TC D

These slotters have a M12 threaded boss to enable them to be threaded onto the arbor without the need for a securing nut.

    1 £83.07
    B32 - Bearing 32mm diameter 12mm bore B32 B

    Bearing for slotting systems.

    • Ball bearings should be wiped clean, not dipped in solvent.
    • Prevent resin build-up by cleaning with wire brush.
    1 £14.45

    Videos

    Bearing Guided Cutter Video

    Our video guide on how to use your bearing guided cutters, the different types and applications.

    Product Questions

    34/15TC.

    ... Read more

    To work from the face of the door use cutter 346X1/2TC, or if you want to work on the edge of the door use cutter 3/6X1/4TC.

    ... Read more
