T14

2300W ½” VARIABLE SPEED WORKSHOP ROUTER

High-performance plunge router with advanced safety features, engineered to deliver reliable, fast, accurate cuts. Perfect for hand-held and Router Table use.

Overview

t14 Annotated Featurest14 Annotated Features

Key Features

80mm plunge depth80mm plunge depth
precision centering systemprecision centering system
top-mount extractiontop-mount extraction
auto-lock plungeauto-lock plunge

Features

powerful 2300w motorpowerful 2300w motor

UPRATED MOTOR delivers consistently high torque to prevent overloading in demanding situations and a faster top speed to produce a finer finish in high-speed applications.

SOFT START prevents tool movement on start-up for a smoother and safer user experience .

UPRATED MOTOR delivers consistently high torque to prevent overloading in demanding situations and a faster top speed to produce a finer finish in high-speed applications.

SOFT START prevents tool movement on start-up for a smoother and safer user experience .

80MM PLUNGE DEPTH is ideal for deep cutting applications. Perfect for lock jigs, worktop joints and timber profiling.

PHOSPHOR BRONZE BUSHINGS are corrosion resistant, durable and self-lubricating to prevent racking and deliver a smooth, accurate plunge action.

80mm Plunge Depth80mm Plunge Depth
Automatic Shut-offAutomatic Shut-off

ANTI-RESTART PROTECTION prevents the router from unexpected start-up if the trigger lock-on switch is engaged, and the power supply is turned on or temporarily interrupted & restored.

In this event, the trigger lock-on switch must be disengaged before the router can restart.

IEC 62841-2-17:2017 compliant.

ANTI-RESTART PROTECTION prevents the router from unexpected start-up if the trigger lock-on switch is engaged, and the power supply is turned on or temporarily interrupted & restored.

In this event, the trigger lock-on switch must be disengaged before the router can restart.

IEC 62841-2-17:2017 compliant.

SUPPLIED WITH A ROUTER TABLE POWER TAKE-OFF SWITCH that is connected to the port inside the handle. Without this switch, users would need to reach under the table to operate the router.

This would be incredibly dangerous and due to the Automatic power shut off feature, which would prevent a typical NVR (No Volt Release) switch from being used. Therefore, all T14s come supplied with a router table power take-off switch, this feature is currently unique to Trend in the UK.

Router Table Saftey SwitchRouter Table Saftey Switch
2-In-1 Plunge Adjuster2-In-1 Plunge Adjuster

THE DETACHABLE ADJUSTER can be used from above AND below the router, in both table and hand-held mode.

When mounted to a table, the adjuster is conveniently positioned above the guide fence.

Each 360° turn gives 1.0mm of vertical movement.

THE DETACHABLE ADJUSTER can be used from above AND below the router, in both table and hand-held mode.

When mounted to a table, the adjuster is conveniently positioned above the guide fence.

Each 360° turn gives 1.0mm of vertical movement.

TREND BASE CONFIGURATION  is a standardised fixing pattern of holes that allow routers to be attached to a range of compatible tables, jigs and accessories.

Trend Base ConfigurationTrend Base Configuration
Precision centering systemPrecision centering system

PRECISION CENTERING SYSTEM  contains a unique guide bush centring pin and adaptor plate ensures perfect concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.



PRECISION CENTERING SYSTEM  contains a unique guide bush centring pin and adaptor plate ensures perfect concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.

Precision centering system

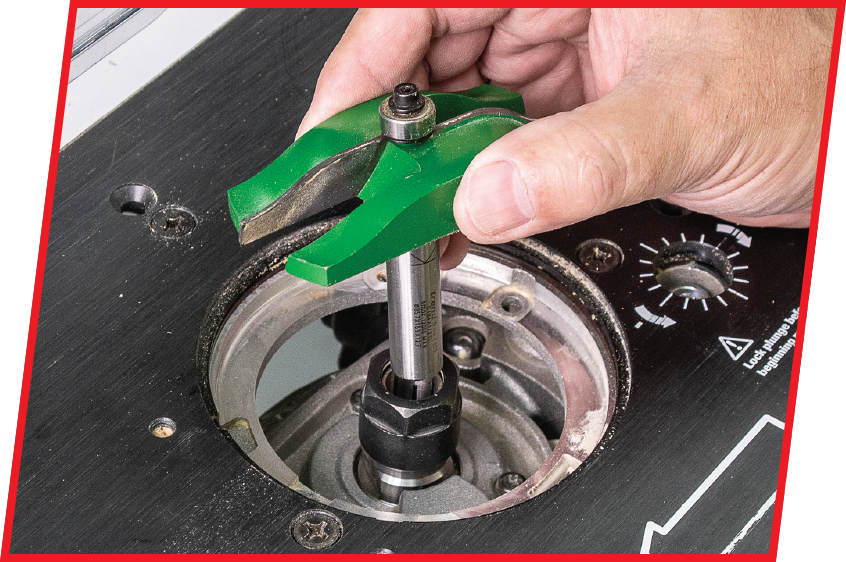

When used in a Router Table, cutters need to be able to pass through the base plate when adjusting plunge height.

THE T14 BASE HAS AN EXTRA-WIDE 75MM APERTURE to accommodate our over-size cutters, such as panel raisers.

Extra Wide ApertureExtra Wide Aperture
Auto-locking PlungeAuto-locking Plunge

AUTO-LOCK is temporarily disengaged whilst the lever is held in this position, and router can plunge. When the lever is released, the plunge position will be locked. Perfect for fast repositioning and surface registration when used with a jig.

Auto-lock is turned off, allowing the user to control the plunge position. Perfect for accurate repositioning and depth post setting.

Re-engages auto-lock and returns the lever to the resting position. The plunge lever self-tightens, so vibration caused by heavy loads will not affect the accuracy of the depth setting.

AUTO-LOCK is temporarily disengaged whilst the lever is held in this position, and router can plunge. When the lever is released, the plunge position will be locked. Perfect for fast repositioning and surface registration when used with a jig.

Auto-lock is turned off, allowing the user to control the plunge position. Perfect for accurate repositioning and depth post setting.

Re-engages auto-lock and returns the lever to the resting position. The plunge lever self-tightens, so vibration caused by heavy loads will not affect the accuracy of the depth setting.

If using a router for both table and hand-held work, continually mounting and unmounting the unit with machine screws becomes tiresome.

Our Trend Base Configuration can be used with our Cam-Lock Quick-Release Mounts (T11/JT/KIT), making this process quick and easy.

Router Table Cam LocksRouter Table Cam Locks
7 level varaible speed7 level varaible speed

VARIABLE SPEED CONTROL dial features 7 increments ranging from 9,000rpm to 22,000rpm, which gives the user total control across a wider range of cutter styles, cutter sizes, materials, and applications.

Variable speed control dial is recessed, to prevent accidental adjustment.

Rating Label lists speed ratio chart for easy cross- reference to the cutter shank to ensure cutters are used safely, and at optimum speed.

VARIABLE SPEED CONTROL dial features 7 increments ranging from 9,000rpm to 22,000rpm, which gives the user total control across a wider range of cutter styles, cutter sizes, materials, and applications.

Variable speed control dial is recessed, to prevent accidental adjustment.

Rating Label lists speed ratio chart for easy cross- reference to the cutter shank to ensure cutters are used safely, and at optimum speed.

GIVES USERS 360° VISIBILITY and prevent extraction hoses from ‘snagging’ on jigs and materials, the extraction connection point is conveniently mounted at the top of the router.

ENHANCED CYCLONE DUST ADAPTER efficiently pulls debris away from the work area to maintain visibility, keep cuts clean and prolong cutter life.

Top Mount ExtractionTop Mount Extraction
Ergonomic Incline HandlesErgonomic Incline Handles

FORWARD-FACING ANGLE supports a natural wrist position, reduces strain, and increases control when routing with arms outstretched.

SCULPTED HANDLE PROFILE with rubber over-mould provides improved comfort and control.

FORWARD-FACING ANGLE supports a natural wrist position, reduces strain, and increases control when routing with arms outstretched.

SCULPTED HANDLE PROFILE with rubber over-mould provides improved comfort and control.

QUICK SET DEPTH POST - Rack & Pinion depth post with indexed 1mm increments and zeroing function for fast, easy adjustment.

MICROMETER FINE HEIGHT ADJUSTER - 0.1mm increments with an easy-to-read display for precision depth adjustments.

QUICK SET DEPTH POSTQUICK SET DEPTH POST
Intergrated Power TriggerIntergrated Power Trigger

BUILT INTO THE ERGONOMIC HANDLE - the power trigger and lock-on switch are operated without releasing the grip, which helps to prevent accidental movement and kick-back when turning the router on and off.

BUILT INTO THE ERGONOMIC HANDLE - the power trigger and lock-on switch are operated without releasing the grip, which helps to prevent accidental movement and kick-back when turning the router on and off.

TWIN, FLICKER-FREE LEDS improve safety and accuracy in low-light situations where work lighting is poor or the use of a jig is casting shadows.

IMPROVED VISIBILITY allows users to accurately position the cutter prior to engaging the material and making costly errors.

Lights also indicate when power to the tool is ‘live’, which is useful in combination with the Automatic Shut-Off feature.

Automatic LEDsAutomatic LEDs

Videos

More Details

Micro-Adjustable Side FenceMicro-Adjustable Side Fence

Micro-Adjustable Side Fence with adjustable facings and 0.1mm increments for accurate edge rebating, grooving and moulding.

Phosphor Bronze BushingsPhosphor Bronze Bushings

Phosphor Bronze Bushings are corrosion resistant, durable and self-lubricating to prevent racking and deliver a smooth, accurate plunge action.

Anti-Scratch Base PlateAnti-Scratch Base Plate

Anti-Scratch Base Plate low-friction, screw-mounted, replaceable phenolic base plate. Provides smooth movement of router over material.

Integrated Router RestIntegrated Router Rest

Integrated Router Rest provides users with a safe way of changing cutters whilst preventing debris from entering motor vents.

ER Style ColletER Style Collet

ER Style Collet features a double-locking safety feature to prevent accidental cutter ejection and a multi-slit profile for concentric clamping to the cutter shank.

Wide Base ApertureWide Base Aperture

Wide Base Aperture to suit large profile and jointing cutters.

3-Position Rotating Turret3-Position Rotating Turret

3-Position Rotating Turret is used to pre-set plunge depth limits for fast, repeatable batch and stepped cutting.

Plunge Depth LimiterPlunge Depth Limiter

Plunge Depth Limiter is easy to set and prevents over-cutting.

Spindle LockSpindle Lock

Spindle Lock for quick and easy router cutter changes.


Key Applications

Router Table Use

Routing Narrow MaterialsRouting Narrow Materials

Routing Narrow Materials where use of a router side fence isn’t practical or there is not enough stock to safely support the router whilst cutting.

Use of Extra-Wide CuttersUse of Extra-Wide Cutters

Use of Extra-Wide Cutters such a Panel Raisers, where use in a hand-held router would be dangerous.

Repetitive RoutingRepetitive Routing

Repetitive Routing where clamping/unclamping material for hand-held routing wastes time.

General Use

Kitchen fitting applications including worktop jointing, draining grooves, hob and sink recesses and carcass alteration.

Fast, accurate & heavy duty trenching work including lock and latch fitting, staircase production and general purpose carpentry with long & wide cutters.

Hand-held routing and edge moulding applications including precision matched recesses for intumescent fire door strips and rebates.

Featured Products

T14

2300W ½” Variable Speed Workshop Router

High-performance plunge router with advanced safety features, engineered to deliver reliable, fast, accurate cuts. Perfect for hand-held and Router Table use.

T14EK (240V)


T14EK/EURO (230V)

Supplied with Type C (Euro) Plug. For sale in Europe only.


Other Featured Products


Explore our Extensive Range of Router Cutters

Product Specifications

Product Details

  • Powerful 2300W Motor delivers consistently high power, torque and speed, and features soft-start to prevent kick-back.
  • 80mm Plunge Depth is deal for deep cutting applications. Perfect for lock jigs, worktop joints and timber profiling.
  • Anti-Restart Protection prevents the router from accidental start-up if the trigger lock-on switch is engaged, and the power supply is lost and restored or interrupted.
  • Router Table Safety Switch bypasses the Automatic Power Shut Off feature and replaces the need for a typical NVR (No Volt Release) switch.
  • 2-in-1 Plunge and Router Table Height Adjuster can be used from above AND below the router, in both table and hand-held mode. Each 360° turn gives 1.0mm adjustment.
  • Trend Base Configuration includes a standardised fixing pattern of holes that allow routers to be attached to a range of compatible tables, jigs and accessories.
  • Precision Centring System features a unique guide bush centring pin and adaptor plate that ensures perfect concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.
  • Auto-Lock Plunge Lever allows users to quickly, accurately and safely reposition the plunge position without releasing the handles.
  • Router Table Cam-Lock Quick-Release Mounts make mounting and unmounting the router quick and easy.
  • Extra-Wide 75mm Base Aperture to accommodate over-size cutters, such as panel raisers, when used with a Router Table.
  • 7-Level Variable Speed Control ranges from 9,000 to 22,000rpm, giving the user total control across a range of cutters, materials, and applications.
  • Top-Mount Cyclone Extraction with enhanced dust adapter efficiently clears debris to give users 360° visibility and prevent extraction hoses from ‘snagging’.
  • Ergonomic Inclined Handles support a natural wrist position, reduce strain, and increase control when routing with arms outstretched.
  • Quick-Set Depth Post with rack & pinion 1.0mm indexed increments and zeroing function for fast, easy adjustment.
  • Micrometer Fine Height Adjuster features 0.1mm increments and an easy-to-read display for precision depth adjustment.
  • Integrated Power Trigger prevents accidental movement and kick-back when turning the router on and off.
  • Micro-Adjustable Side Fence with adjustable facings and 0.1mm increments for accurate edge rebating, grooving and moulding.
  • Automatic LED Work Lights allow users to accurately position the cutter prior to engaging the material and making costly errors in low-light situations.
  • Phosphor Bronze Bushings are corrosion resistant, durable and self-lubricating to prevent racking and deliver a smooth, accurate plunge action.
  • Anti-Scratch Base Plate Low-friction, screw-mounted, replaceable phenolic base plate.
  • Integrated Router Rest provides users with a safe way of changing cutters whilst preventing debris from entering motor vents.
  • ER Style Collet features a double-locking safety feature to prevent accidental cutter ejection and a multi-slit profile for concentric clamping to the cutter shank.

Explore each feature in detail below

Product Includes

Side Fence

Guide Bush Plate

30mm Guide Bush

22mm Spanner

Blow Molded Case

Power Switch

Collet

 Guide Bush Pin

 Top-Mount Extraction Adapter

Cyclone Dust Adapter

2-In-1 Height Adjuster

Specifications

Rating

Professional/Trade

Voltage

240V

Plunge stroke

0 - 80mm

Power input

2300W

Standard collet dia.

1/2"

No load speeds

9,000-22,000rpm

Dust spout size ID

35mm

Guide bush dia. supplied

30mm

Cutter diameter max. (table mounted)

85mm

Cutter diameter max. (hand held)

50mm

Base aperture

75mm

Rod diameter

10mm

Rod length

360mm

Rod Centers

110mm

Weight

6.5Kg

Sound pressure Lpa

95.1 dB(A)1

Acoustic pressure Lwa

106.1 dB(A)2

Hand arm vibration

< 2.1m/s²

End of life
