Professional Worktop Jigs

Professional Universal Worktop 700mm & 950mm Routing Jigs

Front Edge Alignment Technology

Cut-Line
Offset Gauges

Narrow Inset
System

Preset Connector Bolt Recesses

Key Applications

E

H

T


Features

Front Edge Alignment Technology replaces traditional setup pins and accurately positions the jig directly to the start of the female mitre joint, for unrestricted worktop widths.

Narrow Inset System utilises the Front Edge Alignment device* and Inset Gauges** to accurately deliver 3mm and 10mm insets.

Cut-line offset Gauges to account for the 8.65mm cutter-to-guide bush offset and position the jig directly to the male cut line, giving highly accurate results for both square and out-of-square installations.

Preset Connector Bolt Recesses accommodate all standard worktop bolt sizes, including Zipbolt and Unika Slimline connection bolts.

Indexed Backsets for 600, 610, 616, 620, 635, and 700mm (900 & 950mm for 950 jig) wide worktops allow the female joint to be set up quickly.

R100mm, R40mm and 45° Corners for edge finishing.

35mm Hinge / ¾” BSP Recess for surface-mount monobloc tap and concealed hinge installation.

CNC-Machined Compact Grade HPL provides precision, strength and durability

400mm Radius for breakfast bar and peninsula trimming.

90° Straight Cuts for skimming and trimming.


Details

  • Front Edge Alignment Technology replaces traditional setup pins and accurately positions the jig directly to the start of the female mitre joint, for unrestricted worktop widths.

  • Narrow Inset System utilises the Front Edge Alignment device* and Inset Gauges** to accurately deliver 3mm and 10mm insets.
  • Cut-line offset Gauges to account for the 8.65mm cutter-to-guide bush offset and position the jig directly to the male cut line, giving highly accurate results for both square and out-of-square installations.
  • Preset Connector Bolt Recesses accommodate all standard worktop bolt sizes, including Zipbolt and Unika Slimline connection bolts.
  • Indexed Backsets for 600, 610, 616, 620, 635, and 700mm (900 & 950mm for 950 jig) wide worktops allow the female joint to be set up quickly.

  • R100mm, R40mm and 45° Corners for edge finishing.
  • 35mm Hinge / ¾” BSP Recess for surface-mount monobloc tap and concealed hinge installation.
  • CNC-Machined Compact Grade HPL provides precision, strength and durability.
  • 400mm Radius for breakfast bar and peninsula trimming.
  • 90° Straight Cuts for skimming and trimming.

Featured Products

KWJ700/PRO

Professional Universal Worktop Routing Jig for Worktops up to 700mm

F

KWJ950/PRO

Professional Universal Worktop Routing Jig for Worktops up to 950mm

Fl




Related Products

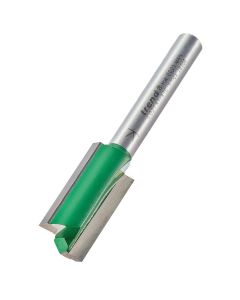

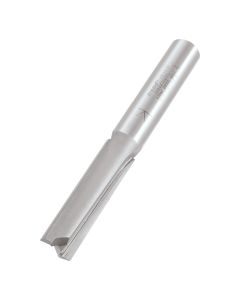

Explore our Extensive Range of Router Cutters
