Group

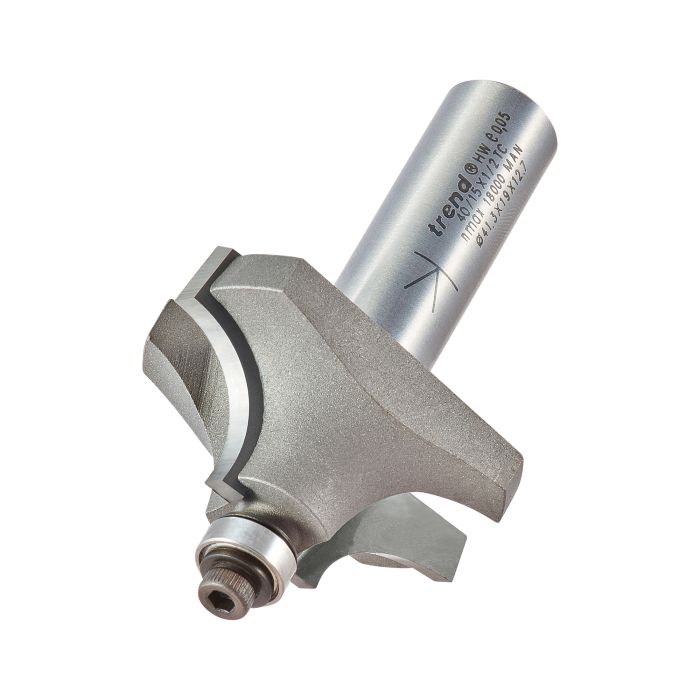

40/15X1/2TC - Bearing guided ovolo cutter 12.7mm radius

40/15X1/2TC
£79.24
£66.03

Supplied with alternative bearings to produce a rounding over and two sizes of ovolo moulding.

  • The smaller bearing gives a 3.2mm quirk.
D
44.0 mm
C
19.0 mm
B
9.5 mm
B2
12.7 mm
B3
16.0 mm
R
1/2 inch
R
12.7 mm
OL
67 mm
Shank Diameter
1/2 inch
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B127A - Bearing 1/2" diameter 3/16" bore B127A

Trend Router Cutter Bearing - for 3/16in bottom mounting

  • High quality ball bearing for free running against an edge to prevent heat build up.
  • 3/16in inside diameter for use on bottom mounted trimmer and profiling cutters.
  • 1/2in outside diameter for matched fit to trimming and templating cutters.
  • Bearings are grease packed for maximum efficiency and lifespan.
  • Shielding to both sides of the bearing prevents penetration of dust for maximum performance.
5.1800
B16A - Bearing 5/8" diameter 3/16" bore B16A

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
6.6200
B19C - Bearing 3/4" diameter 1/2" bore B19C

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
7.8200
B95A - Bearing 3/8" diameter 3/16" bore B95A

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
6.4800
COLL/12 - Collar pack COLL/12

Collar Packs are used for cutters with shank mounted bearings.

  • Packs include one collar, grub screw and hex key.
2.5100
SP-J - Spare part pack SP-J

Spare part packs make ordering spares easier.

  • Packs include, hex key (if required), screw, washer and shield (if required).
2.1200

Videos

Bearing Guided Cutter Video

Our video guide on how to use your bearing guided cutters, the different types and applications.
