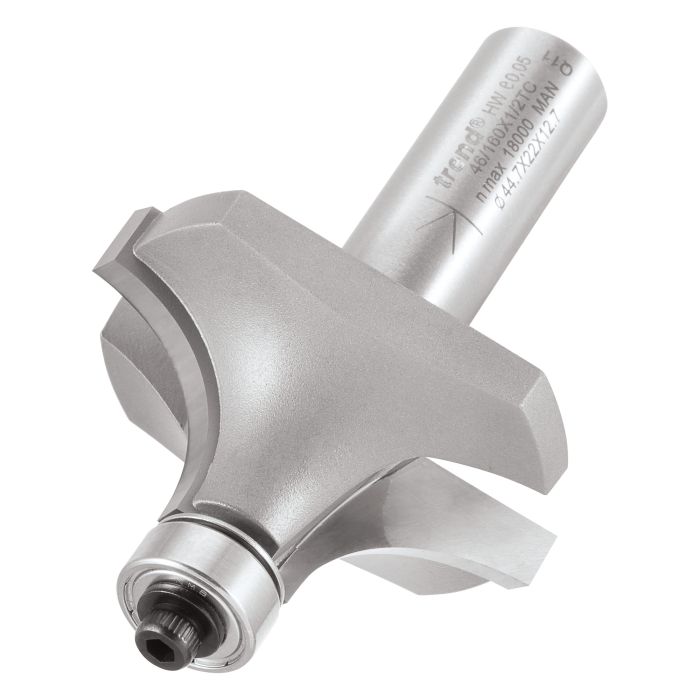

46/160X1/2TC - Bearing guided ovolo cutter 16mm radius

46/160X1/2TC
£90.98
£75.82

Self-guiding cutters for rounding over edges do not require a side fence.

  • They are supplied with two bearings.
  • Use the larger bearing for a round-over.
  • If the cutter is lowered, a top quirk can be produced.
  • A full round/bullnose for stair treads can also be produced by taking a second pass from the opposite side of the workpiece.
D
44.5 mm
C
22 mm
B
9.5 mm
B2
12.7 mm
R
16 mm
OL
71 mm
Shank Diameter
1/2 inch
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B127A - Bearing 1/2" diameter 3/16" bore B127A

Trend Router Cutter Bearing - for 3/16in bottom mounting

  • High quality ball bearing for free running against an edge to prevent heat build up.
  • 3/16in inside diameter for use on bottom mounted trimmer and profiling cutters.
  • 1/2in outside diameter for matched fit to trimming and templating cutters.
  • Bearings are grease packed for maximum efficiency and lifespan.
  • Shielding to both sides of the bearing prevents penetration of dust for maximum performance.
5.1800
B95A - Bearing 3/8" diameter 3/16" bore B95A

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
6.4800
GB16 - Guide bush 16mm diameter GB16 87

Guide bush guides the router when using a template.

  • Fits directly to Trend T3,T4,T5,T5 MK2, T9,T10 and T11, and some other light duty routers.
  • Will fit other makes when used with GB/5, GB/PLATE or UNIBASE Sub-base.
1 9.1400
SP-C - Spare part pack SP-C

Spare part packs make ordering spares easier.

  • Packs include, hex key (if required), screw, washer and shield (if required).
2.8000

Videos

Bearing Guided Cutter Video

Our video guide on how to use your bearing guided cutters, the different types and applications.
