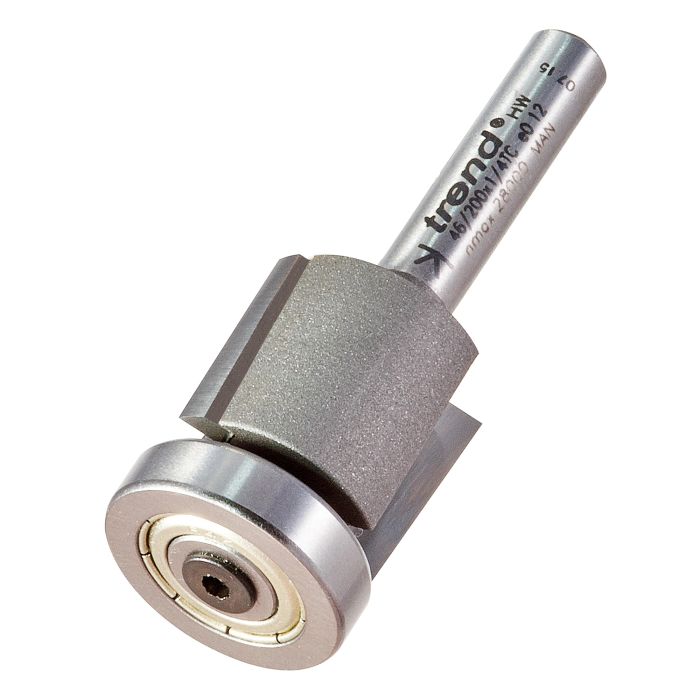

46/200X1/4TC - Low profile trimmer 19.1mm diameter 16mm length

46/200X1/4TC
£55.07
£45.89

Self guided with low profile ball bearing guide and bearing fixing screw.

  • For use in restrictive applications or within rebates of minimum 8mm.
  • Down cut to prevent breakout on veneers.
D
3/4 inch
D
19.1 mm
C
5/8 inch
C
16 mm
B
19.1 mm
A
90 degrees
OL
53 mm
Shank Diameter
1/4 inch
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B19A - Bearing 3/4 diameter 3/16" bore B19A

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
£9.02
SP-T - Spare part pack SP-T

Spare part packs make ordering spares easier.

  • Packs include, hex key (if required), screw, washer and shield (if required).
£1.99

Videos

Bearing Guided Cutter Video

Our video guide on how to use your bearing guided cutters, the different types and applications.
