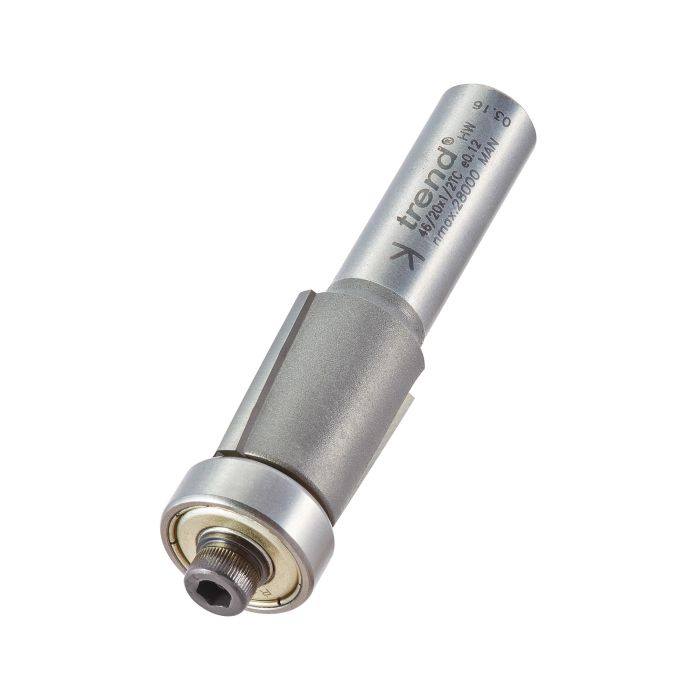

46/20X1/2TC - Guided trimmer 19.1mm diameter 25mm length
46/20X1/2TC
Self-guiding trimmers with bearings mounted on end of cutter.
- For trimming plastic or plywood overlay.
- For copy profiling, use the bearing to follow a template or base edge of board.
- An approximate 3mm overlap should be left before copy profiling. When using plastic laminate adhesive to dry before trimming. This avoids clogging the guide bearing.
- Downcut to prevent breakout on veneer.
- D
- 19.1 mm
- C
- 25 mm
- B
- 19.1 mm
- A
- 90 degrees
- OL
- 79 mm
- Shank Diameter
- 1/2 inch
- Shear
- 5 degrees
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
B19 | Trend Router Cutter Bearing - for 1/4in shank mounting
|
£6.76 | ||
|
SP-E | Spare part packs make ordering spares easier.
|
£2.76 |
