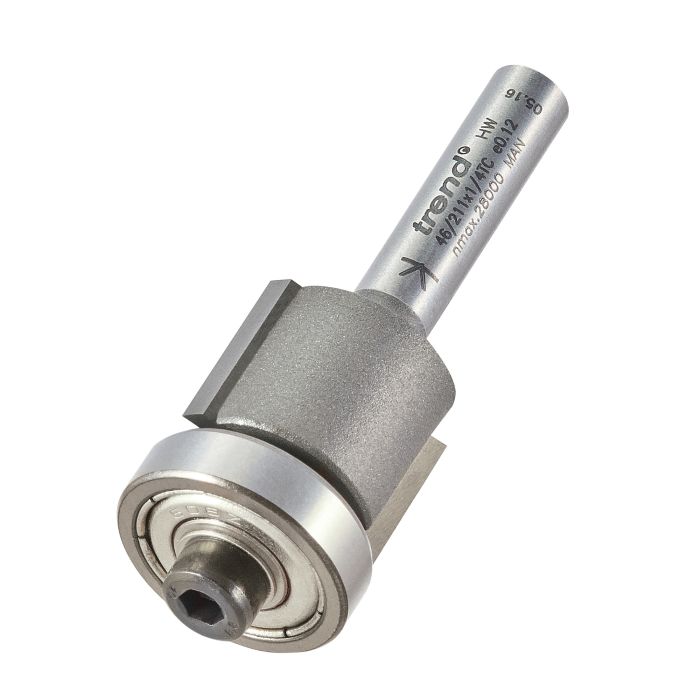

46/211X1/4TC - Guided trimmer 18.2mm diameter 14mm length
46/211X1/4TC
Self-guiding trimmers with bearings mounted on end of cutter.
- For trimming plastic or plywood overlay.
- For copy profiling, use the bearing to follow a template or base edge of board.
- An approximate 3mm overlap should be left before copy profiling. When using plastic laminate adhesive to dry before trimming. This avoids clogging the guide bearing.
- Has a sleeved bearing to allow for regrinds in case of resharpening.
- D
- 18.2 mm
- C
- 14 mm
- OL
- 54 mm
- B
- 18.2 mm
- Shank Diameter
- 1/4 inch
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
B182 | Bearings are shielded to prevent penetration of dust and grease packed for life.
|
£12.80 | ||
|
SP-A | Spare part packs make ordering spares easier.
|
£2.76 |
Videos
Bearing Guided Cutter Video
Our video guide on how to use your bearing guided cutters, the different types and applications.
