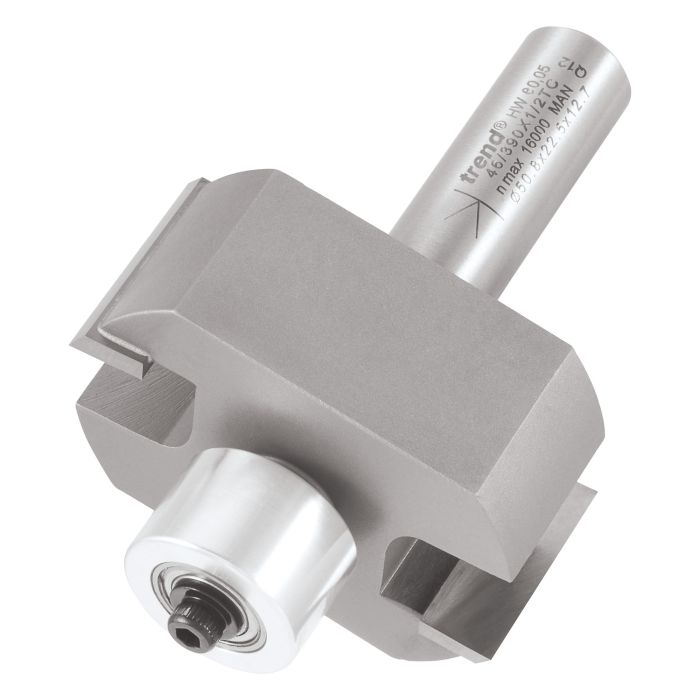

46/390X1/2TC - Guided large rebater
46/390X1/2TC
Bearing guided for straight or curved work.
- For portable and stationary routers.
- Supplied as standard with Ref. BR/191 fitted.
- A variety of alloy bearing rings are available to give various rebate sizes.
- Rings are secured between the two bearings.
- D
- 50.8 mm
- C
- 22.5 mm
- B
- 12.7 mm
- E
- 19.1 mm
- E
- 15.9 mm
- OL
- 78 mm
- Shank Diameter
- 1/2 inch
- Shank length
- 35 mm
For stationary machines at max. recommended speed 18,000 RPM
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
B127 | B | Trend Router Cutter Bearing - for 1/4in shank mounting
|
2 | £10.19 |
