Group

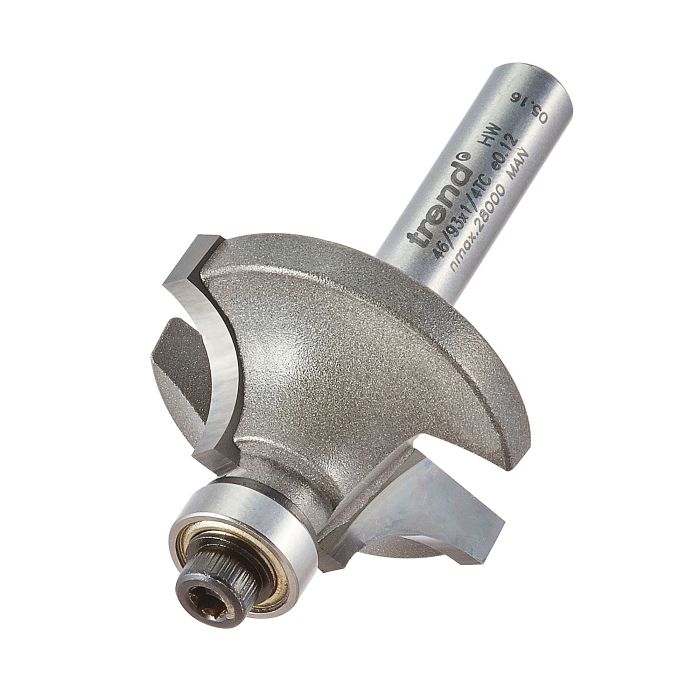

46/93X1/4TC - Bearing guided ovolo cutter 7.9mm radius

46/93X1/4TC
Out of Stock
£69.20
£57.67

Delivery Info Out of Stock

Self-guiding cutters for rounding over edges do not require a side fence.

  • They are supplied with two bearings.
  • Use the larger bearing for a round-over.
  • If the cutter is lowered, a top quirk can be produced.
  • A full round/bullnose for stair treads can also be produced by taking a second pass from the opposite side of the workpiece.
D
28 mm
C
1/2 inch
C
12.7 mm
B
9.5&12.7 mm
R
7.9 mm
OL
53 mm
Shank Diameter
1/4 inch
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B127A - Bearing 1/2" diameter 3/16" bore B127A

Trend Router Cutter Bearing - for 3/16in bottom mounting

  • High quality ball bearing for free running against an edge to prevent heat build up.
  • 3/16in inside diameter for use on bottom mounted trimmer and profiling cutters.
  • 1/2in outside diameter for matched fit to trimming and templating cutters.
  • Bearings are grease packed for maximum efficiency and lifespan.
  • Shielding to both sides of the bearing prevents penetration of dust for maximum performance.
5.1800
B95A - Bearing 3/8" diameter 3/16" bore B95A

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
6.4800
GB16 - Guide bush 16mm diameter GB16 87

Guide bush guides the router when using a template.

  • Fits directly to Trend T3,T4,T5,T5 MK2, T9,T10 and T11, and some other light duty routers.
  • Will fit other makes when used with GB/5, GB/PLATE or UNIBASE Sub-base.
1 9.1400
