866X1/2TC - Finger jointer
866X1/2TC
Finger Jointer combines an assembley of five TCT slotting cutters with an abutting-edge cutter to produce a profile that extends the glue line threefold, resulting in an extremely strong joint.
- The Finger Jointer fits into any portable or stationary router with a 1/2 inch collet.
- Performing the cut
- Timber must be machined square.
- The cutters should be assembled to match the spindle rotation, and be stacked at 90 degrees to one another to ease stress on the tool.
- D
- 40 mm
- B
- 28 mm
- E
- 6.0 mm
- OL
- 96 mm
- Shank Diameter
- 1/2 inch
- Timber thickness min.
- 11 mm
- Timber thickness max.
- 36 mm
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
BB28 | B | Bearings are shielded to prevent penetration of dust and grease packed for life.
|
1 | £19.55 |
|
SPAC/8/34 | E | Replacement 8mm bore X 3.4mm thick spacer. |
6 | £2.40 |
Videos
Bearing Guided Cutter Video
Our video guide on how to use your bearing guided cutters, the different types and applications.

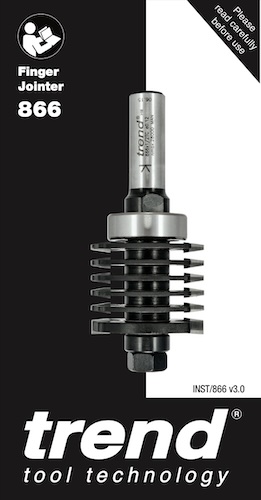

Instructions
Safety Sheets
Product Questions
Using five cutters the minimum material thickness is 31mm, and maximum material thickness is 36mm. For less cutters consult the catalogue or cutter instructions.
