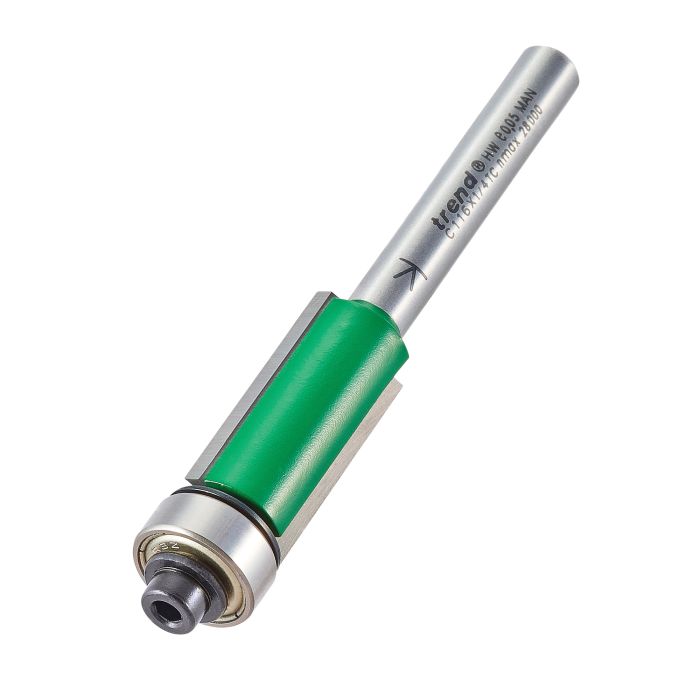

C116X1/4TC - Self guided trimmer 12.7mm diameter

C116X1/4TC
£30.90
£25.75

Trend Craft Pro 1/4in shank bearing guided flush trimming cutter - 12.7mm diameter Two Flute Carbide tips.

  • Two flute carbide TCT tips for clean, professional finish on timber lippings, plastic laminates and veneers.
  • 12.7mm diameter X 25.4mm cutting depth bottom bearing guided trimmer. Accurately and cleanly flush trims laminate and veneer work.
  • 1/4in shank for smaller routers and easy control for hand held trimming use on curved and straight edge work or to follow templates.
  • PTFE coating to minimise heat and resin build up for increased cutter performance and longevity.
  • 1/4in shank for easy control in smaller routers with 'K'mark shank to ensure safe working practices.

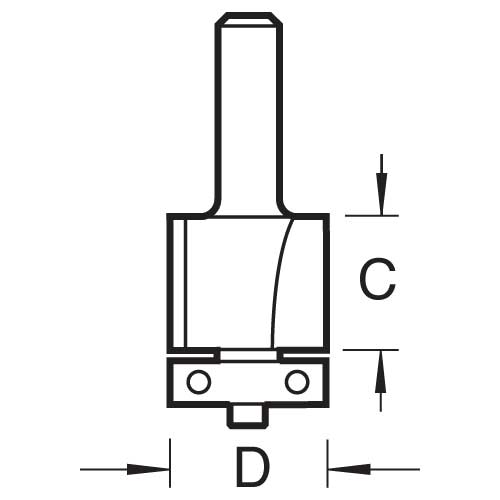

D
1/2 inch
D
12.7 mm
C
1 inch
C
25.4 mm
B
12.7 mm
A
90 degrees
OL
77 mm
Shank Diameter
1/4 inch
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B127A - Bearing 1/2" diameter 3/16" bore B127A

Trend Router Cutter Bearing - for 3/16in bottom mounting

  • High quality ball bearing for free running against an edge to prevent heat build up.
  • 3/16in inside diameter for use on bottom mounted trimmer and profiling cutters.
  • 1/2in outside diameter for matched fit to trimming and templating cutters.
  • Bearings are grease packed for maximum efficiency and lifespan.
  • Shielding to both sides of the bearing prevents penetration of dust for maximum performance.
£6.76
SP-I - Spare part pack SP-I

Spare part packs make ordering spares easier.

  • Packs include, hex key (if required), screw, washer and shield (if required).
£3.66

Videos

Bearing Guided Cutter Video

Our video guide on how to use your bearing guided cutters, the different types and applications.
