C152X12MMTC - Biscuit jointer set

C152X12MMTC
Special Price
£56.94
£47.45
Regular Price
£66.98

This two wing self-guiding Tungsten Carbide Tipped slotting cutter is ideal for biscuit jointing.

  • The set is supplied with three ball bearing guides to suit the three sizes of biscuits available.
  • A slightly longer cut than the length of the biscuit is required for ease of alignment during assembly.

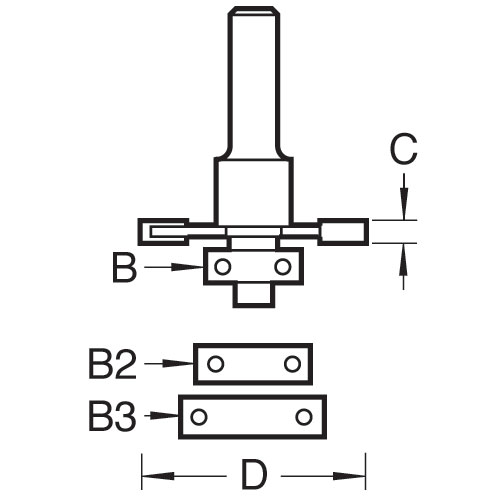

D
37.2 mm
C
4 mm
B
12.7 mm
B2
16.0 mm
B3
19.0 mm
OL
64 mm
Shank Diameter
12 mm
Groove depths
9.05 mm, 10.6 mm & 12.25 mm
For biscuit sizes
No.0, 10 & 20
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B127A - Bearing 1/2" diameter 3/16" bore B127A 002

Trend Router Cutter Bearing - for 3/16in bottom mounting

  • High quality ball bearing for free running against an edge to prevent heat build up.
  • 3/16in inside diameter for use on bottom mounted trimmer and profiling cutters.
  • 1/2in outside diameter for matched fit to trimming and templating cutters.
  • Bearings are grease packed for maximum efficiency and lifespan.
  • Shielding to both sides of the bearing prevents penetration of dust for maximum performance.
1 £6.93
B16A - Bearing 5/8" diameter 3/16" bore B16A 002

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
1 £8.87
B19A - Bearing 3/4 diameter 3/16" bore B19A 002

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
1 £11.18
SP-J - Spare part pack SP-J 003

Spare part packs make ordering spares easier.

  • Packs include, hex key (if required), screw, washer and shield (if required).
1 £2.83

Videos

Bearing Guided Cutter Video

Our video guide on how to use your bearing guided cutters, the different types and applications.

Trend Jointing Biscuits
