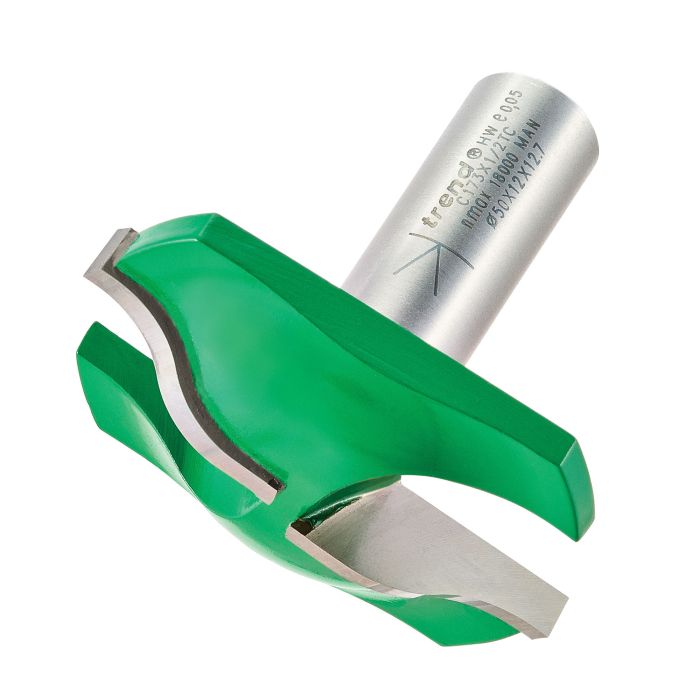

C173X1/2TC - Large panel raiser radius 12mm
C173X1/2TC
Panel raiser cutters for producing the panel for cabinet panelled doors, tool matches our range of profile scribers. Suitable for use on natural timber and MDF.
- For use in a router table only.
- Take several passes, increasing the depth with each pass.
- Must be used in a stationary variable speed router either mounted overhead or inverted in a router table at a reduced speed. For use on natural timber and MDF.
- Stationary use only.
- Can be used for curved panels if a copy pin is used.
- D
- 50 mm
- D2
- 16 mm
- C
- 12 mm
- R
- 12 mm
- OL
- 50 mm
- Shank Diameter
- 1/2 inch
For stationary machines at max. recommended speed 18,000 RPM
