CR/PDS2X1/2TC - Panel door set bevel large

CR/PDS2X1/2TC
£207.77
£173.14

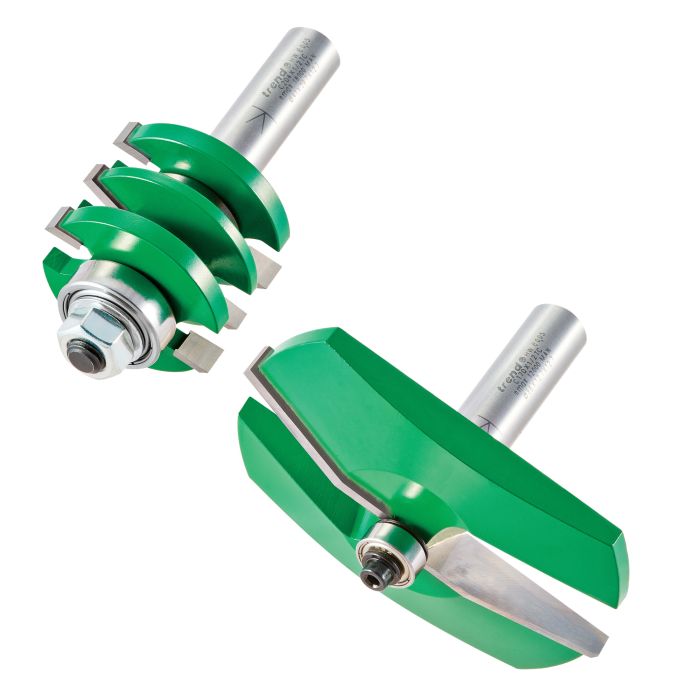

A panel door set consisting of a Easyset profile scriber and panel raiser cutter. Supplied in a storage case.

    Shank Diameter
    1/2 inch
    A
    10 degrees
    D
    41 mm
    C
    17 mm
    C2
    6.35 mm
    B
    22 mm
    OL
    91 mm

    Panel raiser:

    A
    15 degrees
    D
    86 mm
    C
    12.7 mm
    B
    12.7 mm
    OL
    75 mm
    Timber thickness min.
    18 mm
    Timber thickness max.
    22 mm
    Product Image Product Ref Diagram No Description Quantity Required Price for 1
    C170X1/2TC - Bearing guided bevel panel raiser 15 degrees C170X1/2TC

    Panel raiser cutters for producing the panel for cabinet panelled doors, tool matches our range of profile scribers. Suitable for use on natural timber and MDF.

    • For use in a router table only.
    • Take several passes, increasing the depth with each pass.
    • Must be used in a stationary variable speed router either mounted overhead or inverted in a router table at a reduced speed. For use on natural timber and MDF.
    • Stationary use only.
    £90.74
    C204X1/2TC - Easyset profile scribe bevel 10 degree C204X1/2TC

    The classic method of producing cabinet panelled door and drawer fronts is made easy with these Profile Scriber sets. With the combination type, components are re-arranged on the arbor to cut the profile or the scribe.

    • Cuts both parts of the joint by only changing the cutter height. No reassembly of the tool is required so saving time.
    • Router table use only. 1/4 inch and 8mm shanks should only be used with a medium or heavy duty router. For certain routers the aperture in the base may need to be enlarged. A workholding device should be used when cutting the scribe cut on the rail ends. The cutting edges should be staggered to each other. When using Easyset cutters take several passes.
    £96.93
