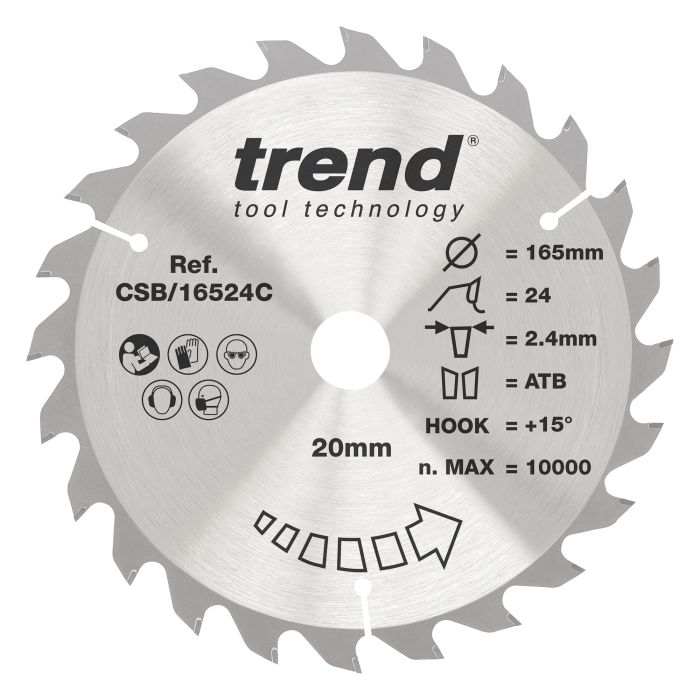

CSB/16524C - Trend Wood Circular Saw Blade 165mm x 20mm x 24T
A range of tungsten carbide tipped blades for wood and wood-based materials. For use in circular, plunge and table saws, and available in a range of finishes. Ideal for ripping and trimming softwood, hardwood, plywood, MDF and hardboard.
- Alternate top bevel (ATB) tooth form delivers a clean, safe and efficient cutting action in hand-held circular and table saws.
- Microgranular tungsten carbide tips (TCT) for optimum edge retention.
- Precision ground alloy steel plate to maintain flatness.
- Body hardened and tempered to minimise deflection under load.
- Anti-kickback shoulders* limit feed-speeds to minimise kickback (low tooth count blades only).
- Expansion slots improve heat dissipation to minimise vibration, prevent kick-back and improve cut quality.
- Etched blade information to EN847 safety standard.
- Reamed bore ensures precise spindle fit.
- Compatible with Bosch Pro GKS 55+ G, Bosch Pro GKS 55+ GCE, Bosch Pro GKS 165, Bosch Pro GKT 55 GCE, Dewalt DWE550, Dewalt DWS520, Einhell TE-PS 165, Evolution F165CCSL, Evolution R165CCSL, Makita HS6601, Makita SP6000
Wood TCT Sawblades
A range of Tungsten Carbide Tipped blades for wood and wood-based materials using circular, plunge and table saws. Ideal for ripping sheet material such as softwood, hardwood, plywood, MDF and hardboard.
Overview
Click the tabs below to see each product's details
Features
Microgranular Tungsten Carbide (TCT) Tips are silver-brazed and precision-ground for optimum edge retention and cut quality.
Alternate Top Bevel (ATB) Profile with Positive Hook delivers an efficient cutting action for fast stock removal.
Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection.
Expansion Slots reduce noise and vibration and assist with heat dissipation.
Reamed Bore ensures precise spindle fit.
Etched Blade Information to EN847 safety standard.
Detail
Click the tabs below to see each product's details
- Microgranular Tungsten Carbide (TCT) Tips silver-brazed and precision-ground for optimum edge retention and cut quality.
- Alternate Top Bevel (ATB) Profile with a positive hook delivers an efficient cutting action for fast stock removal.
- Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection under load for assured accuracy.
- Expansion Slots reduce noise and vibration, and assist with heat dissipation to prevent warping to maximise cut quality.
- Etched Blade Information to EN847 safety standard.
- Reamed Bore ensures precise spindle fit.
- Microgranular Tungsten Carbide (TCT) Tips silver-brazed and precision-ground for optimum edge retention and cut quality.
- Alternate Top Bevel (ATB) Profile with Positive Hook delivers an efficient cutting action for fast stock removal.
- Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection under load for assured accuracy.
- Expansion Slots reduce noise and vibration, and assist with heat dissipation to prevent warping to maximise cut quality.
- Thin Kerf reduces the amount of material cut to minimise dust and maximise cordless runtime.
- Anti-Kickback Shoulders prevent deflection and limit the feed-speed to minimise kickback.
- Etched Blade Information to EN847 safety standard.
- Reamed Bore ensures precise spindle fit.
- Microgranular Tungsten Carbide (TCT) Tips silver-brazed and precision-ground for optimum edge retention and cut quality.
- Alternate Top Bevel +Raker (ATBR) Profile with Positive Hook optimises cutting speed and cut finish for great performance in a variety of materials.
- Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection under load for assured accuracy.
- Expansion Slots reduce noise and vibration, and assist with heat dissipation to prevent warping to maximise cut quality.
- Thin Kerf reduces the amount of material cut to minimise dust and maximise cordless runtime.
- Anti-Kickback Shoulders prevent deflection and limit the feed-speed to minimise kickback.
- Etched Blade Information to EN847 safety standard.
- Reamed Bore ensures precise spindle fit.
Discover more about Trend Sawblades
Sawblade Range Information
Sawblade Products
Sawblade Videos
- D
- 6 1/2 inches
- D
- 165 mm
- Bore
- 20 mm
- Kerf
- 1.8 mm
- Plate thick
- 1.3 mm
- No. of Teeth
- 24
- Tooth form
- ATB
- Hook
- 15 degrees
- Quick Selector No.
- 8B.2
- Colour Code
- Red
- Type
- Combination
- Cut Finish
- Medium
Bosch GKT55
- Max rpm
- 10000
