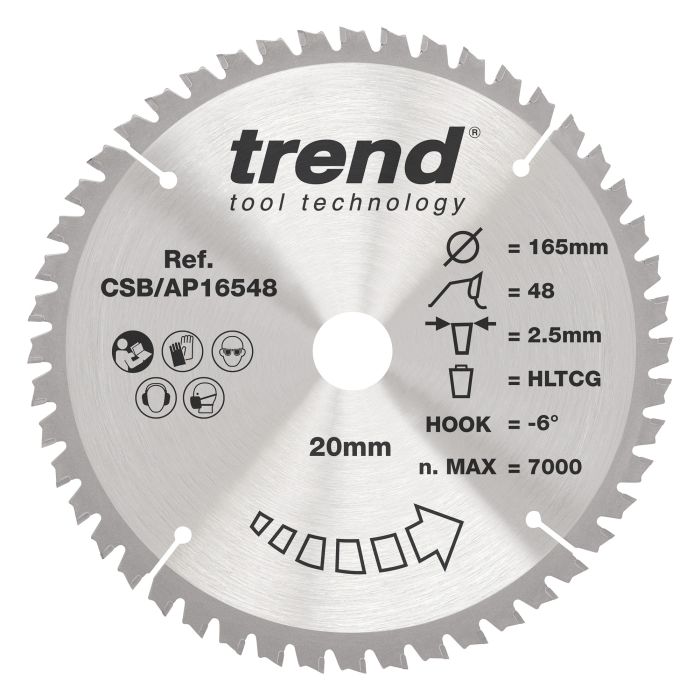

CSB/AP16548 - Trend Aluminium/Plastic Circular Saw Blade 165mm x 20mm x 48T
A range of tungsten carbide tipped saw blades for cutting Plastic, Aluminium, Copper and other non-ferrous metals and alloys. For use in circular, plunge, table and mitre saws, Trend Aluminium & Plastic blades deliver accurate, safe cutting performance. Ideal for window & door extrusions, facias & soffits, checker plate, sheet material.
- Triple chip ground (TCG) tooth form with -6° hook eliminates self-feeding for a safe, clean, controlled, cutting action in aluminium, plastics and non-ferrous metals.
- High tooth count reduces feed and cutting speed for a clean, controlled cut.
- Microgranular tungsten carbide tips (TCT) for optimum edge retention.
- Precision ground alloy steel plate to maintain flatness.
- Body hardened and tempered to minimise deflection under load.
- Expansion slots improve heat dissipation to minimise vibration, prevent kick-back and improve cut quality.
- Etched blade information to EN847 safety standard.
- Reamed bore ensures precise spindle fit.
- NOTE: Requires a wax lubricant when cutting Aluminium, such as Trend TRENDIWAX.
- Compatible with Bosch Pro GKS 18V-57 G, Bosch Pro GKS 18V-57, Bosch Pro GKS 18V-57-2, Bosch Pro GKS 18V-57-2 L, Bosch Pro GKS 18V-LI, Bosch Pro GKS 55+ G, Bosch Pro GKS 55+ GCE, Bosch Pro GKS 165, Bosch Pro GKT 55 GCE, Dewalt DCS391, Dewalt DCS520, Dewalt DCS565, Dewalt DWE550, Dewalt DWS520, Einhell TE-CS 18/165-1 Li, Einhell TE-PS 165, Evolution F165CCSL, Evolution R165CCS-Li, Evolution R165CCSL, FLEX CS 62 18.0-EC C, Hikoki C18DBAL, Hikoki C1806DA, Hikoki C1806DB, Hikoki C3606DA, Hikoki C3606DB, Hikoki C3606DUM, Hyundai HY2183, Kress KUE12.9, Makita BSS611, Makita DHS660, Makita DHS661, Makita DHS680, Makita DSP600, Makita DSP601, Makita DSS610, Makita DSS611, Makita HS012G, Makita HS6601, Makita SP001G, Makita SP6000, Metabo KS 18 LTX 57, Metabo KS 18 LTX 66 BL, Metabo KT 18 LTX 66 BL, Metabo MKS 18 LTX 58, Milwaukee M18 FPS55
Aluminum & Plastic TCT Sawblades
A variety of Tungsten Carbide Tipped sawblades, designed to cut plastic, aluminium, copper, brass and non-ferrous metals for use in circular, mitre and table saws. Ideal for window & door components, cladding, roofing trim, facias & soffits, and guttering.

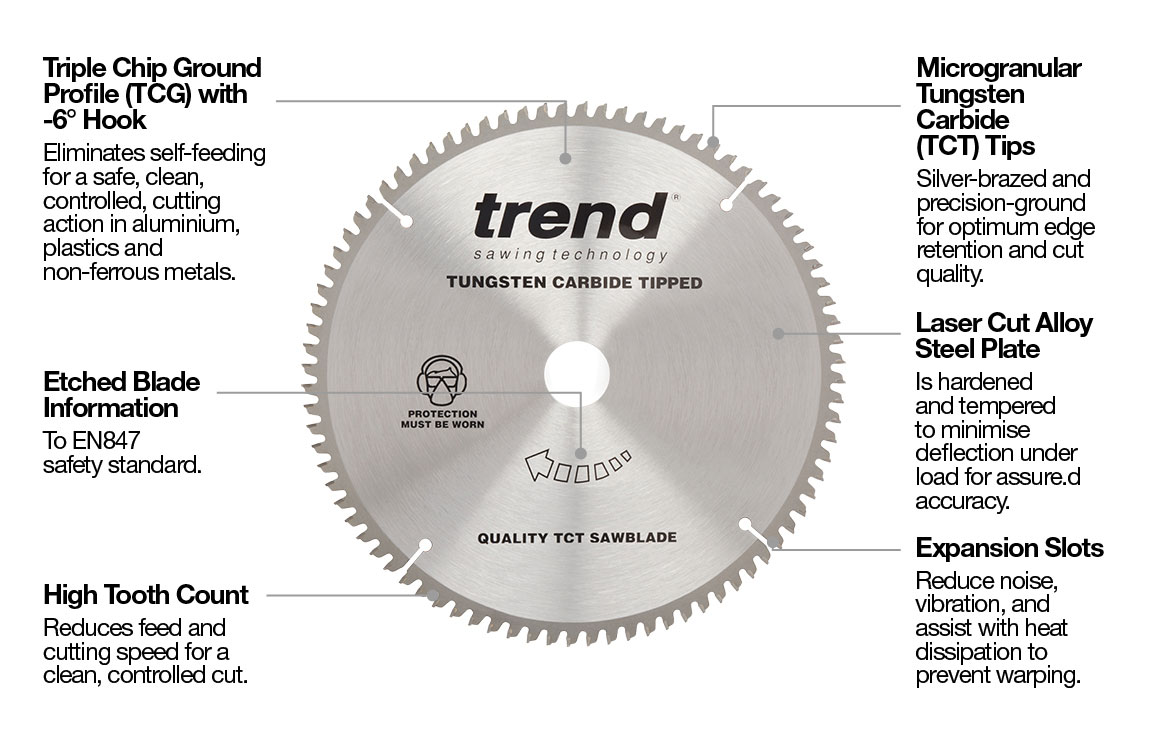

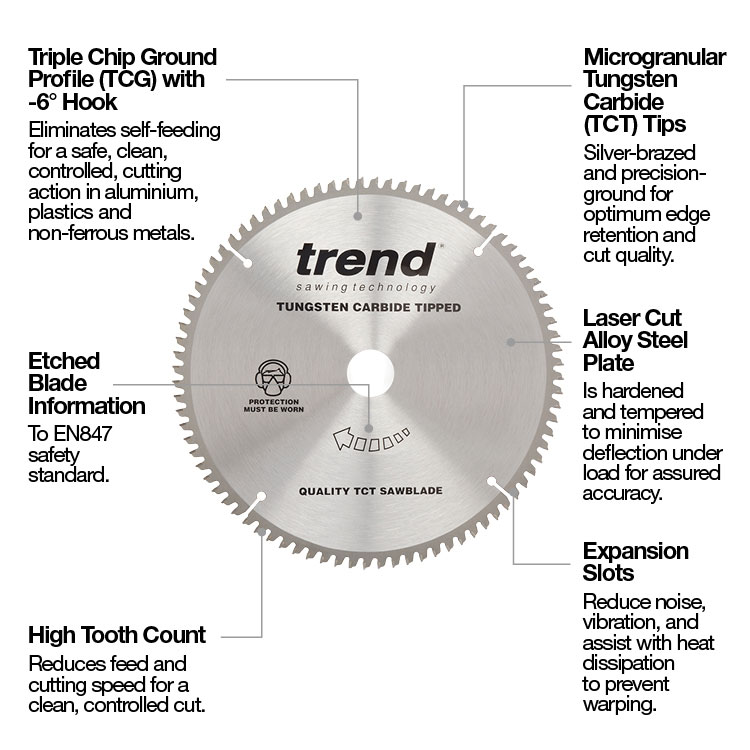

Features
Microgranular Tungsten Carbide (TCT) Tips are silver-brazed and precision-ground for optimum edge retention and cut quality.
Triple Chip Ground Profile (TCG) with -6° Hook eliminates self-feeding for a safe, clean, controlled, cutting action in aluminium, plastics and non-ferrous metals.
Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection.
Expansion Slots reduce noise and vibration and assist with heat dissipation.
Reamed Bore ensures precise spindle fit.
Etched Blade Information to EN847 safety standard.
Detail
- Microgranular Tungsten Carbide (TCT) Tips are silver-brazed and precision-ground for optimum edge retention and cut quality.
- Triple Chip Ground Profile (TCG) with -6° hook eliminates self-feeding for a safe, clean, controlled, cutting action in aluminium, plastics and non-ferrous metals.
- Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection under load for assured accuracy.
- High Tooth Count reduces feed and cutting speed for a clean, controlled cut.
- Expansion Slots reduce noise and vibration, and assist with heat dissipation to prevent warping to maximise cut quality.
- Etched Blade Information to EN847 safety standard.
- Reamed Bore ensures precise spindle fit.
- Requires a wax lubricant when cutting Aluminium, such as Trend TRENDIWAX.
Featured Products
Discover more about Trend Sawblades
Sawblade Range Information
Sawblade Products
Sawblade Videos
- D
- 6 1/2 inches
- D
- 165 mm
- Bore
- 20 mm
- Kerf
- 2 mm
- Plate thick
- 1.8 mm
- No. of Teeth
- 48
- Tooth form
- TCP
- Hook
- Neg 6 degrees
- Quick Selector No.
- 8B.1
- Colour Code
- Grey
- Type
- Aluminium/Plastic/Worktop
- Cut Finish
- Extra fine
- Max rpm
- 7500
DeWalt DWS520, Makita SP6000, Bosch GKT 55 GC, Triton TTS1400, Draper PS1200D, Titan TTB673CSW, Parkside PTSS 1200 B1, Macallister LT63006S, Macallister MSPS1200
