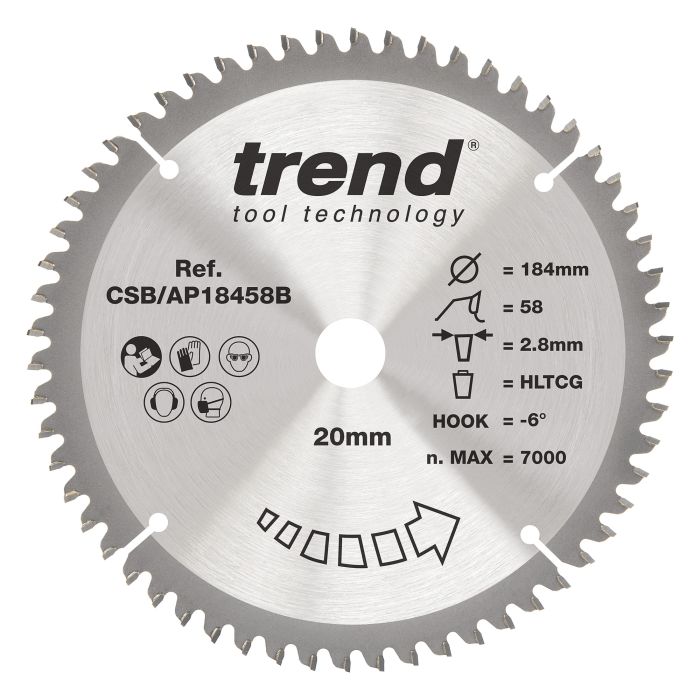

CSB/AP18458B - Trend Aluminium/Plastic Circular Saw Blade 184mm x 20mm x 58T
CSB/AP18458B
A range of tungsten carbide tipped saw blades for cutting Plastic, Aluminium, Copper and other non-ferrous metals and alloys. For use in circular, plunge, table and mitre saws, Trend Aluminium & Plastic blades deliver accurate, safe cutting performance. Ideal for window & door extrusions, facias & soffits, checker plate, sheet material.
- Triple chip ground (TCG) tooth form with -6° hook eliminates self-feeding for a safe, clean, controlled, cutting action in aluminium, plastics and non-ferrous metals.
- High tooth count reduces feed and cutting speed for a clean, controlled cut.
- Microgranular tungsten carbide tips (TCT) for optimum edge retention.
- Precision ground alloy steel plate to maintain flatness.
- Body hardened and tempered to minimise deflection under load.
- Expansion slots improve heat dissipation to minimise vibration, prevent kick-back and improve cut quality.
- Etched blade information to EN847 safety standard.
- Reamed bore ensures precise spindle fit.
- NOTE: Requires a wax lubricant when cutting Aluminium, such as Trend TRENDIWAX.
- Compatible with Dewalt DCS575-XE, Dewalt DCS576-XE, Dewalt DCS578-XE, Dewalt DCS579-XE
DIMENSIONS:
- D1
- 7 1/4 inches
- D1
- 184 mm
- Bore
- 20 mm
- Kerf
- 2.8 mm
- Plate thick
- 1.9 mm
- No. of Teeth
- 58
- Tooth Form
- HLTCG
- Hook Angle
- NEG 6 degrees
