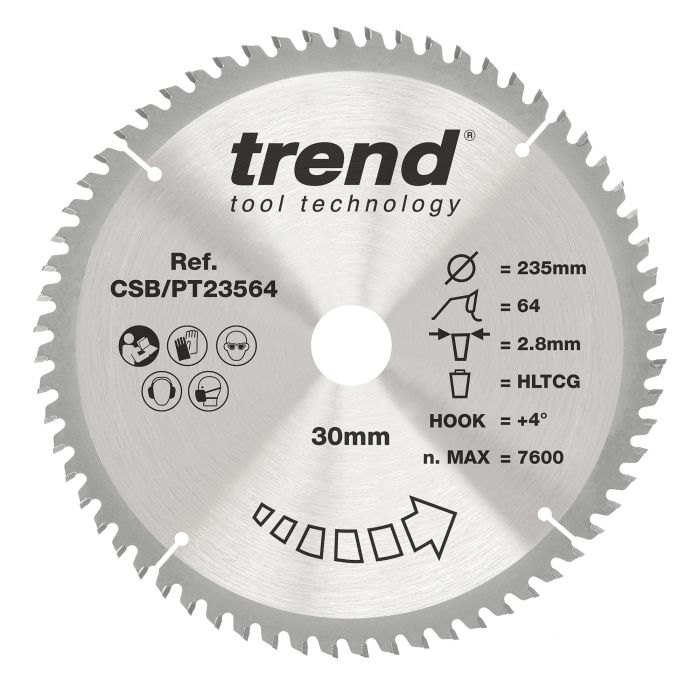

CSB/PT23564 - Trend Laminate/HPL Circular Saw Blade 235mm x 30mm x 64T
CSB/PT23564
A range of tungsten carbide tipped saw blades for cutting laminated and resin-based materials. For use in circular, plunge and table saws, Trend Laminate & HPL blades deliver precise, clean cuts. Ideal for laminated and veneered panels, laminated chipboard worktop and compact laminate.
- Triple chip ground (TCG) tooth form with +4° hook delivers an ultra-fine finish in hard materials.
- High tooth count reduces feed and cutting speed for a clean, controlled cut.
- Microgranular tungsten carbide tips (TCT) for optimum edge retention.
- Precision ground alloy steel plate to maintain flatness.
- Body hardened and tempered to minimise deflection under load.
- Expansion slots improve heat dissipation to minimise vibration, prevent kick-back and improve cut quality.
- Etched blade information to EN847 safety standard.
- Reamed bore ensures precise spindle fit.
- Compatible with Bosch Pro GKS 85, Bosch Pro GKS 85 G, Dewalt D23700, Hikoki C9U3, Makita 5903R, Makita DHS900, Makita HS009G, Metabo KS 85 FS, Milwaukee CS 85 SB, Milwaukee CS 85 CBE
DIMENSIONS:
- D1
- 9 1/4 inches
- D1
- 235 mm
- Bore
- 30 mm
- Kerf
- 2.8 mm
- Plate thick
- 1.8 mm
- No. of Teeth
- 64
- Tooth Form
- HLTCG
- Hook Angle
- 4 degrees
