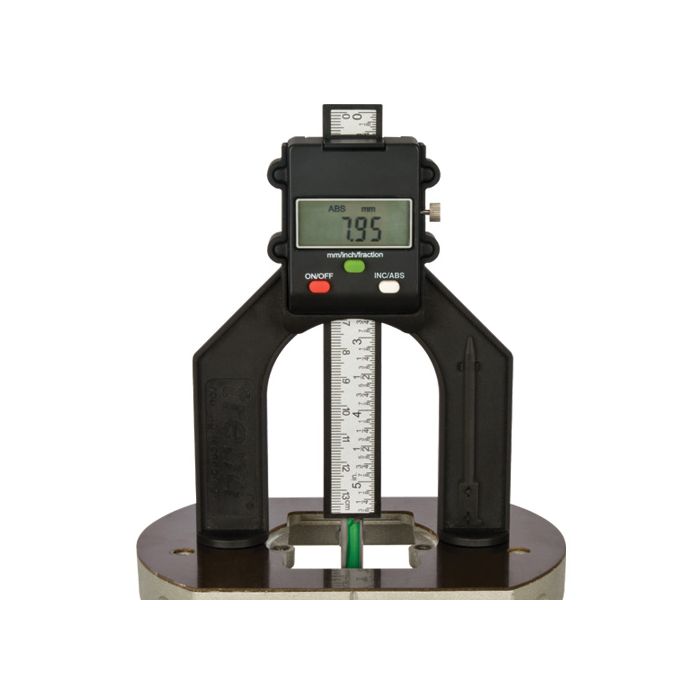

GAUGE/D60 - Trend Digital Depth Gauge - for setting and checking depths for routing and sawing applications - UK sale only
GAUGE/D60
Digital depth gauge for router tables and saw benches. Horizontal and vertical measuring.
- For hand routers, router tables and saw benches.
- LCD readout for mm, imperial and fractions with auto shut off 5 mins.
- Removable pin to allow hole depths to be measured. Pin can be parked on arm. Hole depth 50.8mm (2 inch).
- Self standing with magnetic feet and flat back.
- Injection plastic moulding with plastic rule.
- 60mm wide aperture.
- Read-out has relative co-ordinate and absolute function.
- Includes small rebate clip that fits to the base of the rule to allow the rule to be set flush to a router table back fence.
- For UK sale only.
- Spare battery available ref. BAT/CR2032/3V.
- Measuring range
- 80 mm (3-1/8")
- Opening width
- 60 mm (2-3/8")
- Resolution
- 0.05 mm (0.002")
- Accuracy
- +/- 0.1 mm (0.004")
- Repeatability
- +/- 0.1 mm (0.004")
- Max. measuring speed
- 1.5 m/s (60 in/s)
- Pin diameter
- 4.5 mm
- Weight
- 92g
- Voltage
- 3 volt
- ABS mode (Absolute)
- Measuring single amounts from Zero
- INC mode (Relative)
- Measuring from last point
- End of life
- See below for Environmental Policy link
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
BAT/CR2032/3V | Lithium 3 volt battery for DAR/200 and DAR/500.
|
£3.19 |
