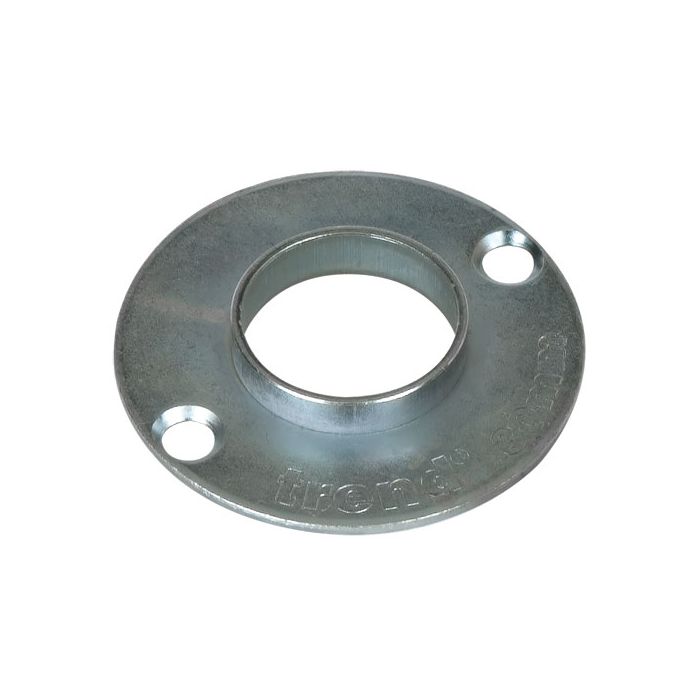

GB30 - Trend 30mm Guide bush - standard 6mm spigot length guide bush for trade jig use. Ideal for user made templates.
GB30
Guide bush guides the router when using a template.
- Fits directly to Trend T3,T4,T5,T5 MK2, T9,T10 and T11, and some other light duty routers.

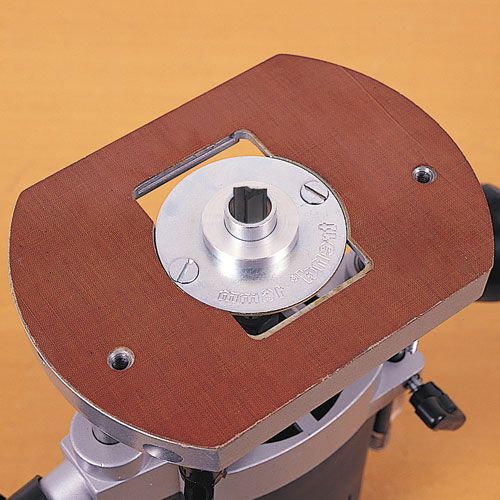

- Will fit other makes when used with GB/5, GB/PLATE or UNIBASE Sub-base.
- Outside diameter
- 30 mm
- Inner diameter
- 27 mm
- Projects from plate
- 6 mm
- Plate diameter
- 60 mm
- Csk screw hole centres
- 50 mm
no spare products
Instructions
Product Questions
The GB30A should not be used on thin internal doors as the guide bush can contact the jig body. We advise GB30 with 6mm spigot length is used.
Yes, the Trend range of GB guide bushes will fit straight on to either machine.
The guide bushes have a wall thickness of 1.5mm, therefore reducing the internal diameter by 3mm. To allow for waste, the guide bush wants to be about 6mm larger.
Yes they do, however a M5 nut and bolt is required to fasten them to the base of the router.
Please check our compatibility chart. A UNIBASE or sub-base may be required depending on the make and model.
