INLAY/KIT/A - Inlay kit with 3.2mm cutter 1/4 Solid tungsten
INLAY/KIT/A

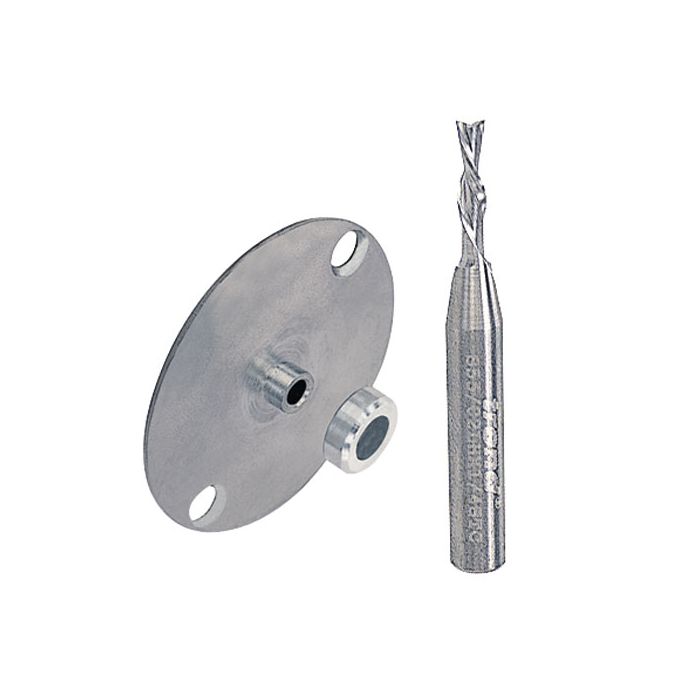

For use with T5 and other compatible routers. Comprises a 1/8 inch down cut spiral router cutter Ref. S55/02LHX1/4STC, guide bush and inlay collar.
- By following a template and then removing the collar, an inlay pocket can be routed with matching inlay.
- 1/4 inch shank solid carbide router cutter.
- A Unibase may be required for certain makes & models of router including Trend T4E.
- Guide bush ID
- 4.8 mm
- Guide bush OD
- 7.9 mm
- Collar OD
- 14.28 mm
- Cutter D
- 1/8 inch
- Cutter D
- 3.2 mm
- Cutter C
- 1/2 inch
- Cutter C
- 12.7 mm
- Cutter OL
- 50.8 mm
- Shank Diameter
- 1/4 inch
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
S55/02LHX1/4STC | Down-cut spirals are ideal for routing small workpieces or for holding workpieces secure in vacuum jigs.
|
£31.79 |
