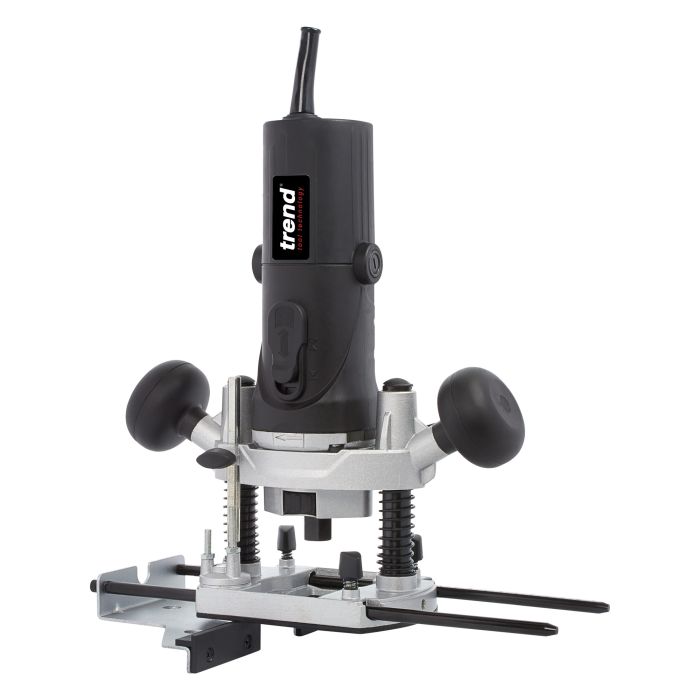

T4EK/EURO - 850W 8mm Variable Speed Plunge Router 230V EU

Name: T4EK/EURO - 850W 8mm Variable Speed Plunge Router 230V EU
SKU: T4EK/EURO
Price: 124 GBP
Availability: InStock

T4EK/EURO

£124.00

£103.33

Add to Wish List

Details

Lightweight, compact plunge router, with a removeable motor body. Ideally suited to overhead working and perfect for hinge recess cutting, timber profiling and hand carving.

Removeable Motor Body can be easily detached from the base for hand carving and die grinding applications.
Anti-Restart Protection prevents the router from accidental start-up if the power supply is interrupted or lost and restored.
7-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
Side Fence for edge rebating, grooving and moulding applications.
¼”, 6mm & 8mm Collets are supplied for maximum versatility.
Plunge Depth Limiter is easy to set and prevents over-cutting.
3-Position Rotating Turret to pre-set plunge depth limits for fast, repeatable batch and stepped cutting.
Trend Base Configuration is a standardised pattern of fixing holes that allow routers to be attached to a range of compatible tables, jigs and accessories.
Spindle Lock for quick and easy cutter changes.
Replaceable Carbon Brushes are easily accessible and simple to change for extended motor life.
Moulded Carry Case provides safe storage for router and accessories.
*3 year warranty – Online registration required

Spec

Duty Rating: Light / Hobbyist
Motor Power: 850 W
AC Voltage: 230 V
Plug Type: EU Euro 2 pin
Supplied Collet Size: ¼” + 8 mm + 6 mm
Plunge Stroke (Max): 35 mm
No-Load Speed: 11,500 – 32,000 rpm
Supplied Guide Bush: 16 mm
Fence Rod Length: 300 mm
Fence Rod Centres: 84 mm
Fence Rod Diameter: 8 mm
Base Aperture Diameter: 40 mm
Cutter Diameter (Max): 30 mm
Dust Spout Internal Diameter: 35 mm
Motor collar dia: 43 mm
Sound pressure Lpa: 85 dB(A)1
Acoustic Pressure Lwa: 96 dB(A)2
Hand Arm Vibration: <3.0 m/s2
Weight (Net): 2.8 kg
Cable Length: 2.1 m
End of Life: See below for Environmental Policy link

Built in power shut off will not work with router table NVR switch.

Customer Review

Spares

Product Ref	Diagram No	Description	Quantity Required	Price for 1
CLT/NUT/T4	35	Replacement collet nut.	1	£5.89
CLT/T4/8	34	One piece collet for the T4EK. Does not include the collet nut.	1	£6.74
WP-NUT/05	52	Replacement nut.	3	£1.03
WP-SCW/09	64	Replacement screw.	2	£1.03
WP-SCW/11	63	Replacement machine screw.	2	£1.03
WP-SCW/12	49	Machine screw.	2	£1.03
WP-SCW/66	66	Machine screw.	4	£1.03
WP-SPAN/14P	71	Pressed steel spanner.	1	£4.72
WP-T4/001	01	The stator housing for the T4 router.	1	£7.28
WP-T4/002	02	The top vent housing for the T4 router.	1	£7.87
WP-T4/003	03	Spare base for the T4 router.	1	£11.00
WP-T4/004	04	The spring washer for the T4 router.	1	£1.03
WP-T4/005	05	The washer for the T4 router.	2	£1.03
WP-T4/006	06	The cable guard for the T4 router.	1	£1.03
WP-T4/008	08	The carbon brush cover for the T4 router.	2	£1.03
WP-T4/011	11	The carbon brush holder for the T4 router.	2	£2.80
WP-T4/013	13	The base column end cap for the T4 router.	2	£1.03
WP-T4/014	14	The left hand plunge lever locking screw for the T4 router.	1	£1.45
WP-T4/015	15	The cable clamp for the T4 router.	1	£1.03
WP-T4/016	16	The self tap screw for the T4 router. 1"	1	£1.03
WP-T4/018	18	The push rod for the T4 router.	1	£1.03
WP-T4/023	23	The baffle for the T4 router.	1	£1.03
WP-T4/025	25	The top bearing for the T4 router.	1	£5.56
WP-T4/027	27	The lower bearing housing for the T4 router.	1	£4.88
WP-T4/028	28	The lower bearing for the T4 router.	1	£5.56
WP-T4/030	30	The collar with a left handed thread for the T4 router.	1	£1.92
WP-T4/031	31	The machine screw for the T4 router.	2	£1.03
WP-T4/032	32	The bearing lock plate for the T4 router.	1	£2.80
WP-T4/033	33	The collet spring for the T4 router.	1	£1.92
WP-T4/036	36	The depth stop for the T4 router.	1	£1.92
WP-T4/037	37	The middle frame for the T4 router.	1	£9.76
WP-T4/038	38	The thumb knob for the T4 router.	1	£1.92
WP-T4/039	39	The spring for the T4 router.	1	£1.03
WP-T4/040	40	The base housing lock nut for the T4 router.	1	£1.92
WP-T4/041	41	The hex bolt for the T4 router.	1	£1.03
WP-T4/043	43	The plunge lock lever for the T4 router.	1	£1.92
WP-T4/044	44	The lower housing clamp spacer for the T4 router.	1	£1.03
WP-T4/045	45	The plunge lever torsion spring for the T4 router.	1	£1.92
WP-T4/046	46	The grip knob for the T4 router.	2	£3.52
WP-T4/047	47	The plunge spring for the T4 router.	2	£1.92
WP-T4/048	48	The plunge column for the T4 router.	2	£5.56
WP-T4/050	50	The dust extraction spout for the T4 router.	1	£3.70
WP-T4/051	51	The threaded pin for the T4 router.	1	£1.03
WP-T4/053	53	The threaded pin for the T4 router.	1	£1.03
WP-T4/056	56	The revolving turret for the T4 router.	1	£1.92
WP-T4/057	57	The revolving turret ball for the T4 router.	1	£1.03
WP-T4/058	58	The revolving turret spring for the T4 router.	1	£1.03
WP-T4/059	59	The set screw for the T4 router.	1	£1.03
WP-T4/060A	60	The grub screw for the T4 router.	1	£1.03
WP-T4/061	61	The plastic slider base for the T4 router.	1	£2.80
WP-T4/062	62	The revolving guide 'o' ring for the T4 router turret stop.	1	£1.03
WP-T4/065	65	The guide rods for the T4 router.	1	£7.87
WP-T4/067	67	The side fence cheeks for the T4 router.	1	£3.70
WP-T4/068	68	The parallel side fence body for the T4 router.	1	£7.87
WP-T4/069	69	The spanner for the T4 router.	1	£4.72
WP-T4/074	74	The washer for the T4 router.	2	£1.03
WP-T4/076	76	The spindle lock housing for the T4 router.	1	£7.87
WP-T4/077	77	The spindle lock bracket for the T4 router.	1	£1.91
WP-T4/078	78	The spindle lock button for the T4 router.	1	£1.03
WP-T4/079	79	The spindle lock plate for the T4 router.	1	£1.92
WP-T4/080	80	The spindle lock spring for the T4 router.	1	£1.03
WP-T4/081	81	The dust spout lower housing for the T4 router.	1	£1.92
WP-T4/082	82	The switch base for the T4 router.	1	£2.12
WP-T4/084	84	The machine screw for the T4 router.	1	£1.03
WP-T4/085	85	The self tapping screw for the T4 router.	1	£1.03
WP-T4/087		The parallel side fence complete with rods for the T4 & T18S/R14 routers. Fence has plastic fence cheeks.		£15.57
WP-T4E/007	07	The speed control circuit board for the T4 router.	1	£21.14
WP-T4E/010	10	Brush set to suit the T4EK router.	1	£6.12
WP-T4E/017	17	Replacement switch for the T4EK router. For use with older PCBe only.	1	£4.18
WP-T4E/022	22	The field coil for the T4 router.	1	£24.78
WP-T4E/026	26	The armature with fan for the T4 router.	1	£31.24
WP-T4EURO/021	21	The 2 core with plug for the T4 router.	1	£12.93
WP-WASH/29	12	Replacement washer.	2	£1.03
