VARIJIG - Varijig system adjustable frame
VARIJIG

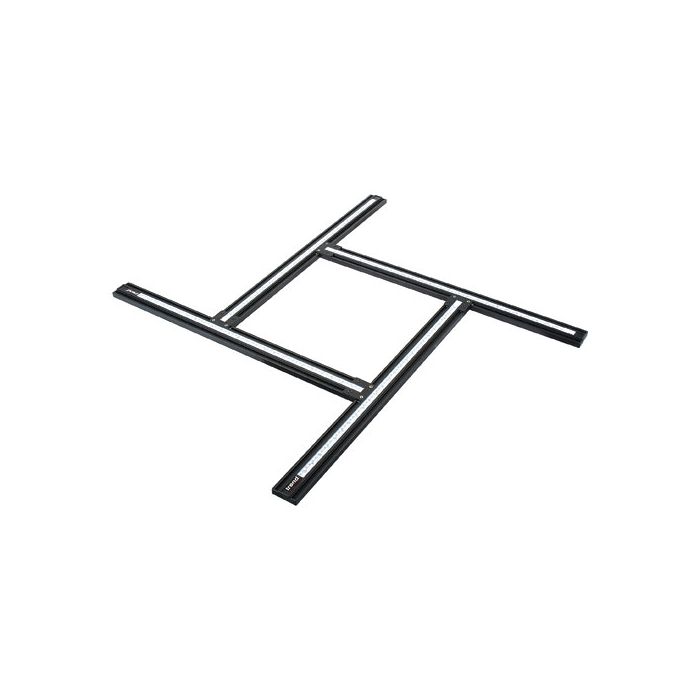

Adjustable frame and guide for use with a router.
- Adjustable frame for rectangles and squares.
- Allows a router to cut recesses, slots, face panel moulds etc. Can also be used to create panel doors for kitchens etc.
- Four lengths of 700mm extrusion with dual metric/imperial measuring scales.
- Working area 600mm x 600mm.
- Cross cut accuracy to 0.1mm, a square is required to square frame before use.
- Includes router anti-tilt block.
- Use with a guide bush with minimum 8mm spigot length, or use Unibase as guide.
- Secure with standard clamps or use optional clamp kit.
- Extrusion width
- 54mm
- Extrusion height
- 15.8mm
- Top T slot neck
- 8.2 mm x 1.7 mm
- Top T slot width
- 13.1 mm x 2.2mm
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
WP-SCW/31 | 009 | Replacement M6 machine screw. |
1 | £0.99 |
|
WP-VJS/03 | 003 | Replacement machine screw for the Vari jig. |
8 | £1.58 |
|
WP-VJS/04 | 004 | Replacement metric /imperial scale for the Vari jig. |
4 | £2.69 |
Out of Stock
|
WP-VJS/05 | 005 | Replacement anti tilt device for the Vari jig. |
1 | £5.34 |
|
WP-VJS/06 | 006 | Replacement extrusion end cap for the Vari jig. |
4 | £1.96 |
|
WP-VJS/07 | 007 | Replacement extrusion for the Vari jig. |
4 | £16.01 |
|
WP-VJS/08 | 008 | Replacement corner frame for the Vari jig. |
4 | £7.12 |
Videos
Varijig Frame System Video
Adjustable frame and guide for use with a router.
Safety Sheets
Test Reviews
Product Questions
The secret to great clamping with the varijig is two leave the lever up almost vertical, bring the two ends of the clamp together against the work peice, push the clamp handle down once, so its flat,and again so the clamp handle is pointing down this will clamp the straight edge rigid.
