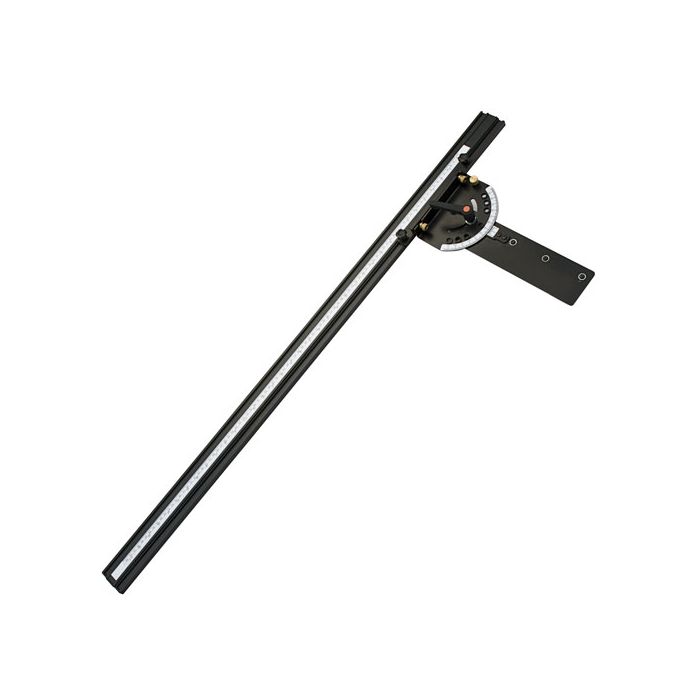

VJS/AG/36 - Varijig Variable Angle Guide 36 inch 915mm
VJS/AG/36
Variable angle guide for the router or saw.
- Adjustable angle guide to allow grooving with the router, or crosscutting with a circular saw.
- Adjustable angle range from 25 degree to 155 degree.
- Preset angle for 30, 45, 60, 90, 120, 135 and 150 degree.
- Router working length at 90 degree is 915mm (36 inch). Circular saw working length at 90 degree is 780mm (30 3/4 inch).
- Angle tolerance +/- 0.2 degree with zeroing facility.
- Adjustable position alloy extrusion with scale.
- Requires three clamps.
- Will accept accessory friction clamps Ref. VJS/CK or VJS/CK/L.
- Power tools not included.
- Preset angle
- 30, 45, 60, 90, 120, 135 & 150 degree
- Adjustable angle range
- 25 to 155 degree
- Router working length at 90 degree
- 915mm (36 inch)
- Circular saw working length at 90 degree
- 780mm (30 3/4 inch)
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
WP-AP/03 | Replacement hex key. |
£1.42 | ||
|
WP-VJS/04C | Replacement metric /imperial scale for the Vari jig. |
£2.84 | ||
|
WP-VJS/06 | Replacement extrusion end cap for the Vari jig. |
£1.96 | ||
|
WP-VJS/07C | Replacement extrusion for the VJS/AG/36. |
£22.39 | ||
|
WP-VJS/AG/08 | Replacement washer for Varijig angle guide |
£1.96 | ||
|
WP-VJS/AG/09 | Replacement t nut for Varijig angle guide |
£1.04 | ||
|
WP-VJS/AG/10 | Replacement knurled locking knob for Varijig angle guide |
£4.80 | ||
|
WP-VJS/AG/11 | Replacement adjustable lever for Varijig angle guide |
£3.75 |
Safety Sheets
Accessories
-
VJS/CG/ESB£14.04 -
VJS/CG/RBP£29.67 -
VJS/CG/SBP£29.67
