VJS/TG/JIG - Varijig Tenon & Grooving Jig
VJS/TG/JIG

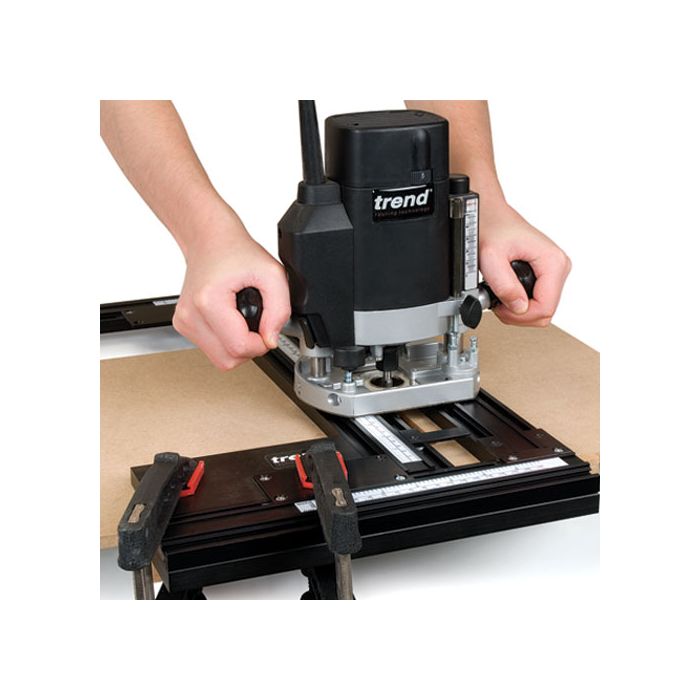

Allows grooves and tenons to be cut using a router.
- Can be used to crosscut boards with a router or circular saw.
- Frame is adjustable to allow narrower or wider grooves to be routed.
- The max. adjustment is 70mm depending on the diameter of the router base.
- The edge of the frame can be used as a guide to trim a panel square using a router.
- Two sliding stops to set groove length.
- Squaring butt has the facility to accept a spelch block to allow a full-length groove.
- Fixing screws are included for this purpose. Working length is 400mm.
- Can be used with any plunge router fitted with a guide bush of minimum 8mm projetction.
- Router not included.
Working length based on 30 mm guide bush and 12 mm diameter cutter being used:-
- Max. without end stops used
- 412 mm
- Max. with one end stop used
- 397 mm
- Max. with two end stops used
- 382 mm
- Max. working width using end stops* (12mm dia. cutter)
- 18 mm
- Max. width adjustment depending on router base diameter
- 70 mm
