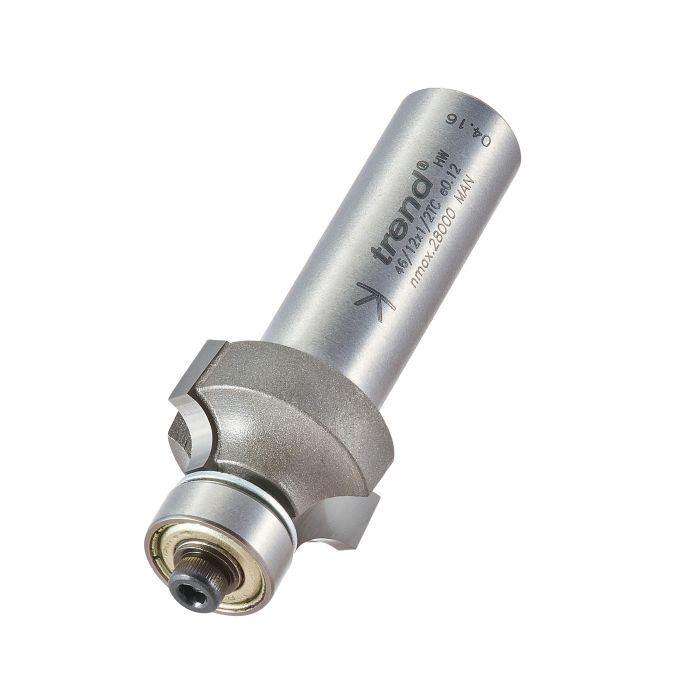

46/12X1/2TC - Bearing guided ovolo cutter 4.8mm radius

46/12X1/2TC
£62.54
£52.12

Self-guiding cutters for rounding over edges do not require a side fence.

  • They are supplied with two bearings.
  • Use the larger bearing for a round-over.
  • If the cutter is lowered, a top quirk can be produced.
  • A full round/bullnose for stair treads can also be produced by taking a second pass from the opposite side of the workpiece.
D
22 mm
C
1/2 inch
C
12.7 mm
B
9.5 mm
B2
12.7 mm
R
4.8 mm
OL
62 mm
Shank Diameter
1/2 inch
Product Image Product Ref Diagram No Description Quantity Required Price for 1
COLL/14 - Collar pack COLL/14

Collar Packs are used for cutters with shank mounted bearings.

  • Packs include one collar, grub screw and hex key.
2.5100
FTS/S/P - Fast track preparation stone FTS/S/P

Replacement preparation stone for the Fasttrack sharpening system.

  • Monycrystalline diamond with unique Diamond Cross relief pattern which gives optimal abrasion rates to maximise sharpening efficiency and reduces clogging.
  • Diamonds are held by Nickel plating to a steel substrate, with ABS plastic base.
14.4400

Videos

Bearing Guided Cutter Video

Our video guide on how to use your bearing guided cutters, the different types and applications.
