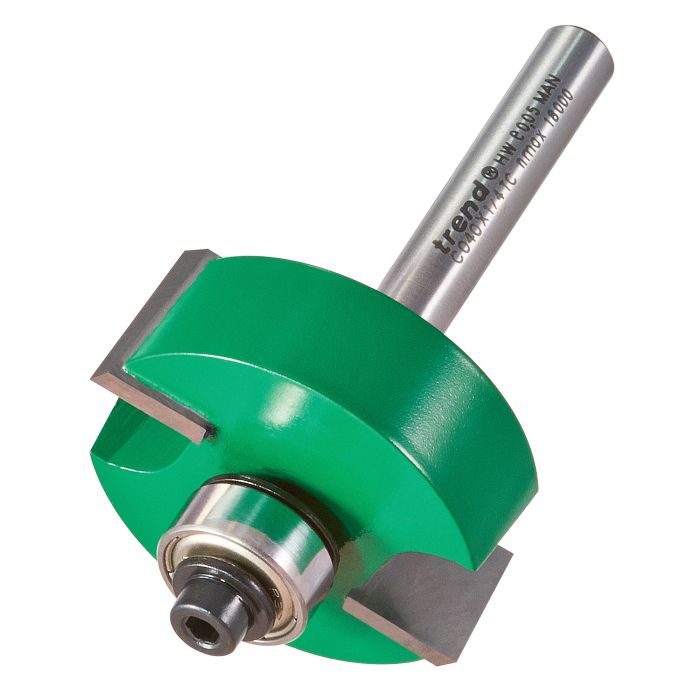

C040X1/4TC - Self guided rebater 35mm diameter x 12.7mm cut

C040X1/4TC
£46.49
£38.74

Trend Craft Pro 1/4in shank bearing guided rebating router cutter - 35mm diameter Two Flute Carbide tips.

  • Two flute carbide TCT tips for cleaner cutting edges and fast clearance of waste in all timber and timber based materials.
  • Bottom bearing guide for cutting rebates on curved and straight work with accuracy and ease.
  • Supplied with two bearings for 11.1 and 12.7mm wide rebates for glazing and panel work.
  • PTFE coating to minimise heat and resin build up for increased cutter performance and longevity.
  • 1/4in shank for easy control in smaller routers with 'K'mark shank to ensure safe working practices.
D
1 3/8 inch
D
35 mm
C
1/2 inch
C
12.7 mm
B
9.5 mm
B2
12.7 mm
E
11.1 mm
E2
12.7 mm
OL
65 mm
Shank Diameter
1/4 inch
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B127A - Bearing 1/2" diameter 3/16" bore B127A

Trend Router Cutter Bearing - for 3/16in bottom mounting

  • High quality ball bearing for free running against an edge to prevent heat build up.
  • 3/16in inside diameter for use on bottom mounted trimmer and profiling cutters.
  • 1/2in outside diameter for matched fit to trimming and templating cutters.
  • Bearings are grease packed for maximum efficiency and lifespan.
  • Shielding to both sides of the bearing prevents penetration of dust for maximum performance.
£6.56
B95A - Bearing 3/8" diameter 3/16" bore B95A

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
£8.22
SP-J - Spare part pack SP-J

Spare part packs make ordering spares easier.

  • Packs include, hex key (if required), screw, washer and shield (if required).
£2.68

Videos

Bearing Guided Cutter Video

Our video guide on how to use your bearing guided cutters, the different types and applications.
