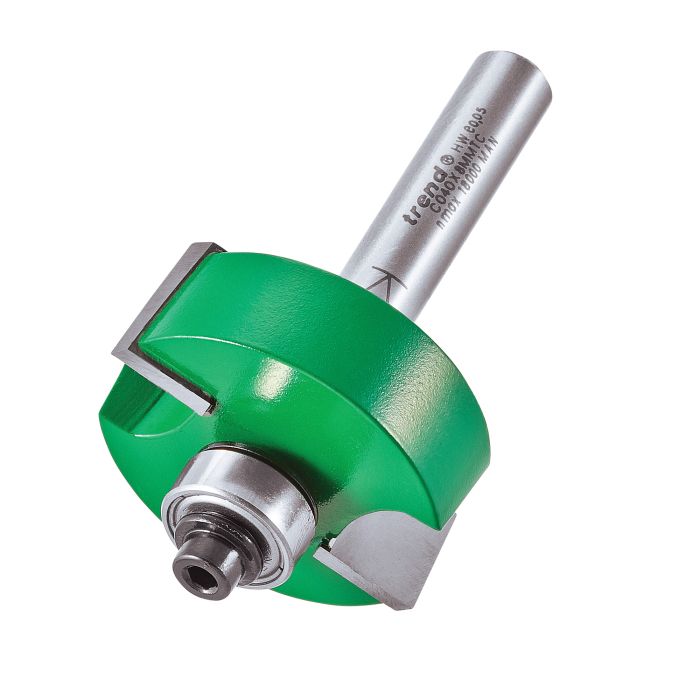

C040X8MMTC - Self guided rebater 35mm diameter x 12.7mm cut

C040X8MMTC
£47.88
£39.90

These cutters are self-guiding and can be used to produce rebates, lap joints, tongues and rebated corners.

  • When using bearing Ref. B95A make two passes when a full depth of cut is required.
D
1 3/8 inches
D
35 mm
C
1/2 inch
C
12.7 mm
B
9.5 mm
B2
12.7 mm
E
11.1 mm
E2
12.7 mm
OL
63 mm
Shank Diameter
8 mm
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B127A - Bearing 1/2" diameter 3/16" bore B127A

Trend Router Cutter Bearing - for 3/16in bottom mounting

  • High quality ball bearing for free running against an edge to prevent heat build up.
  • 3/16in inside diameter for use on bottom mounted trimmer and profiling cutters.
  • 1/2in outside diameter for matched fit to trimming and templating cutters.
  • Bearings are grease packed for maximum efficiency and lifespan.
  • Shielding to both sides of the bearing prevents penetration of dust for maximum performance.
£6.76
B95A - Bearing 3/8" diameter 3/16" bore B95A

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
£8.47

Videos

Bearing Guided Cutter Video

Our video guide on how to use your bearing guided cutters, the different types and applications.
