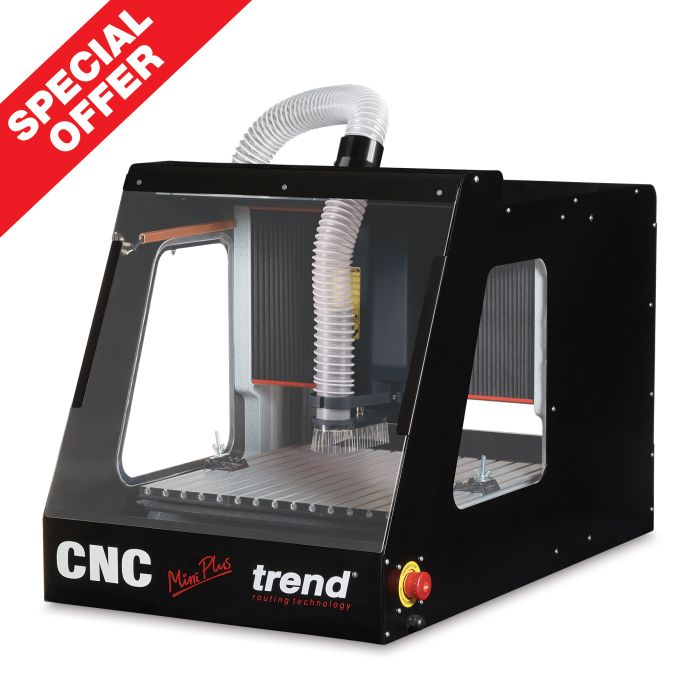

CNC/MINI/2E - CNC Mini Plus Engraving Machine Extra 240V - UK & Ireland sale only

CNC/MINI/2E
£3,904.81
£3,254.01

Latest desktop miniature engraving machine for 2D and 3D engravings, photo images and routing projects complete with easy to learn software.

  • CNC Carving Machine can create or import G-Codes for CNC carving programs. This function allows you to use additional software programs; such as VCarve, ArtCAM and BMP programmes.
  • Desktop model with micro switch fully guarded safety dust cover for safe operation making it ideal for education.
  • Table size 450mm x 440mm, with total engraving area (XYZ travel) 300mm x 300mm x 100mm.
  • Brushless 200 watt DC motor for low noise and durability with 1/4-inch collet capacity.
  • Use with hardwoods, soft woods, exotic woods, and many synthetic materials such as acrylic and ABS plastic, foam, modelling wax, styrene, epoxy board. Ideal for use with white, brown and clear acrylic to create highly detailed carvings.
  • Works with any PC computer running Windows XP up to Windows 10.
  • Endless possibilities in what you can create: use images from digital photos, CAD drawings, computer generated art programs, scanned images and more.
  • Includes a simple, straight forward common platform software package.
  • Includes 1/8-inch, 4mm and 1/4-inch collets.
  • Supplied with two solid carbide engraving cutters Ref. S66/2X4MMSTC & S66/4X4MMSTC.
  • For UK & Ireland only.

CNC Mini 2E

Bench-mounted machine for home craft business and education. With the addition of the optional extra Laser Engraver and Impact Dot Peen attachments the CNC Mini becomes a 3 in 1 machine for Routing, Laser Engraving and Metal Etching.

Plug & Play

Work Area of 300mm x 300mm

Brushless spindle for low noise & durability

Fully Guarded with Interlock Door

Dust Extraction Kit

3-in-1 Machine With Optional Accessories


Key Applications

Desktop engraving for 2D and 3D work

Photo Imagery

Routing Projects


Features

Work area of 300mm x 300mm

Plug and play using USB connection

Brushless 150-watt spindle for durability and low noise

Dust extraction kit fitted as standard

Will Rout, Engrave, Drill, Shape and Carve

Easy-to-use software with a bright uncomplicated user interface

Hand-held controller enables axis movement and feed speed control. This can be used in addition to software control

Fully guarded with an interlocked door and microswitch for maximum safety

Slotted machine table and clamps to hold the workpiece in place

Electronic features include Overload, Overheating & Overvoltage Protection

Ability to become a 3-in-1 machine with the addition of a laser engraver and a Dot peen attachment

Optional Collet ER-11 kit enables the use of 3.2mm, 4mm and 6.35mm shank cutters


Details

  • Plug and Play.

  • Fully guarded with interlocked door for maximum safety.

  • With a work area of 300mm x 300mm.

  • Dust extraction kit fitted as standard.

  • Basic design software included.

  • Brushless 150 watt spindle for durability and low noise.

  • Will Rout, Engrave, Drill, Shape and Carve.

  • Ability to become a 3-in-1 machine with the addition of a laser engraver and a Dot peen attachment.
  • Optional Collet ER-11 kit enables the use of 3.2mm, 4mm and 6.35mm shank cutters.

  • Works with industry-standard CAD/CAM software.

  • Great for Home hobby/startup business.


Featured Products

CNC/MINI/2E
Bench Mounted CNC Machine

Bench-mounted machine for home craft, business and education. With the addition of the optional extra Laser Engraver and Impact Dot Peen attachments the CNC Mini becomes a 3 in 1 machine for Routing, Laser Engraving and Metal Etching

CNC/MINI/2E
Desktop CNC Machine (240V)

DEAL/CNC/MINI/2E
Bench-Mounted CNC Machine (240V) with VCarve software & ER11 collet kit


Optional Machine Accessories

Dot Peen Module
(CNCM/DPM)


Laser Module
(CNCM/LM)


Collet Kit - 3.2mm, 4mm, 6.35mm (CNCM/ER11/KIT)


Explore our Extensive Range of CNC Router Cutters

Trend Proffessional Router CuttersTrend Proffessional Router Cutters

Learn about the Yeti Trend CNC Smartbench


Discover more about Trend CNC Machines

CNC Mini 1E Information

Sawblade Range SpotlightSawblade Range Spotlight

CNC Products

Shop Trend SawbladesShop Trend Sawblades

CNC Machine Videos

Watch Trend Sawblade VideosWatch Trend Sawblade Videos
Voltage
240 volt
Table size X-axis
450 mm
Table size Y-axis
440 mm
Table load weight max.
5 kg
Max.movement X-axis
300 mm
Max.movement Y-axis
300 mm
Max.movement Z-axis
100 mm
Max. material thickness
100 mm
Max. engraving speed
2500 mm/min
Min. engraving speed
25 mm/min
Resolution mechanical
0.02 mm/step (0.001 inch/step)
Resolution software
0.02 mm (0.001 inch)
Power supply input
220-240V
Power supply output
DC 24V 6.5A
Spindle motor
200 watt DC Brushless
Power consumption
2.0A
Collet capacity max.
1/4-inch
Operating noise level
39.6 dB(A) standby
No loading operation noise
<66 dB(A)
Spindle speed
0-20000 rpm
Interface
USB 2.0
System requirements
PC running Windows XP up to Windows 10
Machine size depth
925 mm
Machine size width
597 mm
Machine size height
633 mm
Weight
54.5 kg
End of life
See below for Environmental Policy link

For UK & Ireland only

no spare products

Videos

CNC Mini Video - Demonstration

Demonstration of the New CNC Mini in action.

CNC Mini Software - Overview

An overview of the CNC Mini & Software

CNC Mini Video - 3D Demonstration

Demonstration of the New CNC Mini cutting a 3D Relief.
