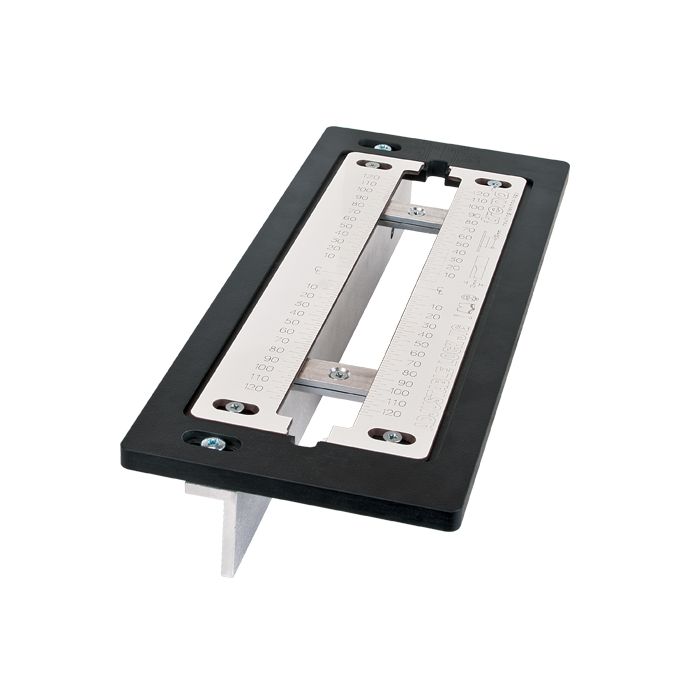

LOCK/JIG/B - Adjustable Trade Lock Jig

LOCK/JIG/B
£137.50
£114.58

Trend Lock Jig for mortice locks and latches - for faceplates up to 250 long

  • Infinitely adjustable sliding plates and stops for mortice and faceplates from 30mm up to 250mm long, ideal for use with obscure sized locks as well as all standard locks and latches.
  • For use in a 1/2in capacity router with 80mm plunge capacity fitted with a 30mm guidebush and 12mm cutter.
  • Suitable trend cutters: 3/75X1/2TC, TR37X1/2TC, C172X1/2TC"
  • Engraved on underside to allow fast, accurate set up for common door widths of 35mm, 40mm, 44mm and 54mm.
  • The infinite adjustment range makes it the ideal jig for fitting the mortice positions for multi point lock strips into wooden doors.
  • With its adaptable sliding plate and stop adjustments it can be used with different guidebush diameters and straight cutters for general mortice work in construction projects.
Door thickness min.
30 mm
Door thickness max.
80 mm
Faceplate length min. (OL)
30 mm
Faceplate length max. (OL)
250 mm
Width
22.5 mm
Width
25.4 mm (1 inch)

Mortise width engraved size (D)

Width
16 mm (5/8 inch)
Width
19 mm (3/4 inch)
Min./Max, width
12 mm/26 mm
Product Image Product Ref Diagram No Description Quantity Required Price for 1
WP-LOCK/B/02 - Sliding inserts pair for LOCK/JIG/B WP-LOCK/B/02 2

Pair of sliding inserts for LOCK/JIG/B.

    1 £25.66
    WP-LOCK/B/03 - Alloy stop two part for LOCK/JIG/B WP-LOCK/B/03 3

    Alloy stop two part for LOCK/JIG/B.

      2 £11.55
      WP-LOCK/B/05 - Setting block nylon pair LOCK/JIG/B WP-LOCK/B/05 5

      Pair of nylon setting blocks for LOCK/JIG/B.

        1 £11.55
        WP-SCW/119 - M6 x 16mm pan Pozi machine screw WP-SCW/119 6

        Replacement screw.

          1 £1.48
          WP-SCW/120 - M5 x 10mm countersunk Pozi machine screw WP-SCW/120 7

          Machine screw.

            1 £1.48
            WP-SCW/121 - M5 x 8mm countersunk Pozi machine screw WP-SCW/121 8

            Machine screw.

              1 £1.48

              Videos

              Lock Jig Video

              Using the Lockjig to rout a door lock.

              Tibby Singh Trend Lock Jig Demo Video

              Tibby Singh Demonstrates the Trend Lock Jig - D&M Show 2015.
