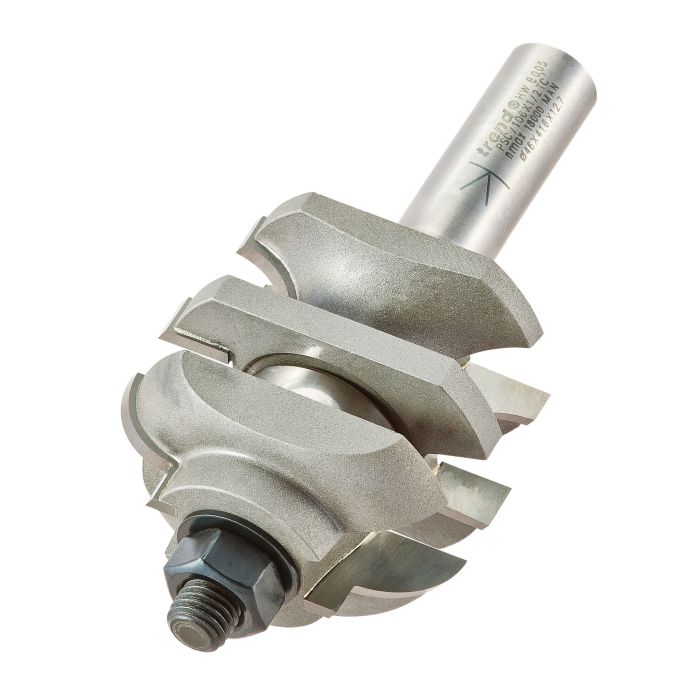

PSC/106X1/2TC - Easyset profile scribe set

PSC/106X1/2TC
£151.18
£125.98

These tools produce the same type of joint & use the same components as the combination PSC sets.

  • Both parts of the joint are cut by only changing the cutter height.
  • No reassembly of parts is required, to convert the tool from scribing mode to profiling mode and vise-versa.
  • Router table use only.
D
46 mm
D2
42 mm
C
15 mm
C2
6.3 mm
B
22 mm
R
10 mm
OL
80 mm
Shank Diameter
1/2 inch
Timber thickness min.
21 mm
Timber thickness max.
26.5 mm

For stationary machines at max. recommended speed 18,000 RPM

Product Image Product Ref Diagram No Description Quantity Required Price for 1
33/32X1/2 - Arbor for groover 33/32X1/2

Replacement arbor for the PSC/106X1/2TC

    £18.00
    SP-34/73ATC - Groover SP-34/73ATC

    Replacement groover for the PSC/106X1/2TC & PSC/107X1/2TC.

      £32.29
      SP-PSC/106A - Profile block for PSC/106 concave SP-PSC/106A

      Replacement profile block concave for PSC/106X1/2TC.

        £80.15
        SP-PSC/106B - Profile block for PSC/106 convex SP-PSC/106B

        Replacement profile block convex for PSC/106X1/2TC.

          £80.15
          SPACER/8 - Spacer set 8mm bore SPACER/8

          A set of thirteen 8mm spacers and shims.

          • Comprises two spacer/shims of each thickness, and one extra 0.05mm shim.
          £9.02
