RS/JIG - Router Surfacing Jig

Name: RS/JIG - Router Surfacing Jig
SKU: RS/JIG
Price: 133.99 GBP
Availability: InStock

RS/JIG

£133.99

£111.66

Adaptable compact jig for flattening, surfacing and trenching work on wide or irregular shaped material

IDEAL FOR WIDER MATERIALS Surfaces and flattens stock up to 400mm wide
END GRAIN ROUTING Routing cut across the surface of end grain for clean finish
CONTROLLED CUTTING Depth of cut can be easily controlled with the router plunge for fine skimming cuts or deeper levelling cuts
BI-DIRECTIONAL CUTTING Can be used across or along the grain
HPL MATERIAL High Pressure Laminate running rails and router cradle for wear-free performance, accuracy and durability
TWIN 12MM STAINLESS STEEL RAILS Supports heavier routers up to 7Kg weight without distortion
FIXED POSITION CRADLE Cradle can be locked to the bars for single axis movement such as trenching cuts
NO FIXED SUB BASE REQUIRED Simple guide bush location cradle for fast set up and removal
30MM GUIDE BUSH CONNECTION Links to the cradle with 30mm guide bush for compatibility with multiple brands and router sizes
EXTENDABLE DESIGN Additional running rails can be added for longer sleds
SLIM MODULAR DESIGN Easily stores away saving workshop space

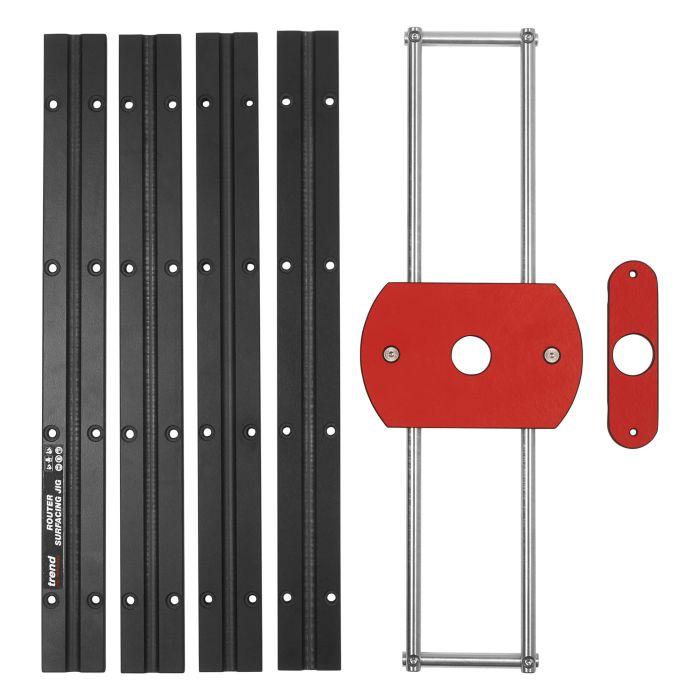

RS/JIG Router Surfacing Jig

Features

Tri-directional cutting across the grain, along the grain, and across the end grain.

Compact Grade HPL Cradle & Rails for precision, strength and durability.

12mm Stainless Steel Rails support routers up to 7kg across materials 400mm wide.

Guide Bush Cradle is compatible with any router using a 30mm guide bush, and requires no additional fixings or sub-base.

Lockable Cradle for single-axis movement. Ideal for trenching cuts.

Extendable Design accommodates additional rails for longer materials.

Compact Modular Construction stores easily.

Depth of cut can be easily controlled with the router plunge for fine skimming cuts or deeper levelling cuts.

Requires: router (½”/12mm collet – min.1300W), cutter (½”/12mm shank), and guide bush (30mm diameter).

Details

Tri-directional cutting across the grain, along the grain, and across the end grain.
Compact Grade HPL Cradle & Rails for precision, strength and durability.
12mm Stainless Steel Rails support routers up to 7kg across materials 400mm wide.
Guide Bush Cradle compatible with any router using a 30mm guide bush, and requires no additional fixings or sub base.

Lockable Cradle for single axis movement. Ideal for trenching cuts.
Extendable Design accommodates additional rails for longer materials.
Compact Modular Construction stores easily.
Requires: router (½”/12mm collet – min.1300W), cutter (½”/12mm shank), and guide bush (30mm diameter).
