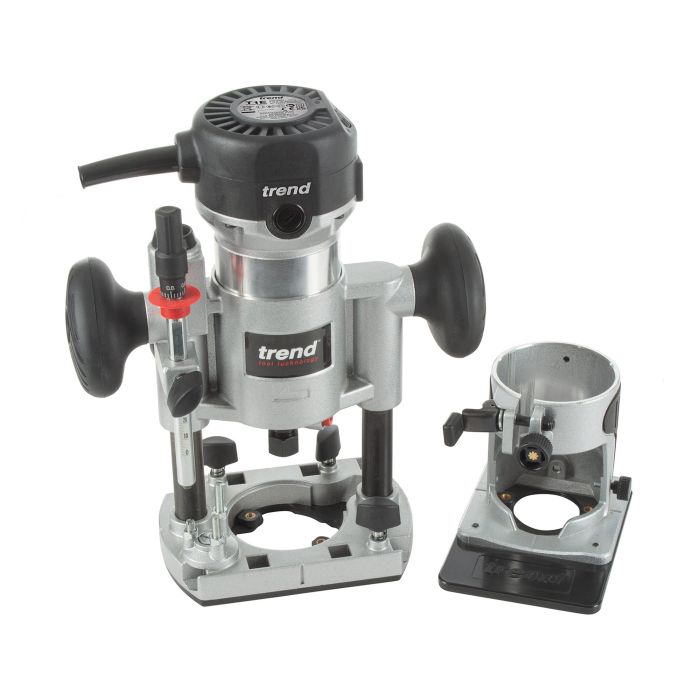

T1EPS/EURO - 710W 8mm Dual-Base Trim & Plunge Router 230V EU
710W Motor with Soft-Start to prevent kick-back and protect the workpiece.
- Extended Trim Base with Rack & Pinion Height Adjustment and up to 37mm cut depth.
- Plunge Base with 60mm Plunge Depth for light-duty jig, deep or long-reach cutting applications such as hinge fitting, trenching or intumescent strip installation.
- Precision Centring System to ensure concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.
- 6-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
- Constant Speed Control monitors the spindle RPM and adjusts automatically to maintain cutter speed for smooth and consistent cuts.
- Double Locking Collet prevents accidental cutter ejection while a multi-spline profile ensures concentric clamping of the cutter shank.
- Fine Height Adjuster** with an easy-to-read 0.2mm increment display for precision depth adjustments.
- Height-Adjustable 3-Position Rotating Turret** for fast, repeatable batch and stepped cutting.
- Compact Inclined Handles** feature a soft grip moulding for comfortable operation
- Offset Dust Extraction Spout** for an unimpeded view of the workpiece.
- Compatible with Trend Guide Bushes for jig use, templating and inlaying.
- Adjustable Side Fences for templating and edge rebating.
- *3 year warranty – Online registration required
- **Plunge base only**
*Discount automatically applied when both items are added to cart
T1EPS 710W ¼” Dual-Base Trim & Plunge Router
Flexible, light and compact router with trim and plunge bases. Perfect for laminate trimming, grooving, hinge cutting and timber profiling.
Key Applications
Edge Moulding
Hinge Fitting and Grooving
Templating and Profiling
Features
710W Motor with Soft-Start to prevent kick-back and protect the workpiece.
Extended Trim Base with Rack & Pinion Height Adjustment and up to 37mm cut depth.
Plunge Base with 60mm Plunge Depth for light-duty jig, deep or long-reach cutting applications such as hinge fitting, trenching or intumescent strip installation.
Precision Centring System to ensure concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.
6-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
Double Locking Collet prevents accidental cutter ejection while a multi-spline profile ensures concentric clamping of the cutter shank.
Fine Height Adjuster* with an easy-to-read 0.2mm increment display for precision depth adjustments.
Height-Adjustable 3-Position Rotating Turret* for fast, repeatable batch and stepped cutting.
Compact Inclined Handles* feature a soft grip moulding for comfortable operation
Offset Dust Extraction Spout* for an unimpeded view of the workpiece.
Compatible with Trend Guide Bushes for jig use, templating and inlaying.
Adjustable Side Fences for templating and edge rebating.
Details
-
710W Motor with Soft-Start to prevent kick-back and protect the workpiece.
-
Extended Trim Base with Rack & Pinion Height Adjustment and up to 37mm cut depth.
-
Plunge Base with 60mm Plunge Depth for light-duty jig, deep or long-reach cutting applications such as hinge fitting, trenching or intumescent strip installation.
-
Precision Centring System to ensure concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.
-
6-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
-
Double Locking Collet prevents accidental cutter ejection while a multi-spline profile ensures concentric clamping of the cutter shank.
-
Fine Height Adjuster with an easy-to-read 0.2mm increment display for precision depth adjustments.
-
Height-Adjustable 3-Position Rotating Turret* for fast, repeatable batch and stepped cutting.
-
Compact Inclined Handles* feature a soft grip moulding for comfortable operation
-
Offset Dust Extraction Spout for an unimpeded view of the workpiece.
-
Compatible with Trend Guide Bushes for jig use, templating and inlaying.
-
Adjustable Side Fences for templating and edge rebating.
-
Tough Polyester Kit Bag for storage of the router and all accessories.
Featured Products
T1EPS
710W ¼” Dual-Base Trim & Plunge Router
Flexible, light and compact router with trim and plunge bases. Perfect for laminate trimming, grooving, hinge cutting and timber profiling.
T1ETS
710W ¼” Trim Router
Flexible, light and compact router. Perfect for laminate trimming and timber profiling.
Related Products

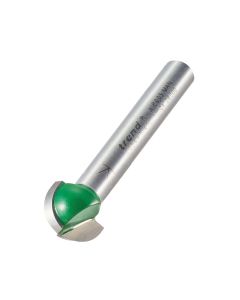

Explore our Extensive Range of Router Cutters
Discover more about Trend Routers
Router Videos
Router Products
Router Instructions
- Duty Rating
- Light
- Motor Power
- 710W
- AC Voltage
- 230V
- Plug Type
- EU 2 pin
- Supplied Collet Size
- 8mm
- Plunge Stroke (Max)
- 60mm
- Cutter Height Adjustment - Trim Base
- 37mm
- No Load Speed
- 10,000-30,000rpm
- Supplied Guide Bush
- 16mm (GB160)
- Fence Rod Length
- 300mm
- Fence Rod Centres
- 84mm
- Fence Rod Diameter
- 8mm
- Base Aperture Diameter
- 40mm
- Cutter Diameter (Max)
- 35mm
- Dust Spout Internal Diameter
- 35mm
- Weight of Base - Trim
- 0.32kg
- Weight of Base - Plunge
- 1.35kg
- Weight of Motor
- 1.49kg
- Sound Pressure (Lpa)
- 85 dB(A)
- Acoustic Pressure (Wpa)
- 96 dB(A)
- Hand/Arm Vibration - Trim Base
- 4.6m/s2
- Hand/Arm Vibration - Plunge Base
- 4.5m/s2
- Power Cable Length
- 3m
- Router Table Compatible
- No
- End of Life
- See environmental policy
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
WP-T18/R14035 | Replacement Plunge Base Plate for T18S/R14. |
£7.49 | ||
|
WP-T18/R14038 | Replacement Compression Spring for T18S/R14. |
£3.71 | ||
|
WP-T18/R14042 | Replacement Hex Lock Nut M5 for T18S/R14. |
£3.78 | ||
|
WP-T18/R14044 | Replacement Lock Lever for T18S/R14. |
£5.42 | ||
|
WP-T18/R14046 | Replacement Lock Lever Handle for T18S/R14 |
£11.19 | ||
|
WP-T18/R14049 | Replacement Lever Lock Spring for T18S/R14 |
£4.03 | ||
|
WP-T18/R14050 | Replacement Copper Screw for T18S/R14 |
£6.79 | ||
|
WP-T18/R14051 | Locking Knob for T18S/R14. |
£4.80 | ||
|
WP-T18/R14066 | Replacement Trimmer Lock Lever for T18S/R14. |
£4.51 | ||
|
WP-T18/R14068 | Replacement Knob for T18S/R14. |
£4.14 | ||
|
WP-T18/R14069 | Replacement Trim Base Dust Spout for T18S/R14. |
£7.14 | ||
|
WP-T18/R14071 | Replacement Trim Base Plate for T18S/R14. |
£8.66 | ||
|
WP-T18/R14075 | Replacement Thumb Screw for T18S/R14. |
£4.21 | ||
|
WP-T18/R14081 | Replacement Spindle Lock Button for T18S/R14 |
£4.21 | ||
|
WP-T18/R14090 | Replacement Switch & Controller for T18S/R14 |
£87.69 | ||
|
WP-T18/R14094 | Replacement Rubber Pin 5 x 8mm for T18S/R14 |
£3.93 | ||
|
WP-T18/R14108 | Relaement Wrench 17mm for T18S/R14 |
£5.65 | ||
|
WP-T18/R14109 | Replacement Fine Height Adjuster Assembly for T18S/R14 |
£10.59 | ||
|
WP-T18/R14111 | Replacement Centring Pin Assembly for T18S/R14
|
£8.66 | ||
|
WP-T18/R14113 | Replacement Plunge Base Dust Spout Assembly for T18S/R14 |
£9.15 | ||
|
WP-T18/R14115 | Replacement Motor Assembly for T18S/R14 |
£143.73 | ||
|
WP-T18/R14117 | Replacement Trim Base Fence Assembly for T18S/R14 |
£15.18 |
