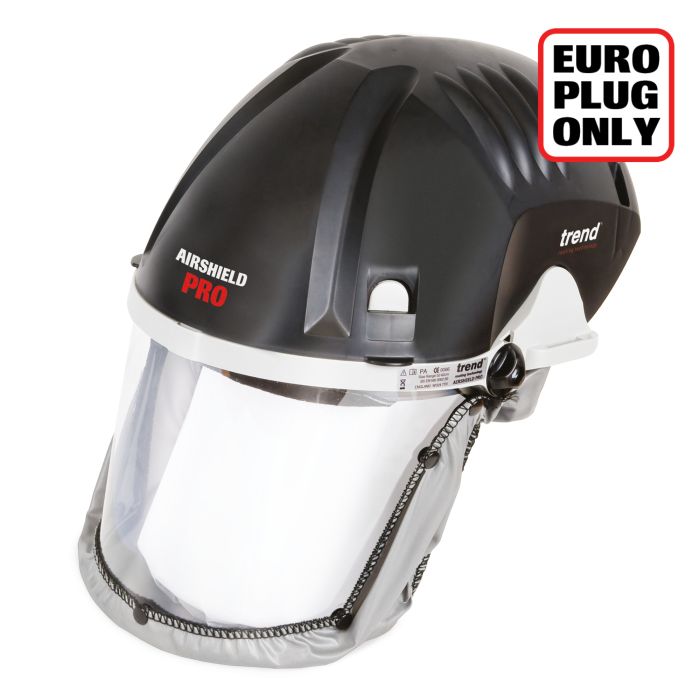

AIR/PRO/EUR - Airshield Pro PAPR APF 20 Respirator 230V Euro plug - Authorised distributors only
Battery powered respirator for use with all woodworking applications. Euro plug version available through authorised distributors only.
- Assigned Protection Factor APF20, offering greater protection over APF10.
- Suitable for use when machining MDF.
- Approved to standard BS EN 12941 TH2P-S.
- Approved to EN166.
- Optical class 1B3 for high speed particles - medium energy impact, liquid droplets and splashes.
- Click Here to download our respiratory protection selection guide
- Combination face-seal and hood to improve protection.
- Motor positioned away from the sensitive area of the forehead to reduce noise and irritation.
- Attachment points for optional ear defenders.
- Strategic component distribution ensure optimum centre of gravity is achieved for balance and comfort.
- Twin filters with efficiency of 98%.
- Audible low battery warning.
- Removable 8 hour Ni-MH battery.
- Not for UK sale.
- For Euro socket only.
- Contact authorised distributor in your country for availability.
All-In-One Battery Powered Respirator
APF20 Positive pressure full-face respirator for use with all woodworking applications.
Features
All in one powered respirator giving eye and respiratory protection with no trailing leads for safer operation when moving around the workplace.
For use in environments where fine airborne particles are present, dangers of flying debris or excessive noise levels.
No problems with misting, fogging or steaming up ensuring crystal clear vision at all times. Suitable for users with facial hair or spectacle wearers.
8 hour Ni-MH battery for all day use with audible low battery warning and on board battery charging.
Twin THP2 fine filter with 98% efficiency, suitable for use when machining MDF.
Rated to Optical class 1B3 for high speed particles - medium energy impact, liquid droplets and splashes.
Details
- Assigned Protection Factor APF20, offering greater protection over APF10.
- Suitable for use when machining MDF.
- Approved to standard BS EN 12941 TH2P-S.
- Approved to EN166.
- Optical class 1B3 for high speed particles - medium energy impact, liquid droplets and splashes.
- Combination face-seal and hood to improve protection.
- Motor positioned away from the sensitive area of the forehead to reduce noise and irritation.
- Twin filters with efficiency of 98%.
- Audible low battery warning.
- Removable 8 hour Ni-MH battery.
- For UK & Eire sale only.
- COSHH Maintenance & Examination Record included.
Related Products
Accessory Ear Defenders Now Available
Click here for more information on the Trend Safety Mask Range
Click Here to download our detailed respiratory protection selection guide.
For Euro socket only.
Contact authorised distributor in your country for availability.
- Rating
- DIY/Craftsman/Professional
- Airflow min.
- 160 l/min
- Airflow fully charged
- 200 l/min
- Size of headband
- 52cm-62cm
- Motor sound level
- 70dB
- Battery
- 8hr
- Weight
- 995g
- Voltage
- 230v
- Charger plug type
- EU Euro 2 pin
- Eye protection
- BS EN 166:2002 (Medium Energy Impact)
- Optical class
- 1
- Mechanical strength
- B - High speed particles, medium energy impact
- Field of use
- 3 - Liquid droplets and splashes
- Respiratory protection (NPF50)
- BS EN 12941 TH2P-S
- Assigned Protection Factor
- APF20
- End of life
- See below for Environmental Policy link
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
AIR/P/1 | 19 | TH2P-S filter pack for the AIRSHIELD PRO.
|
1 | £38.93 |
|
AIR/P/3C | 20 | Trend AirPro Visor Overlays - pack of 10
|
1 | £28.94 |
|
AIR/P/4 | 21 | 8 hour battery for the AIRSHIELD PRO.
|
1 | £64.95 |
|
AIR/P/5/EURO | 21 | Battery charger for the AIRSHIELD PRO.
|
1 | £52.55 |
|
WP-AIR/P/01 | 01 | Replacement fan motor for the AIR/PRO. |
1 | £117.06 |
|
WP-AIR/P/02 | 02 | Replacement airflow indicator for the AIR/PRO. |
1 | £24.12 |
|
WP-AIR/P/03 | 03 | Replacement headcover and face seal for the AIR/PRO. |
1 | £64.63 |
|
WP-AIR/P/05 | 05 | Replacement switch and contact for the AIR/PRO. |
1 | £64.63 |
|
WP-AIR/P/07 | 07 | Replacement visor for the AIR/PRO. |
1 | £36.25 |
|
WP-AIR/P/10 | 10 | Replacement headband comfort pad for the AIR/PRO. |
1 | £11.34 |
|
WP-AIR/P/11 | 11 | Replacement pivot pin body for the AIR/PRO. |
2 | £6.06 |
|
WP-AIR/P/12 | 12 | Replacement pivot pin bolt for the AIR/PRO. |
1 | £6.89 |
|
WP-AIR/P/17 | 17 | Headband crown comfort pad to suit the AIR/PRO respirator. |
1 | £8.44 |
|
WP-AIR/P/18 | 18 | Replacement new style headband for the AIR/PRO. |
1 | £56.85 |
Videos
Airshield Pro Respirator Video - Demonstration
A demonstration of the Trend Airshield Pro Respirator.
Instructions
Safety Sheets
Spares Diagrams
Product Questions
The Airflow indicator supplied with the Air/Pro mask is a great tool to show the efficiency of the filter. It depends on how contaminated the enviroment is that your working in. Discolouration of the filter is also a good indication that the filter needs changing.
Yes you can.
The AIR/PRO can be used with grain dust.
The AIR/PRO is suitable when grinding metal.
No the AIR/PRO cannot be used in mining.
The AIR/PRO unit will give the user protection against dust and mold spores. For the sweeping up we would recommend that the filters and head cover-face seal are both changed to stop any cross contamination afterwards.
Soot is burnt coal or coke (carbon) in particulate form and the AIR/PRO filters are suitable for this job.
No the Airshield cannot be used for paint spraying.
It will provide full eye and face protection from chemical splashes but does not provide respiratory protection from liquid partials and toxic fumes. The AIRSHIELD PRO only provides respiratory protection from solid partials (dust).
The Airshield can be used with brick dust and also MDF dust.
The Airshield can be used when cutting and grinding sandstone. The standard filters should be used. The visor overlays should also be fitted to the visor.
Yes, the Airshield can be used when routing fibre glass (GRP).
Definitely do not use white spirit or anything similar as this will result in degrading of polycarbonate and reduction of protection level. Suggest only Isopropyl alcohol or the patient use of your thumb nail to clean off any residual adhesive from the overlays.
The Airshield can be used when powder coating as long as no solvents are used and the level of protection does not exceed 50 parts per million.
Clean internally and externally daily, visual inspection daily, charge battery pack daily, functional test daily, weekly and monthly. Dust from wood, grain, and cement may suit more frequent replacement of the filters. No filter should be left in the AIR/PRO for more than one month if in daily use or three months if used infrequently. A COSHH maintenance and record card is available on our downloads page.
The visor is made from polycarbonate plastic.
The batteries used are nickel cadmium and providing the charge and discharge cycles are observed the batteries will have no memory effect.
The battery charger for the Airshield is 230 volt AC/DC, with an output of 4.35v DC.|The charger is for indoor use only, and is splash protected to IP20. Spare UK chargers can be ordered on part number AIR/5/UK. European chargers are part number AIR/5/EURO.
The face seal should be pulled in towards the face and away from the visor. Do not be overly worried about this. The Airshield is a powered visor and therefore the pressure inside the visor is greater than the exterior so it is not possible for dust to leak into the breathing zone.
No filter should be left in the AIR/PRO for more than one month if in daily use or three months if used infrequently.
The Airshield has been designed so that the air flow passes over the face and over the inside of the visor and is exhaled through the vents rearwards. This ensures there is a flow of air over the face and prevents the visor from misting.
The Air/Pro will protect against Covid, but the air expelled is not filtered and will not protect the people around you.
None of our masks are suitable for abstestos because they cannot be cleaned sufficiently to be free from dust.
The Air/Pro is not suitable for Silica dust but the Air/pro Max is APF40 and is suitable. The half masks, including the Air Stealth & Stealth Lite, are not suitable.
During the pre-use check the flow indicator will alert you to either a low battery or a clogged filter. If the battery is charged and the red ball on the flow indicator is still not at the top of the tube, then this suggests the filter needs changing.
The THP 2 filter covers wood based carcinogenic dusts only.
Trend Respiratory Mask filters are efficient to above 95% against particles of 0.3 micron size. The filters in Europe are tested against a mixture of particle size (they are not mono-dispersed) according to EN143:1990. The particle size distribution graph in EN143 which the Airshield is tested shows that 90% of the particles are 0.2 micron or smaller and 70% of the particles are 0.1 and smaller. The Airshield filter is therefore very efficient. With respect to particulate size the filter will filter down to below 0.03 microns.
This normally depends on the type of hazard and concentration of the airbourne particulate. Generally if your dust mask is used daily in a very dusty environment then the filter should be changed weekly. If used in a less dusty environment the filter will normally last one month. If used infrequently the filter should be changed every three months. By changing the pre-filter regularly it will extend the main filter life.
The Airshield is one of the quietest products in the marketplace and typically the noise level is below 70dB. The workplace maximum level permitted is 80dB.
The recharge time is 14 hours from fully discharged or 3.5 hours per hour usage time.
The Airshield Pro has been ergonomically designed to work for longer periods of time. In this respect the comfort of the headband and the balance of the unit are optimised for user comfort. The Airshield Pro weighs 996 gm. The AirShield Pro Max weighs 1480 gm.
It is advisable to purchase a second charger (ref AIR/5/UK for a UK three pin plug or AIR/5/EURO for a European two pin plug). Two fully charger batteries should be fitted to the Airshield for 8 hour life, rather than one charged and one low charged battery, as this will lead to battery drain. As 14 hours is required to charge the battery, two chargers will allow both batteries to be charged overnight.
