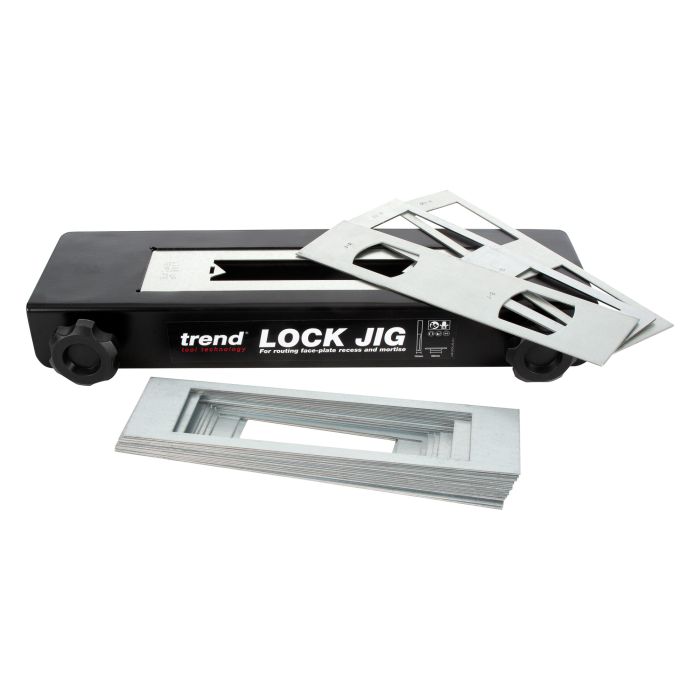

LOCK/JIG/C - Professional Lock Jig
A site-tough routing jig with interchangeable templates to cut lock & face-plate recesses in timber doors. Steel construction and tool-free setup deliver speed and accuracy. Ideal for all popular mortice sash locks, dead locks and tubular latches from leading ironmongery brands.
- Steel Construction for maximum strength, durability and accuracy.
- Full-Length Adjustable Fence to accommodate all doors between 34mm and 58mm thick.
- Quick-Release Clamps with non-marring pads ensure the jig is held securely.
- 20 Interchangeable Templates to suit all common lock case and face plate sizes.
- Easy Reference Chart ensures that correct templates are found quickly.
- Requires: ½”/12mm Plunge Router (80mm plunge depth), ½”/12mm Router Cutter (12mm cut diameter x 63mm cut length), and 30mm Guide Bush.
Professional Lock Jig
A site-tough routing jig with interchangeable templates to cut lock & face-plate recesses in timber doors. Steel construction and tool-free setup deliver speed and accuracy. Ideal for all popular mortice sash locks, dead locks and latches.
Key Applications
B
U
C
Features
Steel Construction for maximum strength, durability and accuracy.
Full-Length Fence secured with three locking levers adjusts the jig quickly and securely for all doors between 34mm and 58mm thick.
Thumb-Turn Quick-Release Clamps with non-marring pads, secure the jig quickly and easily.
20 Interchangeable Templates to fit all common lock case (8 templates) and face plates (12 templates).
Centering Insert ensures jig is perfectly positioned on any door
Guide Bush Collar converts the GB160 to a 30mm Guide Bush, minimising setup time.
Reference Chart provides quick reference between templates and lock sizes
2mm Height Spacers can be adjusted to accommodate different guide bush spigots.
Requires a router (½”/12mm collet with 80mm plunge), cutter (½”/12mm shank x 12mm cut diameter x 63mm cut length) and guide bush (30mm diameter x 6mm spigot).
Details
-
Steel Construction for maximum strength, durability and accuracy.
-
Full-Length Fence secured with three locking levers adjusts the jig quickly and securely for all doors between 34mm and 58mm thick.
-
Thumb-Turn Quick-Release Clamps with non-marring pads, secure the jig quickly and easily.
-
20 Interchangeable Templates to fit all common lock case (8 templates) and face plates (12 templates).
-
Centering Insert ensures jig is perfectly positioned on any door
-
Guide Bush Collar converts the GB160 (supplied with Trend Hinge Jigs) to a 30mm Guide Bush, minimising setup time.
-
Reference Chart provides quick reference between templates and lock sizes
-
2mm Height Spacers can be adjusted to accommodate different guide bush spigots.
-
Requires: router (½”/12mm collet with 80mm plunge), cutter (½”/12mm shank x 12mm cut diameter x 63mm cut length) and guide bush (30mm diameter x 6mm spigot).
Featured Products
LOCK/JIG/C
Contractor Lock Jig
A site-tough routing jig with interchangeable templates to cut lock & face-plate recesses in timber doors. Steel construction and tool-free setup deliver speed and accuracy. Ideal for all popular mortice sash locks, dead locks and latches.
Related Products
Discover more about Trend Door Hanging Solutions
Explore the Skeleton Hinge Jig
Door Hanging Products
Door Hanging Videos
- Door thickness min.
- 34 mm
- Door thickness max.
- 58 mm
Faceplate Templates:
- 25.4 x 60.0mm (Tubular Latch)
- 22(A)
- 24.0 x 57.5mm (Tubular Latch)
- 22(B)
- 26.0 x 56.5mm (Tubular Latch)
- 23(A)
- 26.0 x 57.5mm (Tubular Latch)
- 23(B)
- 22.2 x 128.5mm
- 20
- 22.2 x 155.0mm
- 1
- 22.5 x 152.5mm
- 2
- 25.4 x 121.0mm
- 3
- 26.0 x 134.0mm
- 5
- 25.4 x 153.0mm
- 7
- 25.4 x 165.5mm
- 9
- 25.4 x 177.0mm
- 10
- 26.0 x 139.0mm
- 21
- 26.0 x 162.0mm
- 12
Mortise Templates:
- 19 x 22mm (Tubular Latch)
- J(A)
- 22 x 24mm (Tubular Latch)
- J(B)
- 16 x 72mm
- A
- 16 x 102mm
- F
- 16 x 109mm
- B
- 19 x 78mm
- C
- 19 x 90mm
- E
- 19 x 109mm
- D
- 19 x 115mm
- H
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
GB/COLL/1630 | Aluminium collar to fit guide bushes.
|
£9.14 | ||
|
MAG/PACK/1 | These magnets are nickel plated and incredibly strong making them ideal for a variety of workshop applications with endless possibilities.
|
£12.75 | ||
|
WP-LOCK/04 | Replacement mini knob for the LOCK/JIG. |
£5.82 | ||
|
WP-LOCK/05 | Replacement adjustable lever M8 for the LOCK/JIG. |
£7.64 | ||
|
WP-LOCK/06A | Replacement knob for the LOCK/JIG. |
£8.76 | ||
|
WP-LOCK/08A | Replacement plastic cap for the LOCK/JIG. |
£2.01 | ||
|
WP-LOCK/T/LUP | Line up template for LOCK/JIG.
|
£14.20 |
Videos
Lock Jig C
LOCK/JIG/C video
