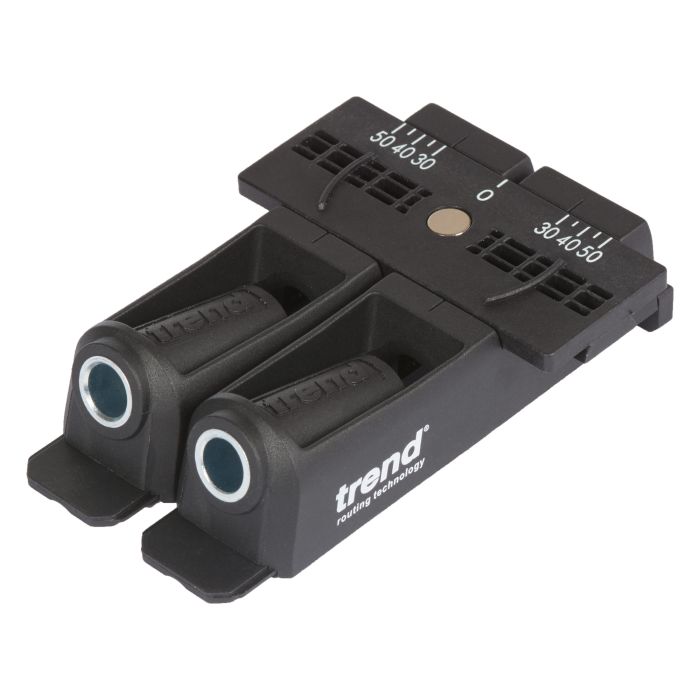

PH/JIG/BK - 3-in-1 Pocket Hole Jig


Multi-function jig for drilling 9.5mm pocket hole joints suited to both new and repair work. Lightweight glass-fibre reinforced nylon construction with full-length, hardened drill guide bushes. Unique drill depth setting system for fast set-up on materials from 12.7 to 38mm. Adjustable centres are ideal for narrow and wide stock, and detachable drill guides are perfect for narrow repairs in confined spaces.

  • Material Thickness Gauge allows fast checking of material thickness without the use of a tape measure.
  • Pre-set Depth Gauge adjusts the pocket position to suit the timber thickness.
  • Drill Bit Setting Gauge is used to set the correct drilling position for materials between 12.7mm and 38mm thick.
  • Full-Length Hardened Drill Guide Bushes for long life and accurate drilling.
  • Repositionable Drilling Guides allow the hole centres to be altered between 28mm and 50mm ensuring stronger joints in wider material.
  • Woodchip Relief Holes help protect against clogging inside the drilling guides.
  • Flip-Over End Stop allows the jig to hook over for an external joint or butt up to an edge for an internal joint.
  • Pocket Hole Guides can be removed and used as single pocket hole jigs for narrow stock or repairs.
  • Magnetic Clamp Position allows a face clamp to attach to the jig for easier repositioning.
  • Centering Plate Index for setting the drill guides to pre-set positions.
  • Glass Fibre Reinforced Nylon Body minimises weight whilst retaining strength.

3 in 1 Pocket Hole Jig

Ideal for fast and accurate joining of solid timber and sheet materials giving strong instant joints

Multi-function design for twin hole or single hole pockets

Makes strong secure joints in seconds

Works with all timber thicknesses from 12mm (¹⁵/₃₂") to 38mm (1 ¹/₂").

For new work, repair work and different thickness materials


Simple slide adjustment for 28mm (1 ⁷/₆₄") – 50mm (1 ³¹/₃₂") centres.

Built in depth gauge for fast drill depth setting.

The jig hooks over the end of the material for accurate positioning on new work.

The small plate slides in for single hole applications to allow it to be clamped to the work.

Easy to locate in situ for repair work.

Fast, strong and quick construction for impressive projects.




  • Hardened drilling sleeves for accurate, consistent pockets.
  • Works with timber thicknesses from 12mm (¹⁵/₃₂") to 38mm (1 ¹/₂").
  • Multi-function design for twin hole or single hole pockets.
  • Perfect for wide or for narrow stock components.
  • Portable and adaptable for multiple jointing styles and applications.
  • Reversible depth gauges, ideal for new work and repair work.
  • Build cabinets, furniture, and small joinery projects with ease.
  • Tool free, fast and easy set up.
  • Built in drill depth gauge.
  • Supplied with drill, driver bit and a selection of screws.
  • Ideal for jointing in hard and softwoods and sheet materials.

Related Products

Material thickness min.
12.7 mm
Material thickness max.
38 mm
Hole pitch
28 to 50 mm
Drilling angle
15 degrees
Screw size
Fine No.7 x 30 mm
Screw sizes
Coarse No. 7 x 25 mm, No.7/8 x 30 mm, No.8 x 37 mm, No.8 x 50 mm, No.8 x 63 mm
Product Image Product Ref Diagram No Description Quantity Required Price for 1
PH/COLL/95 - Pocket hole drill collar 9.5mm PH/COLL/95 10

Pocket hole drill collar.

    1 £5.52
    PH/DRILL/95QS - Pocket hole drill 9.5mm short shank PH/DRILL/95QS 09

    A short shank 9.5mm diameter stepped High Speed Steel drill for use with Pocket Hole Jigs.

    • Supplied with depth setting collar.
    • Can be fitted to the Quick Chuck or directly into the drill chuck.
    1 £21.55
    SNAP/SQ/2B - Trend Snappy square No 2 bit 150mm OL SNAP/SQ/2B 11

    Trend Snappy Robertson No2 Driver Bit - 150mm long

    • 150mm long bit ideal for use with Trend Pocket Hole screws and Pocket hole Jigs
    • Allows screws to be driven in easily at the correct angle when assembling pockethole joinery without the drill chuck catching the workpieces.
    • For use with Robertson screws; the ideal fixing for maximum driving performance without cam out issues.
    • 1/4in hex shank for a direct fit for impact drivers or all Trend Snappy chucks ensuring fast swapping between accessories.
    • Bit size of1/8in (3.2 mm) covers the most popular screw sizes.
    1 £9.73
    WP-AP/03 - Hex key short arm 3mm A/F WP-AP/03 20

    Replacement hex key.

      1 £1.42


      3 in 1 Pocket Hole Jig Overview

      Overview of the 3 in 1 Pocket Hole Jig

      Product Questions

      Yes, the jig can be used to create pockets for mitred frame corner joints. It may be necessary to tilt the pocket hole piece so that the hole is not perpendicular to the mitred edge, so as to prevent the pocket from breaking out of the top edge.
