PH/JIG - Pocket Hole Jig

PH/JIG
£123.06
£102.55

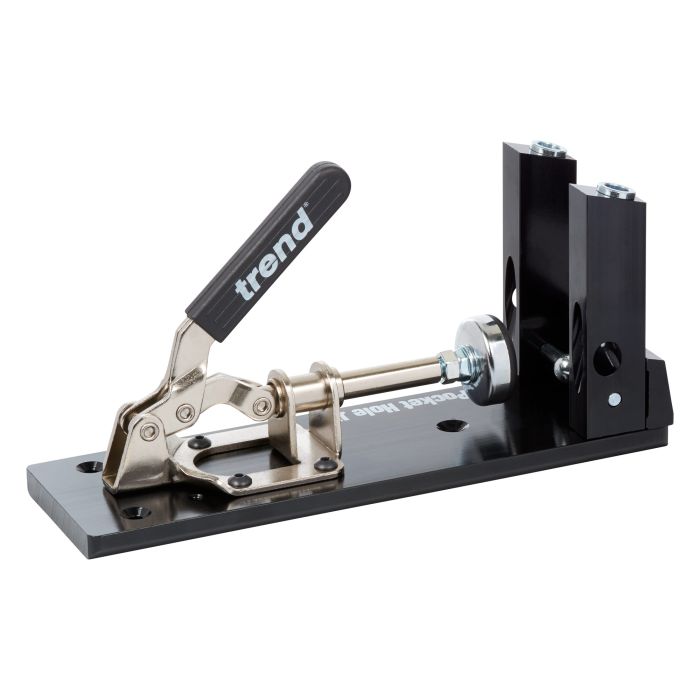

All-metal Pocket Hole Jig for drilling 9.5mm pocket hole joints suited to both new and repair work. Adjustable hole centres for narrow and wider stock, ideal for carcase and face framework, designed for 16mm to 19mm thick material. Can be bench-mounted for batch work or guides can be used independently for in-situ internal applications.

  • Repositionable Drilling Guides allows the hole centres to be altered between 29mm and 63mm ensuring stronger joints in wider material.
  • Removable Drilling Guides can be used independently for repair work and inaccessible areas.
  • Fixed Height Drilling Guides for materials from 16mm to 19mm (5/8” to 3/4”) accommodates common plywood, MDF and furniture board thicknesses.
  • On-Board Adjustable Clamp with quick-release mechanism
  • Secondary Clamp Position allows the clamp to reposition for wider stock.
  • Woodchip Relief Holes helps protect against clogging inside the drilling guides.
  • Full Length Hardened Drill Guide Bushes for long life and accurate drilling.
  • Non-Marring Clamp Pad prevents pressure marks on the workpiece.
  • Countersink Screw positions allows the jig to be screwed to a base board for extra support.

Multi-function Pocket Hole Jig

Ideal for fast and accurate joining of solid timber and sheet materials giving strong instant joints

Multi-function design for twin hole or single hole pockets

Makes strong secure joints in seconds

Works with all timber thicknesses from 12mm to 38mm

For new work, repair work and different thickness materials

Features

Adjustable spacing to allow pitch from 29mm to 63mm.

Workpiece can be quickly clamped to the jig for quick and easy usage.

Clearance holes on both columns allow for swarf to be cleared.

Workpiece can be handled immediately after gluing & screwing creating time saving benefits.

Allows a variety of joints to be created individually in timber, MDF, plywood and blockboard.

Fast, strong and quick construction for impressive projects with no additional clamps required.



Details



  • Solid hardened bushes with variable pitch of 29mm to 63mm.
  • Use on timber, MDF, plywood and blockboard.
  • Allows a variety of joints to be created individually.
  • No clamps required.
  • Square drive self tapping screws for use with a No.2 square drive bit to resist slipping (cam out).
  • Workpiece can be handled immediately after gluing & screwing creating time saving benefits.

Related Products

Material thickness min.
16 mm
Material thickness max.
19mm
Max. thickness possible (screwed from two sides)
38 mm
Material width min.
38 mm
Hole pitch
29 mm-63 mm
Drill diameter
9.5 mm
Square drive bit size
No.2
Screw size
Fine No.7 x 30 mm
Drilling angle
15 degrees
Product Image Product Ref Diagram No Description Quantity Required Price for 1
PH/7X30/500 - Pocket Hole Screw Fine Thread No.7x30mm PH/7X30/500 013

Square drive, self-tapping, solid steel wood screws coated with Zinc to protect against rusting, ideal for a variety of indoor projects. 30mm length coarse thread to suit 19mm hard woods such as oak, ash, maple and more. Designed for use with Pocket Hole Jigs.

  • Zinc-Coated Steel protects the screw against moisture, preventing rust.
  • Self-Tapping Tip ensures wood doesn’t split, producing a strong, clean joint.
  • Flange Head maximizes joint strength and prevents over-tightening.
  • No.2 Robertsons Square Head provides maximum grip ensuring the bit doesn’t slip whilst driving at an angle.
  • Fine Thread makes this screw ideal for hard woods.
1 £15.98
PH/CLAMP/F6 - 35mm Pocket Hole Jig Face Clamp PH/CLAMP/F6 017

For clamping portable pocket hole jigs to material up to 19mm thick.

  • 35mm Clamping Capacity for securing materials up to 19mm thick.
  • 45mm Clamping Depth perfect for narrow width materials.
  • 960Nm Concentric Clamping Force ensures jig is properly secured to material.
  • Swivelling Jaws provides even clamping pressure on out of square and uneven material.
  • Quick-Release Ergonomic Handle for fast clamping and releasing, with thumb screw adjustment for different material thicknesses.
  • Steel Construction for high clamping forces and durability.
1 £15.56
PH/COLL/95 - Pocket hole drill collar 9.5mm PH/COLL/95 010

Pocket hole drill collar.

    1 £5.52
    PH/DRILL/95 - Pocket hole Jig drill 9.5mm (3/8) PH/DRILL/95 009

    Pocket Hole Drill - 9.5mm diameter

    • Professional quality High Speed Steel drill bit compatible with the Trend Pocket Hole Jig, Pocket Hole Mini and Pocket Hole Pro.
    • Stepped design to drill perfect pockets complete with pilot hole to ensure each screw drives correctly.
    • 9.5mm diameter with straight shank, compatible with mains and battery drills with 10mm and upward chucks.
    • Sharp flutes for fast clean cutting and fast chip ejection for increased performance and long lifespan.
    • Ideal for use with hard and softwoods, ply, chipboard and MDF.
    1 £22.31
    SNAP/SQ/2A - Trend Snappy square No 2 bit 75mm OL SNAP/SQ/2A 011

    No 2 Robertson square drive bits.

      1 £8.08
      SNAP/SQ/2B - Trend Snappy square No 2 bit 150mm OL SNAP/SQ/2B 012

      Trend Snappy Robertson No2 Driver Bit - 150mm long

      • 150mm long bit ideal for use with Trend Pocket Hole screws and Pocket hole Jigs
      • Allows screws to be driven in easily at the correct angle when assembling pockethole joinery without the drill chuck catching the workpieces.
      • For use with Robertson screws; the ideal fixing for maximum driving performance without cam out issues.
      • 1/4in hex shank for a direct fit for impact drivers or all Trend Snappy chucks ensuring fast swapping between accessories.
      • Bit size of1/8in (3.2 mm) covers the most popular screw sizes.
      1 £9.73
      WP-AP/03 - Hex key short arm 3mm A/F WP-AP/03 015

      Replacement hex key.

        1 £1.42
        WP-PHJ/01 - Pocket Hole Jig main body WP-PHJ/01 001

        Main body for the PH/JIG.

          1 £64.50
          WP-PHJ/04 - Guide column nut PH/JIG WP-PHJ/04 004

          Guide column nut for PH/JIG.

            1 £4.68
            WP-PHJ/05 - M6 x 12mm dome socket machine screw WP-PHJ/05 005

            Machine screw dome M6 x 12mm for pocket hole jig.

              1 £1.01
              WP-PHJ/07 - Push-Pull clamp adjustable pad and stud assembly WP-PHJ/07 007

              Push-pull clamp adjustment pad and stud assembly for the PH/JIG.

                1 £8.30

                Videos

                Pocket Hole Jig & Mini Pocket Hole Jig Video

                Video demonstrating the functions of the Pocket Hole Jig and the Mini Pocket Hole Jig.

                Pocket Hole Jig Video

                Overview of the PH/JIG

                Pocket Hole Jig - How to make perfect right angle joints

                EXCLUSIVE DEMO by Christopher Hall, 'The Gentlemen Joiner'.

                Product Questions

                Yes, the jig can be used to create pockets for mitred frame corner joints. It may be necessary to tilt the pocket hole piece so that the hole is not perpendicular to the mitred edge, so as to prevent the pocket from breaking out of the top edge.
