H/JIG/C - Hinge jig Skeleton two part in case

Name: H/JIG/C - Hinge jig Skeleton two part in case
SKU: H/JIG/C
Price: 257.99 GBP
Availability: InStock

H/JIG/C

£257.99

£214.99

Add to Wish List

Details

The two part Contractor Hinge Jig is a portable fully adjustable block template set designed for recessing hinges in wooden doors & frames using a plunge router.

It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
Used on-site & in joinery shops to increase productivity with excellent results.
Fully adjustable apertures for fire door requirements and renovation work.
Can be used on both inside and outside doors, rebated frames and on maximum 25mm thick fixed stops.
Ideal for fitting a new door in an old frame.
No need for marking out in the conventional way.
Quick & simple to set-up as the hinge is used as the pattern.
Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
Use with a light duty plunge router with 1/4 inch collet.
Long reach router cutter required, 12mm diameter with 70mm overall length.
Adjustable edge guides with preset for hinge of 20mm, 25mm and 30mm
Unibase may be needed.
Patent No. GB2490139
T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.

Detail

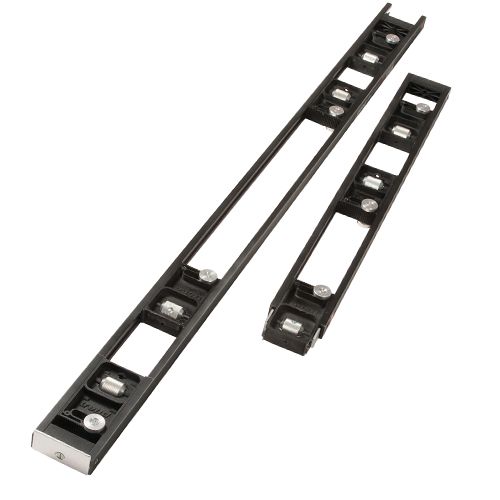

2-Part Skeleton Hinge Jig

A precision routing jig to recess square butt hinges in timber doors and frames. Delivers clean recesses and pinpoint accuracy with minimal set-up and without the need for marking out in the conventional way. Used with a light duty ¼” router, the jig can be used for new, renovation and Fire Door installations.

Adjustable Edge Guides

Adjustable Quick Release

Fire Door Compatibility

Lightweight Anodised Aluminium

Key Applications

Features

Adjustable Quick-Release Aperture Blocks are used to set the hinge position and length, and feature Trend’s tool-free, patented* thumb-turn locking mechanism for fast, accurate adjustments.

Adjustable Edge Guides are used to set the hinge leaf width and can be positioned using indexed locations (20, 25, and 30mm) or anywhere within the open channel, for non-standard widths up to 35mm.

Lightweight Anodised Aluminium Rails for optimum strength, durability, accuracy and a smooth router running surface.

Fire Door Compatibility allows the 2nd hinge to be positioned 20” from the top of the door.

Bradawl Attachment allows the jig to be quickly secured to doors and frames (included).

Aluminium End Plate allows the jig to fit both door and frame with minimal adjustment.

25mm Rail Depth allows jig to be used against fixed door stops up to 25mm thick.

2-Part Body for compact transportation.

Robust Carry Bag.

Details

Adjustable Quick-Release Aperture Blocks are used to set the hinge position and length, and feature Trend’s tool-free, patented* thumb-turn locking mechanism for fast, accurate adjustments.
Adjustable Edge Guides are used to set the hinge leaf width and can be positioned using indexed locations (20, 25, and 30mm) or anywhere within the open channel, for non-standard widths up to 35mm.
Lightweight Anodised Aluminium Rails for optimum strength, durability, accuracy and a smooth router running surface.
Fire Door Compatibility allows the 2nd hinge to be positioned 20” from the top of the door.
Bradawl Attachment allows the jig to be quickly secured to doors and frames (included).

Aluminium End Plate allows the jig to fit both door and frame with minimal adjustment.
25mm Rail Depth allows jig to be used against fixed door stops up to 25mm thick.
2-Part Body for compact transportation.
Robust Carry Bag.

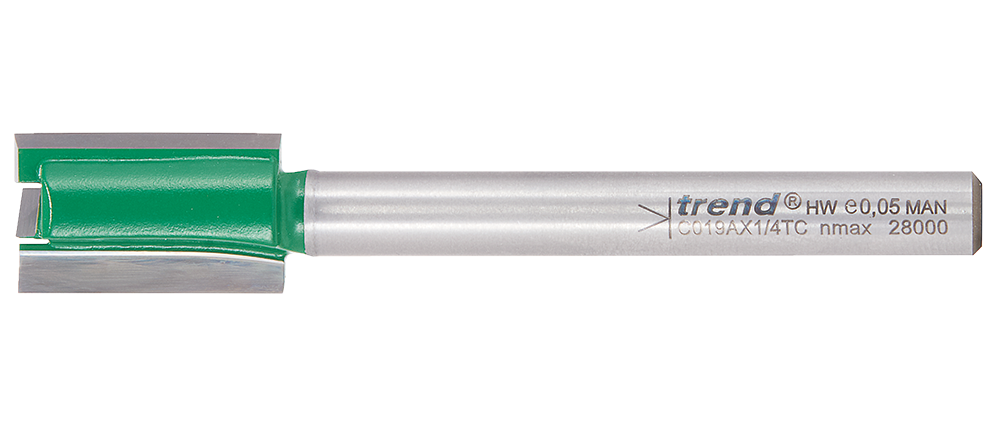

Requires: Plunge router (¼”/8mm collet), cutter (¼”/8mm shank x 12mm cut diameter x 70mm overall length) and corner chisel.
Includes: Guide bush (16mm diameter).

Featured Products

Spec

Hinge sizes

Length min.: 2 5/8" (67 mm)
Length max.: 5" (127 mm)
Width min.: 1/2" (12.7 mm)
Width max.: 1 3/8" (35 mm)
Width max. in 35mm fixed rebate: 23 mm
Width max. in 44mm fixed rebate: 32 mm

Door sizes possible

Height min.: 6' 5" (1956 mm)
Height max.: 2100 mm* (6' 10"*)
Thickness min.: 5/8" (16 mm)
Thickness max.: 2" (51 mm)
Edge stops thickness: 6 mm
Weight: 2.9 kg
Jig overall length: 1956 mm
Plate thickness: 3 mm
Fixed stop max. thickness: 25 mm**

* Please note for doors over 2040mm the bottom hinge will be higher than 9" up.

** Max. hinge leaf width 23mm (35mm doors)

Customer Review

Spares

Product Image	Product Ref	Diagram No	Description	Quantity Required	Price for 1
	GB160		Guide bush guides the router when using a template. Fits directly to Trend T3,T4,T5,T5 MK2, T9,T10 and T11, and some other light duty routers. Will fit other makes when used with GB/5, GB/PLATE or UNIBASE Sub-base.		£15.15
Not Available	WP-HJ/09B	019	Replacement bradawl only for the H/JIG/C. Short blade.	4	£7.27
	WP-HJ/C/01A	001A	Replacement one upper extrusion only for the H/JIG/C. Extrusion only, no blocks or fixings included.	2	£31.92
	WP-HJ/C/01B	001B	Replacement one lower short extrusion only for the H/JIG/C. Extrusion only, no blocks or fixings included.	2	£19.13
	WP-HJ/C/02	002	Replacement block for the H/JIG/C.	7	£7.07
	WP-HJ/C/04	004	Replacement through hole edge stop for the H/JIG/C.	7	£3.28
	WP-HJ/C/05	005	Replacement threaded edge stop for the H/JIG/C.	7	£3.28
	WP-HJ/C/06	006	Replacement locking knob knurled for H/JIG/C.	6	£4.00
	WP-HJ/C/07	007	Replacement locking knob knurled with holes for H/JIG/C.	1	£4.79
	WP-HJ/C/08	008	Replacement swivel end plate for the H/JIG/C.	1	£5.01
	WP-HJ/C/09	009	Replacement T bolt M6 x 31mm right hand thread H/JIG/C.	7	£3.20
	WP-HJ/C/10	010	Replacement T bolt M6 x 31mm left hand thread H/JIG/C.	7	£3.20
	WP-HJ/C/11	011	Replacement end cap for H/JIG/C.	1	£3.20
	WP-HJ/C/16	016	Replacement knob for H/JIG/C.	1	£3.20
	WP-HJ/C/17	017	Replacement O ring for H/JIG/C.	1	£0.82
	WP-HJ/C/SBK		A pair of sliding blocks complete with clamping knob and edge guides for the H/JIG/C. Allows extra aperture to be fitted to Skeleton Hinge Jig for quicker fire door hinge recessing.		£46.17
	WP-NUT/23	015	Replacement square nut.	1	£1.02
	WP-SCW/115	012	Replacement screw.	7	£1.02
	WP-SCW/116	014	Replacement screw.	8	£1.02
	WP-SCW/117	013	Replacement screw.	1	£1.02
	WP-SCW/13	021	Replacement machine screw.	2	£1.03

Videos & Downloads

Videos

Skeleton Hingejig Video

Demonstrates how to use the Skeleton Hinge Jig.

Lock Jig Video

Using the Lockjig to rout a door lock.

Instructions

H/JIG/C Two Part Skeleton Hinge Jig Instructions

Ref: MANU/HJ/C

Safety Sheets

Cutting Tools & Routing Safety Sheet

Ref: LEAF/HS/CUTT

Jig and Accessory Safety Points

Spares Diagrams

H/JIG/C Hinge Jig C Spares Diagram

Spare Parts Diagram

Test Reviews

Skeleton Hinge Jig Test

Magazine: Good Woodworking

FAQ

Product Questions

Which Hinge Jig works with a 3.5 inch hinge with .25 inch corner radius?

All of our jigs strait from the box will produce a 6mm radius, a 0.25 inch radius would be 6.35mm.

In the compatibility chart, it indicates you cannot use certain routers with the hinge jig, why?

This is just a recommendation because of the heavier weight of the router which makes if difficult to recess the top hinge on the door lining or frame.

Is the HINGE/JIG, H/JIG/A and H/JIG/C suitable for routing out 10mm radius round-ended hinges?

If you fit a GB240 guide-bush, which has a 24mm diameter and longer spigor) and use a 20mm diameter cutter e.g. Ref: TR20DX1/4TC then it will work because the offset between the cutter and the guide-bush still remains 2mm each side.

After recessing the hinges with the hinge jig is the job complete?

The corners need to be squared with a chisel because the router cutter leaves a radius. We offer a corner chisel ref. C/CHISEL which has a High Speed Blade for this purpose. The chisel is placed in the recess and hit with a hammer, this creates a square corner.
