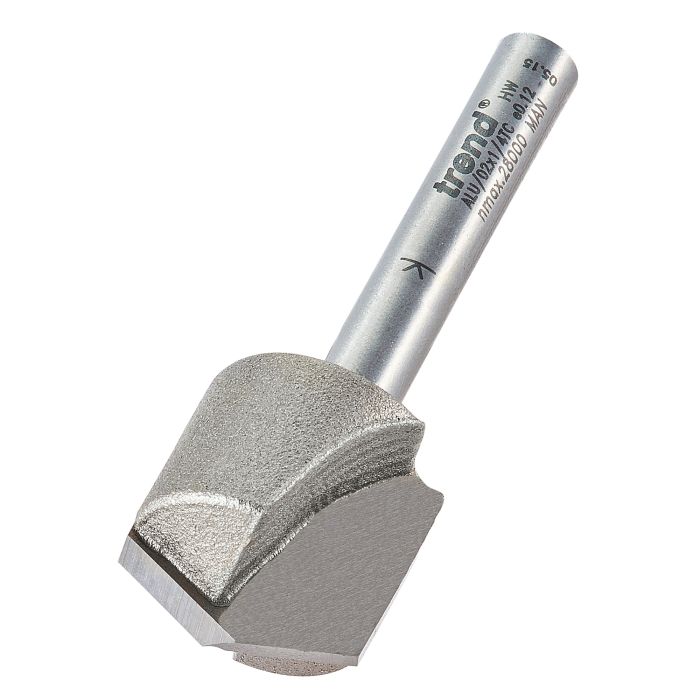

ALU/02X1/4TC - Alucobond 22.5 degree (135 degree) v groove x 18mm
ALU/02X1/4TC
Specially designed tools for aluminium composite cladding material such as Alucobond, Dibond which comprises an aluminium cover with polyethylene core.
- The v groove cutters rout into the cover and part of the core to allow folding of material by hand.
- Has a 135 degree included angle with 2mm flat at base and is used to create 45 degree fold.
- Use at 12000-15000 RPM, feed speed 400 - 600mm/min. depending on thickness and machine (CNC machine or hand). Cooling is not required.
- D1
- 18 mm
- C
- 13 mm
- OL
- 57 mm
- A
- 22.5 degrees
- Shank Diameter
- 1/4
