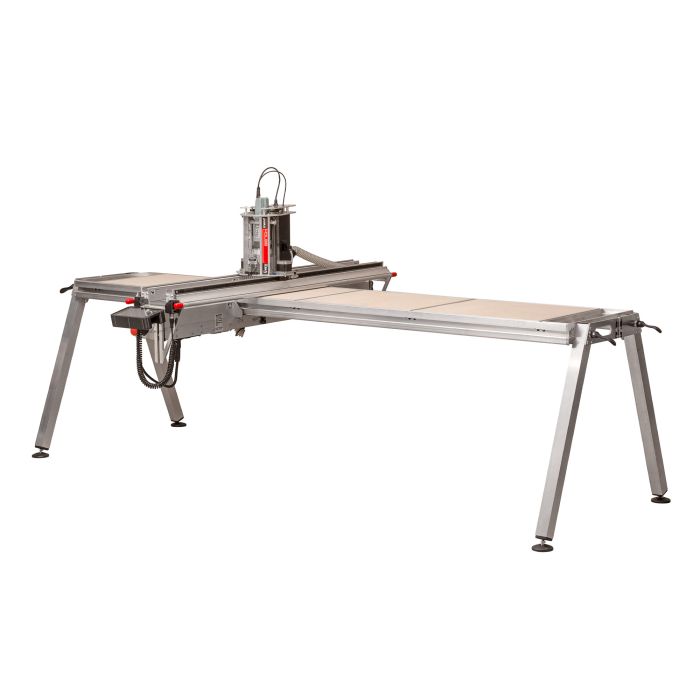

CNC/YETP/SB1 - Trend Yeti CNC Precision Pro SmartBench
CNC/YETP/SB1
Take precise machining to the jobsite.
- Easily transportable by van or car
- Precision Pro model with variable speed router
- Assembles in 3 minutes or less
- Full 4´ x 8´ panel machining
- Receive jobs via wi-fi or USB
- Colour touchpad handheld control unit
- Light compactable frame
- Can be stored in even the tightest of workshops/industrial units.
- Digital speed control
- Auto Tool Stop if spindle is in constant overload
- Real time spindle load display
- Laser X/Y Datum set point system
- UK, Ireland & Channel Islands sale only
VISIT THE TREND CNC SMARTBENCH ROADSHOW
LIVE SMARTBENCH DEMOS
16th February - 30th March 2023
THE WORLD'S FIRST INDUSTRIAL, PORTABLE, 3D CNC ROUTER
Available in full-sheet or half-sheet size
Intuitive Touch Screen Controls
Portable & Fast Setup
Autonomous Cutting
3 Axis Control
Wi-Fi/USB Connectivity
Dust Collection Safety Feature
The CNC SmartBench allows you to create and cut complex shapes with amazing accuracy and without the trial and error often needed, letting the machine bring the skill and the steady hand. Explore just a few capabilities of the CNC SmartBench below:
2500mm (Y) x 1250mm (X) or 1250mm (Y) x 1250mm (X) sheet size with a cutting height of 150mm (Z).
Assembles in 3 minutes or less.
Very accurate with a tolerance of 0.5mm.
Extraction system for clean operation.
Easy removal of router unit for cutter changes.
Automatic adjustment of cutter height.
Precision Pro model with variable speed router & feedback.
Simple touchscreen controls.
Wi-Fi/USB Connectivity for simple file transfer.
NEW YetiPilot constantly monitors spindle load and reacts to ever-changing mid-job variations, optimising jobs and resulting in improved job success.
NEW SC2 Spindle with advanced communications works in conjunction with YetiPilot, unlocking live load sensing, live speed & temperature feedback
NEW Job Recovery allows the user to restart the job from the point it was interrupted or cancelled.
NEW Big Foot Dust Shoe for more efficient dust extraction.
NEW 100mm Extraction Hose connects to Big Foot Dust Shoe.
NEW Console XL, 10.1" screen with a 32GB storage and 4GB RAM.
- The Precision Pro, Pro Plus & Pro X models have a variable-speed router and digital speed control.
- Full 2500mm x 1250mm (8' x 4') panel machining can be achieved on the Smartbench, with a cutting height of almost 150mm (6").
- The Smartbench Compact can cut a 1250mm x 1250mm (4' x 4') sheet with a cutting height of almost 150mm (6").
- Longer items can be tiled in the software allowing you to machine products that are longer than the Y-Axis.
- With a 3-minute setup time, the SmartBench revolutionizes the industry by allowing you to take precise machining to the job site.
- Featuring a colour touchpad handheld control unit that can receive jobs/cutting instructions via wi-fi or USB drive.
- A light compactable frame which is easily transportable by van or car and can be stored in even the tightest of workshops/industrial units.
- With Auto Tool Stop if the spindle is in constant overload,
real-time spindle load display and a laser X/Y Datum set point system, everything has been reimagined in designing this industrial-grade, user-friendly smart router. - The machine comes dust collection ready and can be used with dust extractors with a 38mm (outside diameter) hose.
Precision Pro + Exclusive Details
All Features of the Precision Pro Version and
- YetiPilot - Constantly monitors spindle load and reacts to ever-changing mid-job variations, optimising jobs and resulting in improved job success.
- SC2 Spindle - Advance communications working in conjunction with YetiPilot.
- Console 2 - With a quicker processor, more memory and more storage.
- Job Recovery - Allows the user to restart the job from the point it was interrupted or cancelled.
Precision Pro X Exclusive Details
All Features of the Precision Pro & Pro + Versions and
- Bigfoot - 100mm dust extraction connection.
- Console XL - 10.1" screen with a 32GB storage and 4GB RAM.
Sign up for a FREE Online or In-person (Trend Head Office) demonstration of the Yeti Trend CNC Smartbench.
Every demonstration is based on YOUR requirements!
You can work with specific materials or bring your own designs, so you can see first-hand, the capabilities of the SmartBench and find out if it suits your type of work.
We will also run through all the CNC SmartBench basic features including: The machine, Software, Tooling & Extraction.
The demonstration will be run by John Tigg, Trend CNC Manager, who has over 30 years of experience using CNC machines.
Watch our webinar on the feature packed CNC SmartBench
You will learn about
• How easy the SmartBench is to use.
• The main parts/features of the SmartBench.
• What you should look for if you are wanting to get into CNC.
• How quickly and easily the SmartBench can be set up.
• How to use the software.
• How to set the machine up for cutting a simple design.
Take CNC routing out of the factory and into your workshop with SmartBench, the patented large-format, CNC router from YetiTool & Trend. The world's first industrial, portable, 3D CNC router
Yeti Trend CNC SmartBench
Precision Pro
The standard machine is equipped with features such as precision routing, autonomous cutting, touchscreen functionality, and portable & rapid setup.
Available in full sheet & half-sheet, with dust extractor & software or machine only.
Precision Pro +
An upgraded machine including all the features of the standard model along with AI capabilities using YetiPilot, an enhanced spindle, and Job recovery functionality.
Available in full sheet & half-sheet, with dust extractor & software or machine only.
Precision Pro X
A high-end machine incorporating all the features found in both the standard and Pro + models, along with an enhanced dust shoe allowing 100mm hose and an XL console.
Available in full sheet, machine only. Software sold separately.

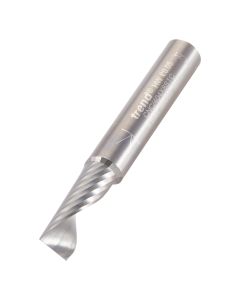

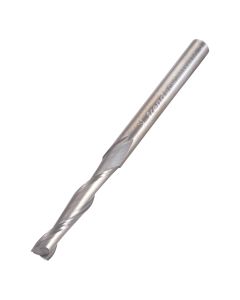

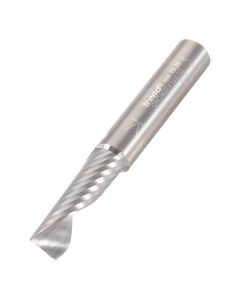

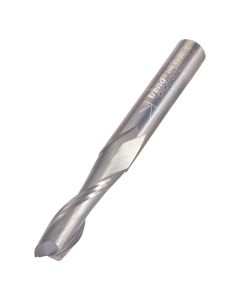

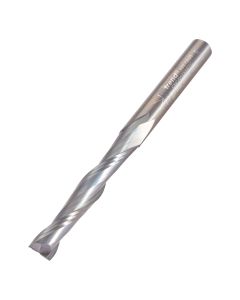

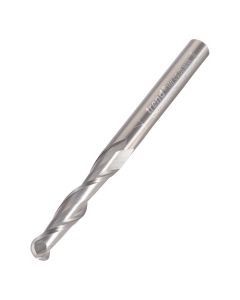

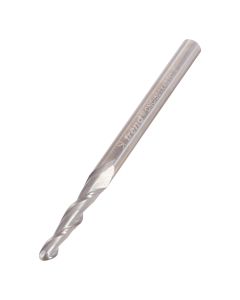

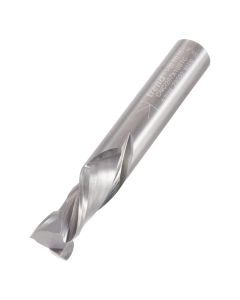

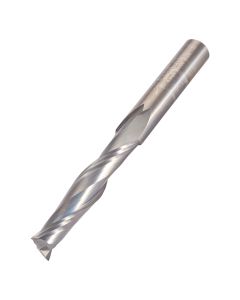

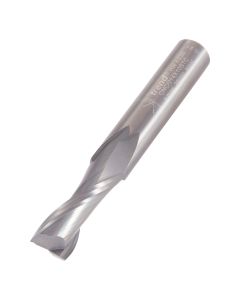

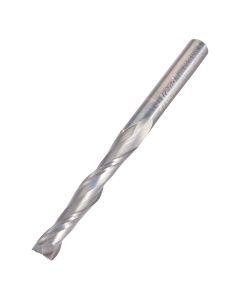

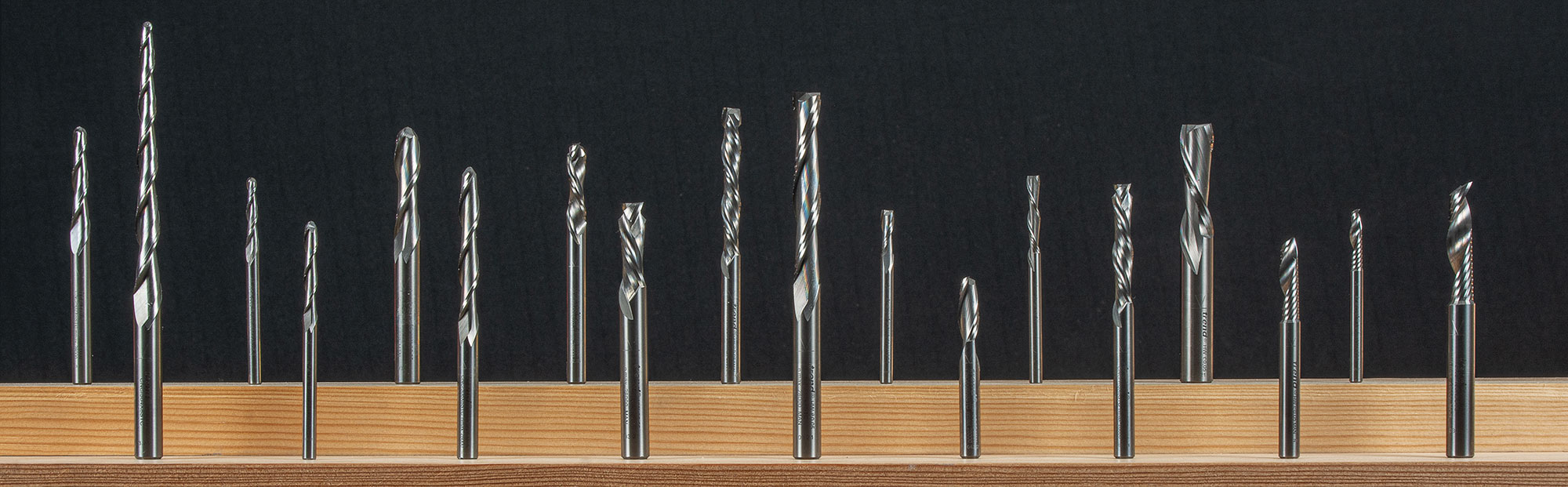

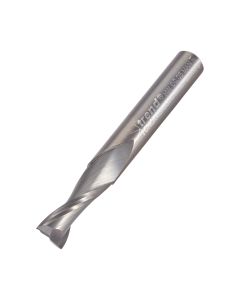

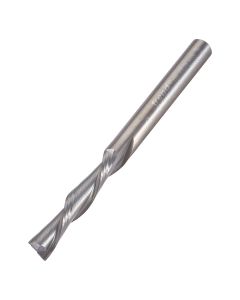

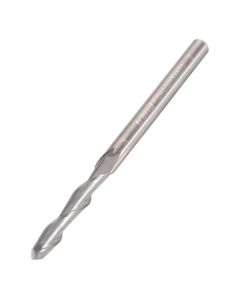

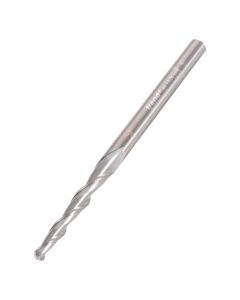

Explore our Extensive Range of CNC Router Cutters
Other Featured Products
See how the CNC SmartBench can help renovate classic cars
Discover more about Trend CNC Machines
CNC Mini 1E Information
CNC Products
CNC Machine Videos
The Trend CNC SmartBench has just become a whole lot smarter with the addition of the CNC Stylus Head.

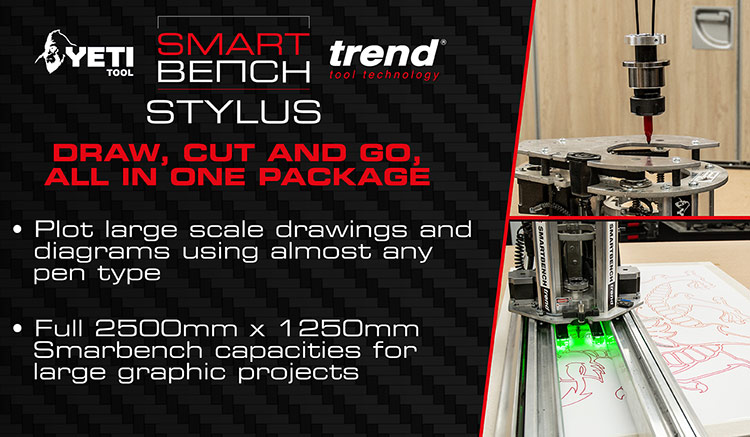

Trend CNC SmartBench Stylus
Vinyl Cutting and Line Drawing Module for The Trend CNC SmartBench.
Bringing new functionality to the game-changing SmartBench portable CNC Router

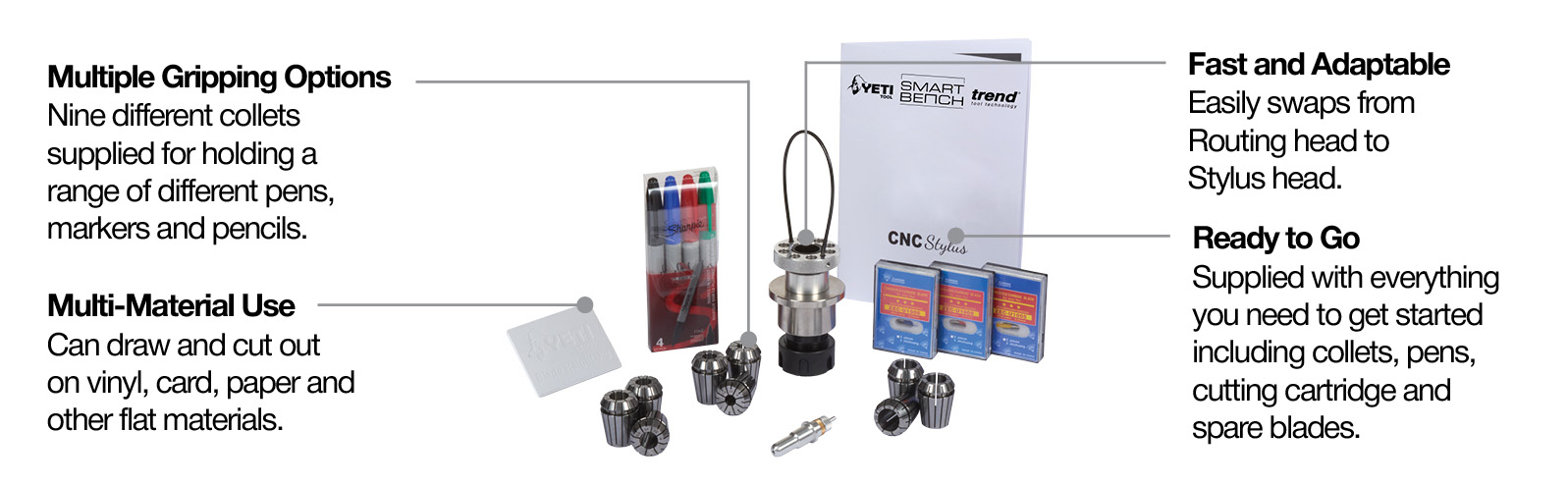

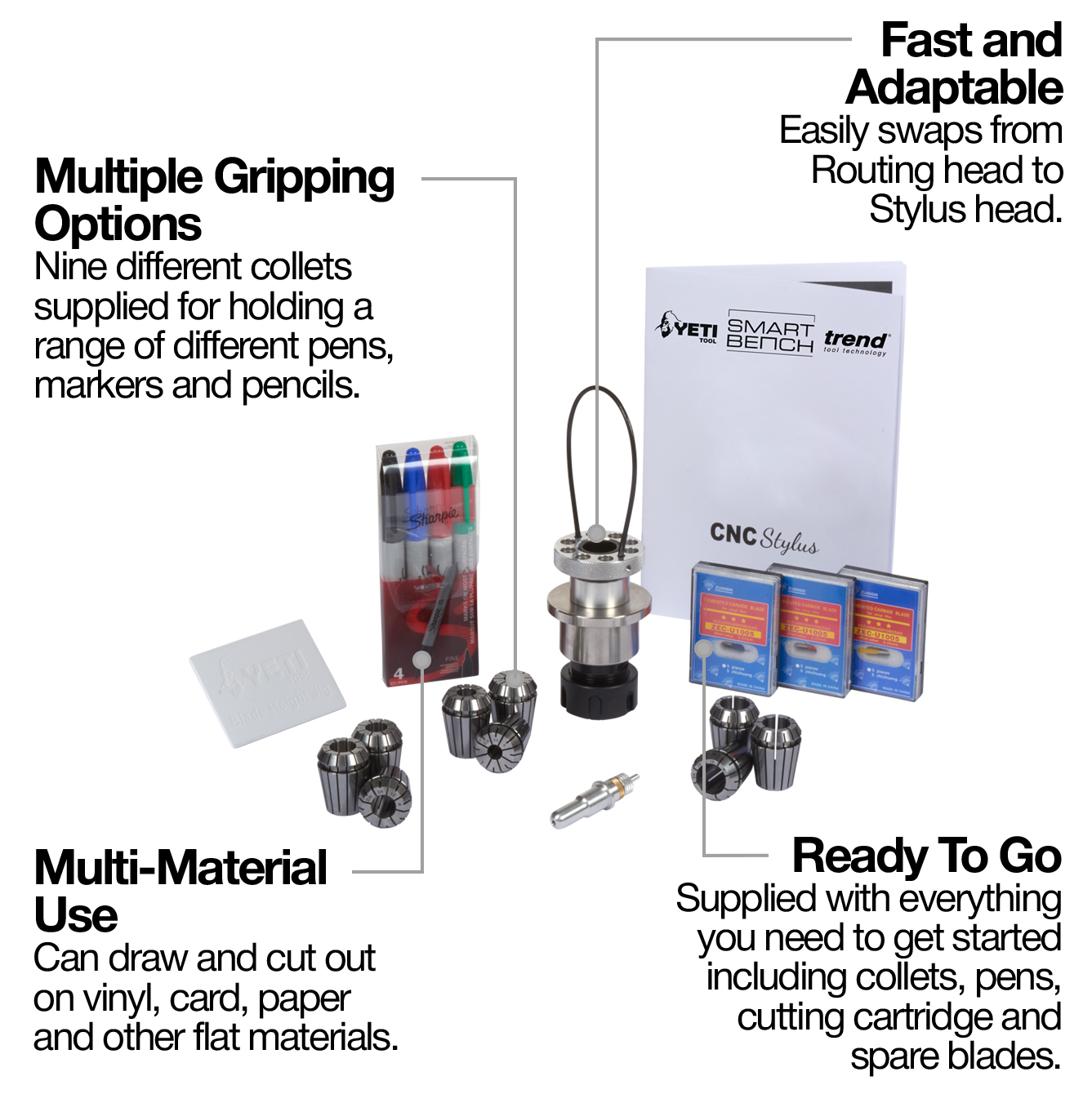

Features
As adaptable as the end-user, perfect for drawing, designing, copying and cutting on vinyl, card, paper and other flat materials.
Easily swaps from Routing head to Stylus head and includes nine different collets for holding a range of different pens, markers and pencils.
The stylus has a 0.5mm (500Micron) thick cutting capacity and knives are supplied with 30, 45 and 60 degree cutting angles for cutting different materials cleanly.
Expands the capabilities of the SmartBench and works to the full 2500mm x 1250mm bed capacity.
Stylus maintains the same drawing or cutting weight throughout the application for consistent results.
Supplied with everything you need to get started including collets, pens, cutting cartridge and spare blades.
Details
- Large scale CNC drawing and Vinyl Cutting functionality.
- Suitable for multi-material use, can draw and cut out on vinyl, card, paper and other flat materials.
- 0.5mm (500Micron) thick cutting capacity, perfect for thicker vinyls.Large scale capacities, works to the full 2500mm x 1250mm bed capacity of the SmartBench.
- Opens up new areas of potential and expands the capabilities of the SmartBench into additional new markets.
- Supplied with everything you need to get started including collets, pens, cutting cartridge and spare blades.
- As adaptable as the end-user, perfect for drawing, designing, copying and cutting.
- Fast and adaptable, you can easily swap from routing head to stylus head.
- Comes with multiple gripping options, nine different collets supplied for holding a range of different pens, markers and pencils.
- High quality precision machined aluminium body ensures precision and solid, stable control on all materials.
- Constant pressure design means the stylus maintains the same drawing or cutting weight throughout the application for consistent results.
- Different knives supplied with 30, 45 and 60 degree cutting angles for cutting different materials cleanly.
If you don't know about the CNC SmartBench already,
Click to book a demo with one of our CNC experts
Movement
- Max.movement X-axis
- 1265 mm
- Max.speed X
- 6 m/m
- Max.movement Y-axis
- 2515 mm
- Max.speed Y
- 6 m/m
- Max.movement Z-axis
- 152 mm
- Max.speed Z
- 2 m/m
- Max. sheet cut size
- 2500 x 1250 mm
- Max. depth of material
- 152 mm
- Spindle collet
- ER16 Max. shank 10 mm
- Component tolerance
- +/- 0.5 mm
- Spindle speed
- 5000-24000 rpm
Dimensions
- Machine size length
- 2680 mm
- Machine size width
- 1650 mm
- Machine size height
- 1350 mm
- Weight
- 105 kg
- End of life
- See below for Environmental Policy link
no spare products
Videos
Trend Yeti CNC
Trend Yeti Smartbench CNC overview.
Trend Yeti CNC First Thoughts
Tom at Timber Club unpacks and asembles the Trend Yeti CNC Smartbench and gives his first thoughts on it.
Trend CNC Yeti - Timber Club - The Way I Work
Tom from the Timber Club shows the way he works, showing the benefits of the Trend CNC Yeti.
Product Questions
All Smartbench variants will work with Macbooks however they will need to use https://www.parallels.com/uk/products/desktop/ or a similar product to use Smart Transfer and some CAD apps like Vectric.
The Z-axis finds its home position with the limit switch hidden underneath the top of the spindle cage please see the attached photo for reference:
Once a tool bit has been loaded into the spindle the user will then define the distance between the bottom of the tool bit and the material base using the Z0 function on the CAD/CAM app and the probe plate.
