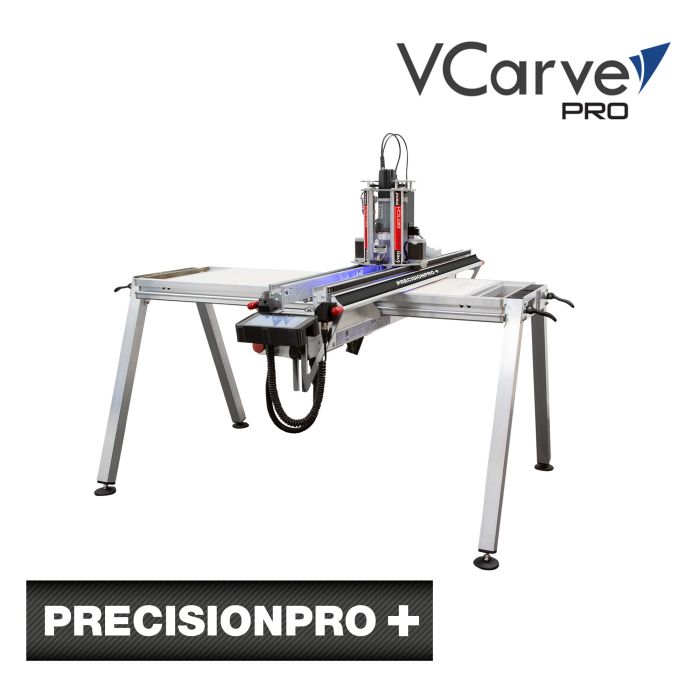

CNC/YPPP/SBMS - Trend Yeti CNC Precision Pro Mini SmartBench c/w VCarve software
CNC/YPPP/SBMS
Take precise machining to the jobsite.
- Easily transportable by van or car
- Precision Pro model with variable speed router
- Assembles in 3 minutes or less
- YetiPilot constantly monitors spindle load and reacts to ever-changing mid-job variations, optimising jobs and resulting in improved job success.
- Receive jobs via wi-fi or USB
- Console 2, with a quicker processor, more memory and more storage
- Light compactable frame
- Can be stored in even the tightest of workshops/industrial units.
- Job Recovery allows the user to restart the job from the point it was interrupted or cancelled.
- Auto Tool Stop if spindle is in constant overload
- Real time spindle load display
- Laser X/Y Datum set point system
- UK, Ireland & Channel Islands sale only
- new features of new CNC/Yeti Pro Plus
Movement
- Max.movement X-axis
- 1265 mm
- Max.speed X
- 6 m/m
- Max.movement Y-axis
- 1290mm
- Max.speed Y
- 6 m/m
- Max.movement Z-axis
- 152 mm
- Max.speed Z
- 2 m/m
- Max. sheet cut size
- 1250mm x 1250mm
- Max. depth of material
- 152 mm
- Spindle collet
- ER16 Max. shank 10 mm
- Component tolerance
- +/- 0.5 mm
- Spindle speed
- 5000-24000 rpm
Dimensions
- Machine size length
- 1635mm
- Machine size width
- 1650mm
- Machine size height
- 1350mm
- Weight
- End of life
- See below for Environmental Policy link
no spare products
Videos
Trend Yeti CNC First Thoughts
Tom at Timber Club unpacks and asembles the Trend Yeti CNC Smartbench and gives his first thoughts on it.
