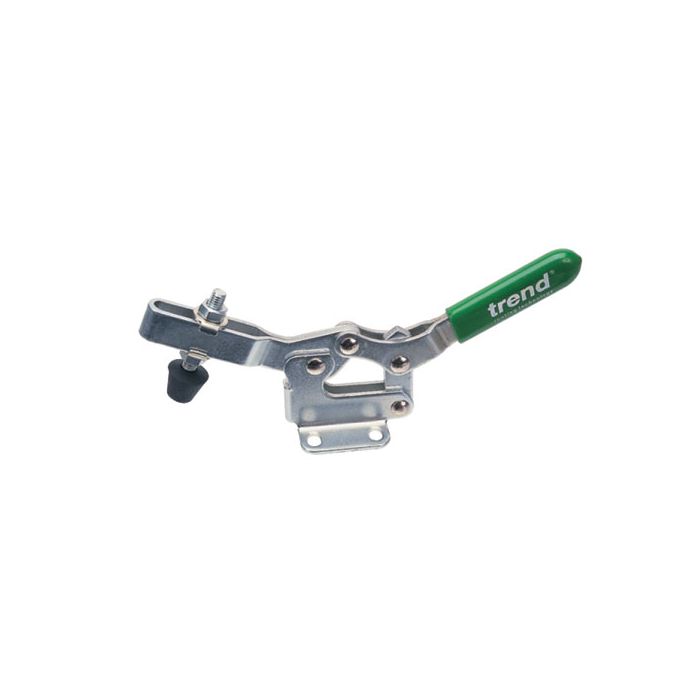

CR/H150 - Toggle clamp 150 kg Force
CR/H150
Economy range clamp, ideal for securing workpiece either onto jigs or to the surface of the machine.
- Clamping force
- 150 kg
- E
- 50 mm
- A
- 160 mm
- B
- 53 mm
- Fixing hole spacing (length)
- 26.5 mm centre to centre
- Fixing hole spacing (width)
- 25 mm centre to centre
- Fixing hole width
- 8.5 mm
- Bar throat height
- 23 mm
- Max. thickness to pad
- 3 mm
- Spindle thread height adjustment
- 10 mm
- Pad subflush height adjustment
- Minus 5 mm
