Router Cutters FAQs

15mm.

The shank length is 63mm, the overall length is 115mm.

The radius is 6.35mm.

The overall length of a 5/53X1/2TC is 103mm.

Total cutting height is 35mm.

A B63B will fit both cutters.

B35C is the bearing required.

It is a cutter for cutting circular hinges. Trend offer the 104, 105 & 421 groups for this purpose.

The part number is ref SPACER/8.

The replacement arbor is ref 33/30 on either a 8mm or 1/2 shank diameter.

The bearing is part no WP-RBT/CUT/A the circlip is part no WP-RBT/CUT/B

To convert the PDS set into a tongue and groove cutter set the following are required SP-34/74TC, SPACER/8

The following cutters can be used with the DE6252 multi-functional dovetail jig.|Ref. 31/22X1/4TC for small template DE6254.|Ref. 31/02X1/4HSS for standard template supplied with DE6252. Cutters L120X1/4TC and 31/2X1/4TC can also be used.|Ref. 31/20X8MMTC for large dovetail template DE6253.|Ref. 61/06, 61/08 and 61/01X1/4TC for dowel template DE6256.|Ref. 3/40LX1/4TC for 8mm finger template DE6255.

The cutter is 3/76X1/4TC or C021AX1/4TC.

Using five cutters the minimum material thickness is 31mm, and maximum material thickness is 36mm. For less cutters consult the catalogue or cutter instructions.

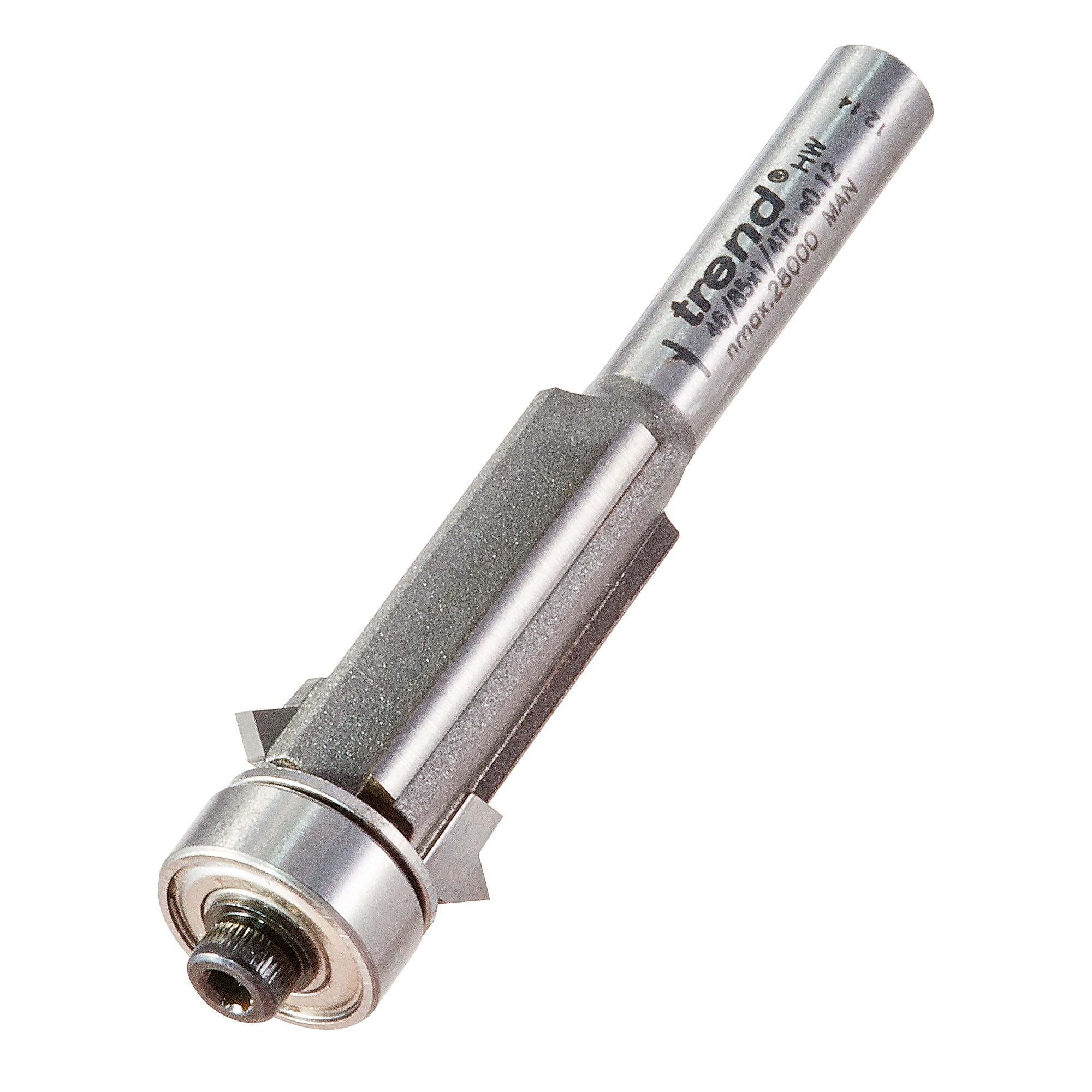

A good way of hiding the joint is to hi-lite it. A  V groove can be machined to disguise the joint by using the 46/85X1/4TC. The cutter can also trim at the same time.

We offer an extra long two flute router cutter ref 3/86X1/2TC that has a 75mm cut length and 133mm overall length for use with the lightweight honeycomb worktops. The tool must only be used in a professional router with an 80mm plunge and suitable one-piece multi-slit collet fitted to ensure safe retraction into the router base.

We offer an extra long two flute router cutter ref TR44Dx1/2TC that has a 70mm cut length and 115mm overall length for use with the lightweight honeycomb worktops. The tool must only be used in a professional router with an 80mm plunge and suitable one-piece multi-slit collet fitted to ensure safe retraction into the router base.

The 46/39LX1/2TC rebate cutter has been introduced for this purpose. The cutter shank is 60mm long. The tool is supplied with four ball bearings of different diameters for different rebate sizes.

You can not re-sharpen the 10/99 because the dimensions for the tongue and groove will change making them incompatible, however, the pocket whetstones if used will help to keep a keen edge on the carbide.

A rule joint can be cut with either the OCTACUT sets or something like the 7/5X1/4TC and 6/5X1/4TC cutters.

The part number is ANUT/46/82.

We now offer a 60 degrees V-groove with a 1/4 shank (ref 11/20X1/4TC) and also a larger diameter 45 degrees V-groove which has a 19.1mm diameter by 1/2 shank (ref 11/41X1/2TC).

The reference is SPACER/8.

The cutter required is trend ref 36/19X1/4TC.

The length is 6.35mm.

The cutter that will give a fine finish on both veneers is either the 14/1x1/2TC or 14/2x1/2TC, up and down shears.

The holes are 6mm and 24mm between centre.

 Yes, B16B with a diameter of 5/8 and B19B with a diameter of 3/4 both bearings have a bore size of 1/8.

The overall length of a 3/83X1/2TC is 108mm

No, due to safety reasons, 63mm cut depth and 115mm overall length is all that is available e.g. 3/75X1/2TC, TR37X1/2TC, C172X1/2TC.

Protection times are 10mm = 1/2 hour (30 mins), 15mm = 3/4 hour (45 mins), 20mm = 1 hour (60 mins).

The overall length is 109mm.

34/15TC.

The overall length of a 3/82X1/2TC is 79mm.

The grub screw size is M4x6mm.

The shank length is 57mm the overall length is 108mm.

Reference SL/GG.

The overall length is 99mm.

To work from the face of the door use cutter 346X1/2TC, or if you want to work on the edge of the door use cutter 3/6X1/4TC.

The part number is ref B/WASH/14.

The overall length of a 3/83MX1/2TC is 84mm.
