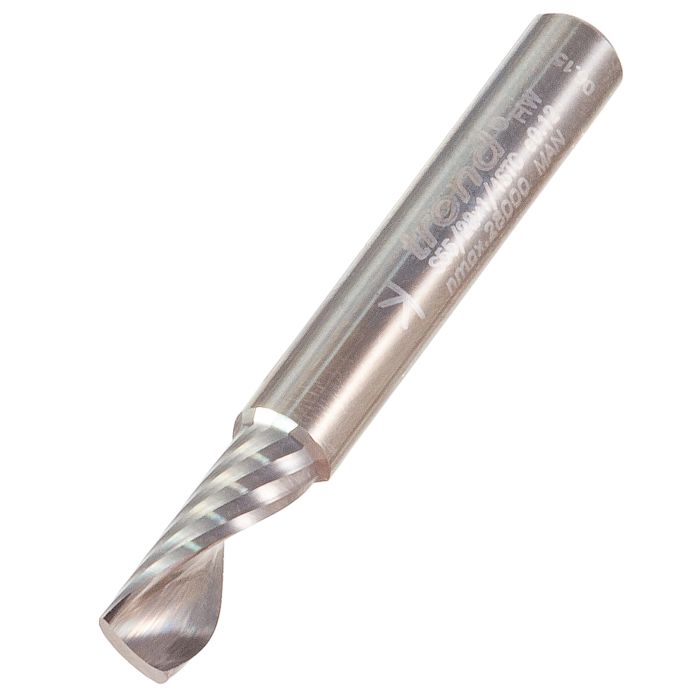

S55/22X1/4STC - Aluminium single flute upcut spiral 6.3x15.9mm
S55/22X1/4STC
Special high grade sub-micrograin carbide with very high tolerance grinding for smooth clean cut in aluminium.
- Single O flute design for fast cutting. Increased feed rates allowing for more linear metres in less time.
- Super high polished cutting edge with unique mirror finish, resulting in clean cuts, less chance for chip re-welding, effortless chip removal, a superior finish and a longer tool life.
- Downcut for better clamping when machining small workpieces and improved finish on the tops of the board.
- For use on routers and CNC routers.
- Strongly recommended that a lubricant or coolant is used to prolong tool life.
- Upcut spiral can be used to plunge cut. Downcut not recommended for plunge cutting unless ramped into workpiece.
- Eject chips up or down depending on tool used.
- Designed for aluminium, brass and copper and other non ferrous metals.
- Can be used on Alupanel and Dibond.
- D1
- 1/4 inches
- D1
- 6.3 mm
- C
- 5/8 inches
- C
- 15.9 mm
- OL
- 51 mm
- Shank Diameter
- 1/4
- Recommended speed
- 12,000-18,000 rpm
